Adjustable Grid Downlights – Single, Double & Triple Options for Mains GU10

White, black or white outside with black interior

Offers no protection from splashed or sprayed waterClass 2 – This fitting is double insulated and does not require an earth.Yes, this product is dimmable - See the specifications tab for more detailsBulbs Not Included

Kelvin Chart

Product Ref: 41151

From £13.15 inc VAT

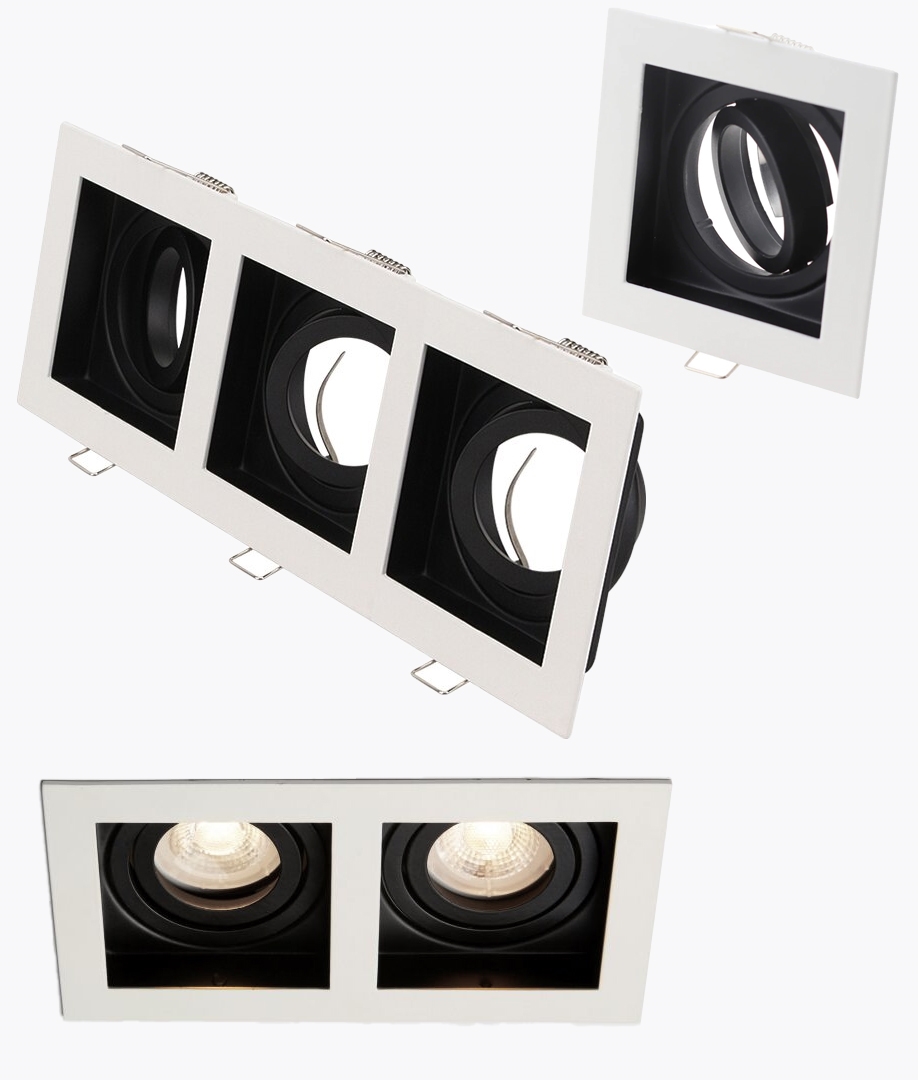

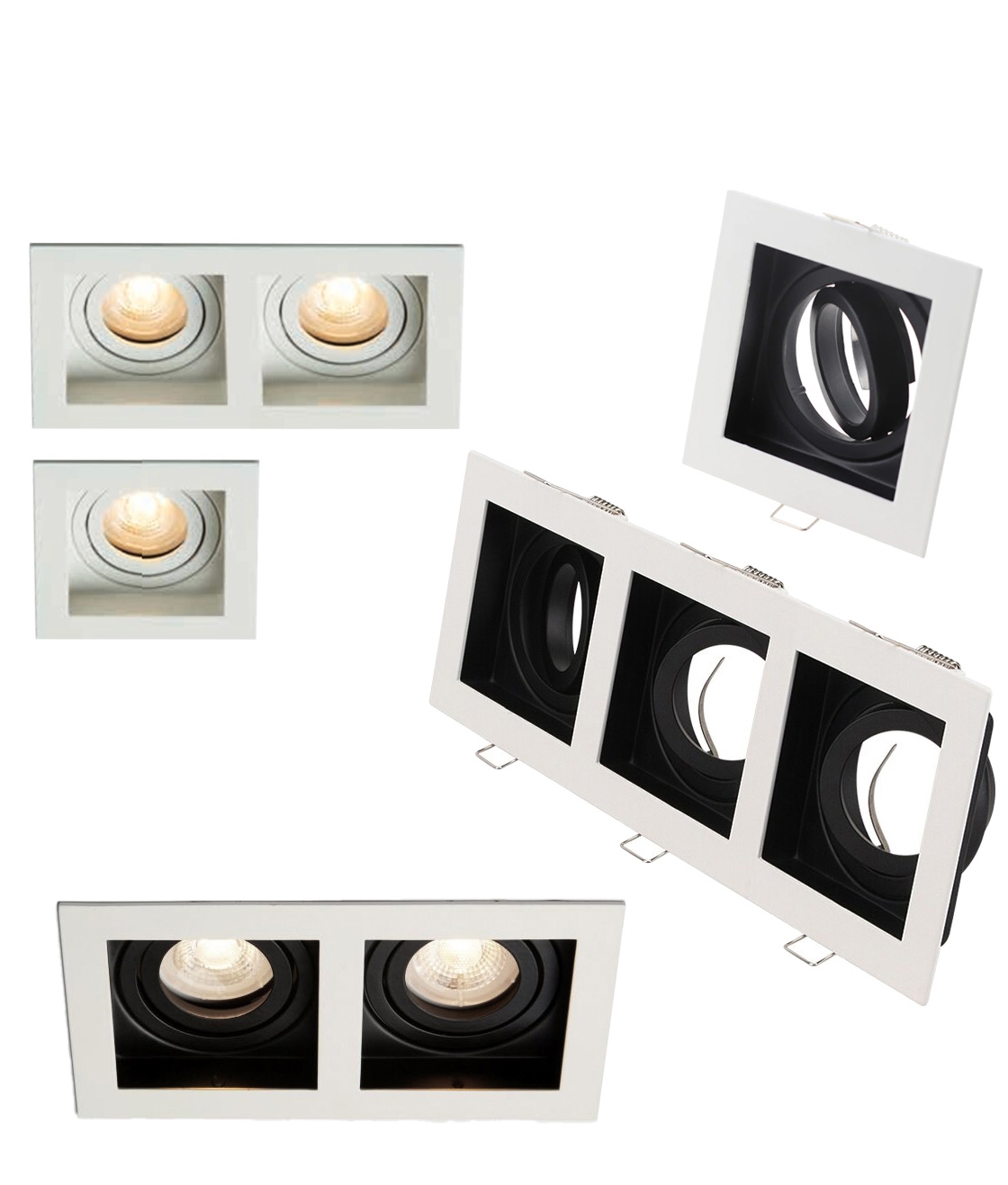

Adjustable grid downlights, sometimes called modular box downlights, provide a versatile recessed lighting solution for homes, offices, shops, and galleries. Each fitting houses one, two, or three mains-voltage GU10 lamps within a square or rectangular frame, allowing a consistent appearance across different room layouts.

The design combines clean architectural styling with practical flexibility. Each lamp holder can rotate a full 360 degrees and tilt by 15 degrees, giving precise control over where the light falls. This makes the fittings equally effective for accent lighting, task lighting, or providing comfortable general illumination.

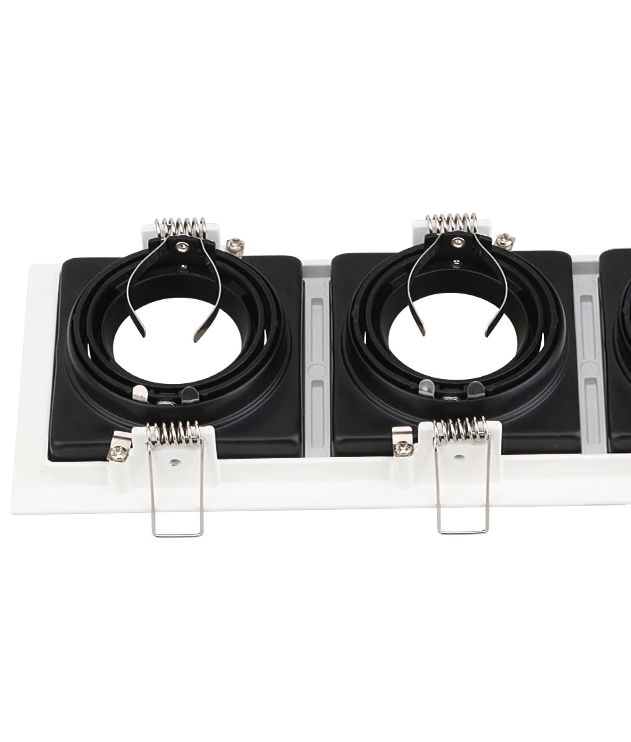

Available in an all-white finish or with a contrasting black interior, these grid downlights suit both residential and commercial interiors. Manufactured from die-cast aluminium, they are lightweight yet durable, with an inner lamp ring that pulls down to allow easy lamp replacement from below the ceiling.

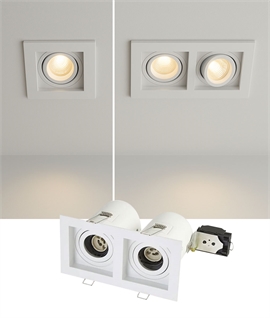

Because the fittings are designed for mains GU10 LED lamps, no additional driver is required. They are Class II (double insulated) and IP20 rated, making them suitable for dry indoor locations. For projects requiring additional fire protection, a fire hood can be fitted where needed. Scroll down for the fire-rated version of these lights


Key Features

Each adjustable grid downlight offers reliable performance with straightforward installation. The single module measures 100mm square with a 92mm square cut-out. The double module is 100 × 180mm with a 92 × 171mm cut-out, while the triple module measures 100 × 270mm with a 92 × 250mm cut-out. All versions require a ceiling void depth of approximately 92mm to accommodate the housing.

The lamp holders are designed to direct light where it is most effective. Tilt adjustment of 15 degrees and full 360-degree rotation mean they can highlight artwork, merchandise, or surfaces while maintaining an even distribution of light across a room.

These fittings are finished to a high standard in die-cast aluminium and offered in two styles: all-white for a discreet ceiling appearance, or white with a black interior for a sharper contrast. Each lamp is secured by a removable inner ring, so lamps can be replaced quickly without disturbing the installation.


Specifications

  • Lamp type: GU10 mains LED (lamps not included)

  • Maximum lamp wattage: up to 10W LED per lamp

  • Adjustment: 360° rotation, 15° tilt

  • Body material: die-cast aluminium

  • Insulation class: Class II, double insulated

  • IP rating: IP20 (indoor use only)

  • Finishes available: white, or white with black interior

  • Sizes and cut-outs:

    • Single: 100 × 100mm, cut-out 92 × 92mm

    • Double: 100 × 180mm, cut-out 92 × 171mm

    • Triple: 100 × 270mm, cut-out 92 × 250mm

  • Void depth required: approx. 92mm

Availability: Typically dispatched in 2-4 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
Matt White
TSXDLGRID1WW
Single White Adjustable Grid Downlights for GU10 bulbs
£13.15
£10.96 exc VAT
TSXDLGRID2WW
Twin White Adjustable Grid Downlights for GU10 bulbs
£23.25
£19.38 exc VAT
Matt Black
TSXDLGRID1BB
Single Black Adjustable Grid Downlights for GU10 bulbs
£13.15
£10.96 exc VAT
TSXDLGRID2BB
Twin White Adjustable Grid Downlights for GU10 bulbs
£23.25
£19.38 exc VAT
TSXDLGRID3BB
Limited stocks remain
Triple White Adjustable Grid Downlights for GU10 bulbs
£25.00
£20.83 exc VAT
White Bezel with Black Insert
TSXDLGRID1WB
Single Two-Tone Adjustable Grid Downlights for GU10 bulbs
£13.15
£10.96 exc VAT
TSXDLGRID2WB
Twin Two-Tone Adjustable Grid Downlights for GU10 bulbs
£23.25
£19.38 exc VAT
TSDLGRID3WB
Limited stocks remain
Triple Two-Tone Adjustable Grid Downlights for GU10 bulbs
£25.00
£20.83 exc VAT
