350mA 6w LED Power Supply - 4 Way Port

350mA Constant Current 24v LED Driver

Offers no protection from splashed or sprayed waterClass 2 – This fitting is double insulated and does not require an earth.

Product Ref: 5550

£12.73 inc VAT

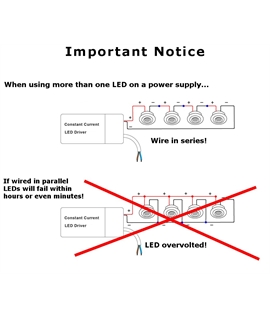

LED Driver 6w 350mA For the connection of up to 3 x 1.8 watt power LEDs. Supplied with distribution block for up to four fittings.

Requires hard wired connection.

Cable lengths between PSU and JB box: 140mm into PSU 2000m.

  • With distribution block for high output LED fittings
  • Pre-wired mains and 24v cables
  • Auto reset with short circuit and overload protection
Lamp Type
Part L Compliant LuminaireNo
Max Wattage6w
Width35mm
Length70mm
Depth/Projection20mm
Wiring DetailsClass 2 - Double Insulated - Requires no Earth Connection
IP RatingIP20
Availability: Typically dispatched in 2-4 days
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
JGDRV246WJB4
6w 350mA LED Power Supply
£12.73
£10.61 exc VAT

Related Products

320mA 3w LED Power Supply

320mA 3w LED Power Supply


£19.87
320ma Constant Current LED Driver
350mA LED Power Supply with Ports - Various Sizes

350mA LED Power Supply with Ports - Various Sizes

4 Products
£12.00
350ma Constant Current LED Driver
350mA 1-9w LED Power Supply

350mA 1-9w LED Power Supply


£20.16
350ma Constant Current LED Driver

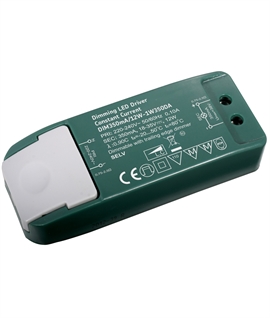

12w 350mA LED Dimmable Power Supply12w 350mA LED Dimmable Power Supply
