12w Max 300mA Constant Current LED driver - Dimmable

Name: 12w Max 300mA Constant Current LED driver - Dimmable
Brand: Lighting Styles
SKU: 62877
Price: 23 GBP
Availability: InStock
Rating: 8 (1 reviews)

Model Number: TKP-LD12B30C Input: 220-240V~ 50/60Hz 0.09A Output: 28-40Vdc 300mA, Max 50Vdc, 12W

Offers no protection from splashed or sprayed water

Class 2 – This fitting is double insulated and does not require an earth.

Yes, this product is dimmable - See the specifications tab for more details

Product Ref: 62877

£23.00 inc VAT

Description More Details Q & A's

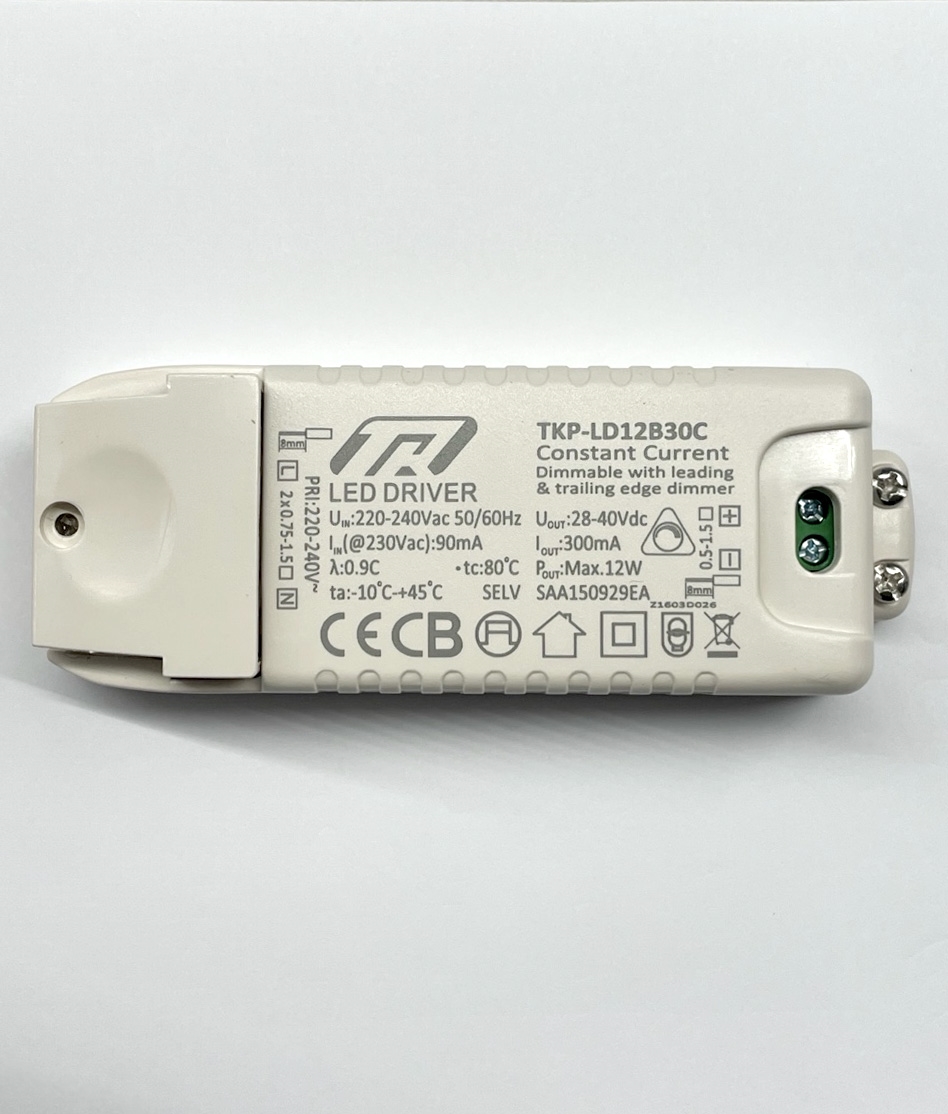

TKP-LD12B30C Input: 220-240V~ 50/60Hz 0.09A Output: 28-40Vdc 300mA, Max 50Vdc, 12w

A 300mA driver for LED PCBs, arrays and downlights.

118mm long, 50mm wide and 33mm deep. with terminal blocks for incoing mains and outgoing secondary DC connectiosn.

This is a dimmable driver so will dim when used on a leading edge or good quality Triac dimmer.

Availability: IN STOCK - Typically dispatched within 24 hours

We offer free delivery on orders over £80 to most UK Mainland Addresses

Lamp Type
Dimmable?	Yes - on standard dimmer (TRIAC or leading edge)
Wiring Details	Class 2 - Double Insulated - Requires no Earth Connection
IP Rating	IP20
