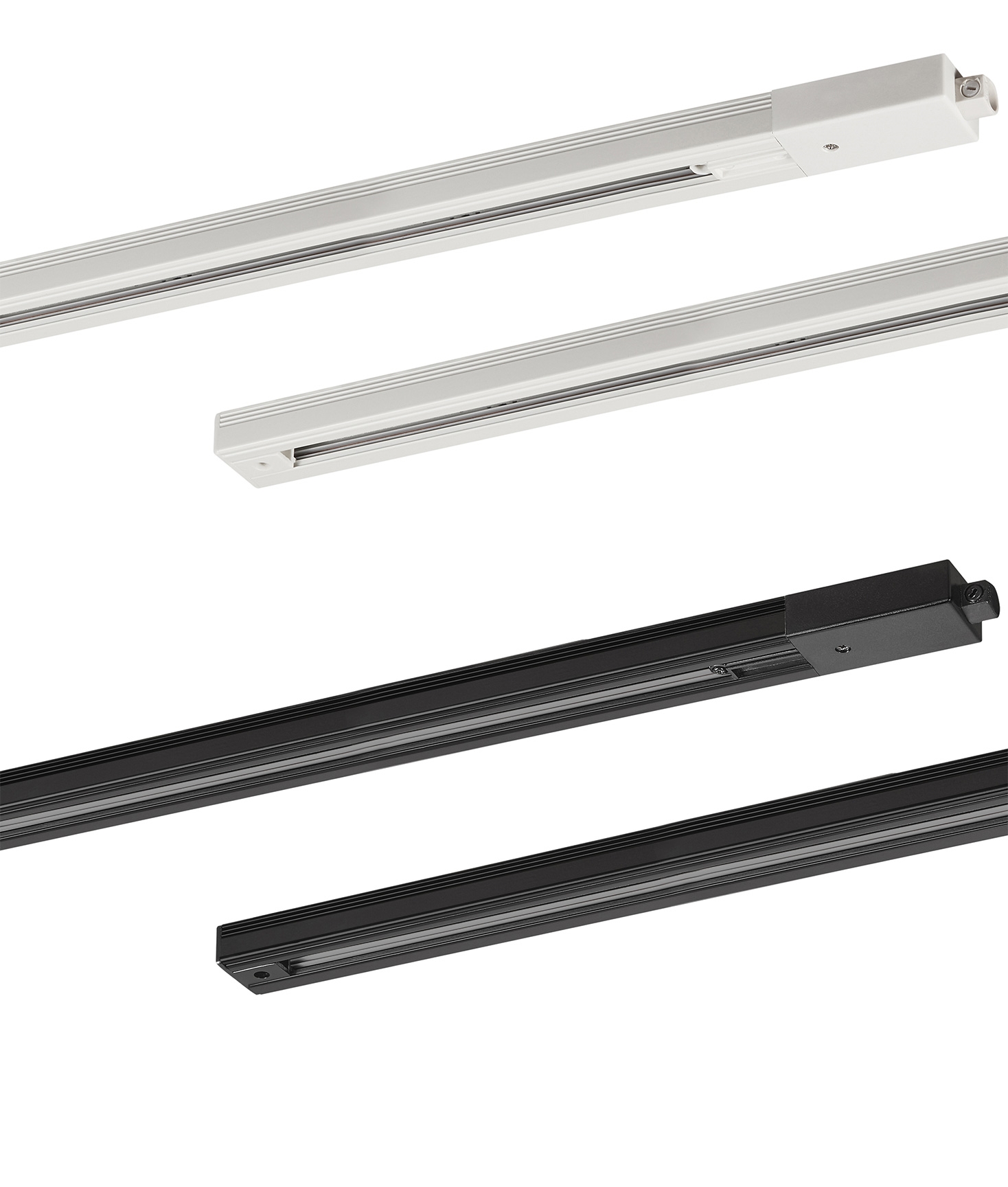

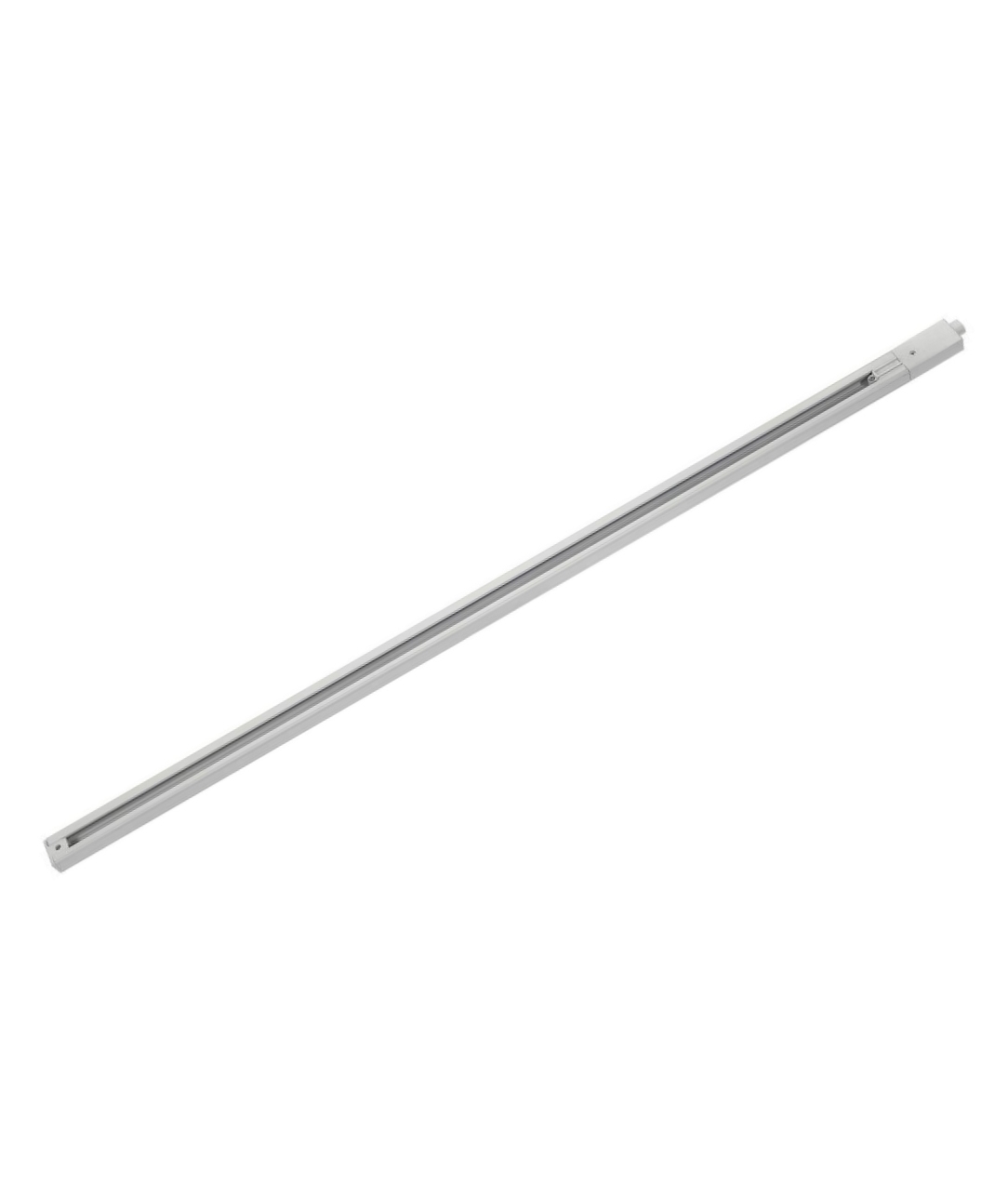

Track lighting is ideal for both home and workplace environments, allowing for an easy way to install lots of light from one feed-in. The ceiling-mounted track is easily customisable, giving you the choice of how many track heads you have and where the light is directed. This quick and easy-to-install mains lighting track is offered in black or white and in both semi-gloss or matt finishes.

All come complete with an end feed (where the power comes into the track) and an end cap. Additional components can be purchased which allow the track to be extended or change the direction. With due care, the length of the track can be reduced in length by cutting with a profile saw or junior hacksaw.

This particular track supports a range of different spotlights that are aesthetically styled and a little funky and will suit both domestic and commercial installations.

All lengths of track are offered in a satin paint finish - black or white.

This track can be cut to the required length for your project with a mitre saw or junior hacksaw.

We also offer 1-metre lengths of plastic clip-in covers that can be used to close the track between spotlights. This is easy enough to cut with a sharp craft knife and gives a clean look to your installation.

View more items from this supplier

Track Compatibility
	3-Circuit Track Lighting System
	Aesthetic Domestic Track System
	Basic Mains Track
	Low Voltage Tension Wire Components
	Luxury Magnetic Light Track 48v
	Micro Elegance - Mains LED Track System
	Signature Recessed Track System
	Signature Single Circuit Track System

Lamp Type
Width	35mm
Construction	Aluminium - Powder Coated
Wiring Details	Class 1 - Requires an Earth Connection
IP Rating	IP20

Can the connection to the mains be attached central to the track?
You can take two lengths of track, join them in the centre with a Track Connector With Feed-in Capability. This allows you to feed into the centre of the track and the length can be reduced if needed by cutting with a junior hacksaw.

How many lights could I install on one of these tracks?
The track is rated at 690 watts. If you are using 6 watt led lamps in your spotlights that's 115 spotlights. So it is true to say you can install as many as you desire, or you can physically fit.

Can you join several lengths together?
Yes, you would use the accessories listed Here.

what voltage does it work?
The voltage required is 230-240v.

The ceiling I would like to attach to is sloped, so can these tracks be suspended from a ceiling?
You can use product reference 52130 as a wire suspension for this track system. To ensure rigidity use two suspensions on a one metre track and three on a two metre track. Type 52130 in our search box and hit return.

I would like a T junction but I see you dont have them in this section. Will a basic T from another section work and fit into this track?
Sorry but components from other tracks will not work with this link track. To form a “T” you could use an end feed and a wire-through straight connector. It would need to be modified on site but may only need to drill a hole in the side of the straight connector.

Ready To Install Designer Lighting Track - Black or White

Includes Feed and End Cap
