Super Slim Recessed LED Floor Spot

Name: Super Slim Recessed LED Floor Spot
Brand: Lighting Styles
SKU: 4395
Price: 19.776 GBP
Availability: InStock
Rating: 3.8 (45 reviews)

Perfect for Laminate Floors and Furniture

Suitable for Zone 0 - protected against immersion in water

Class 3 - This fitting is low voltage and will require a transformer or driver.

No driver or transformer is supplied with this fixture (sold separately)

3000°K - Warm White

Product Ref: 4395

From £19.78 inc VAT

Description

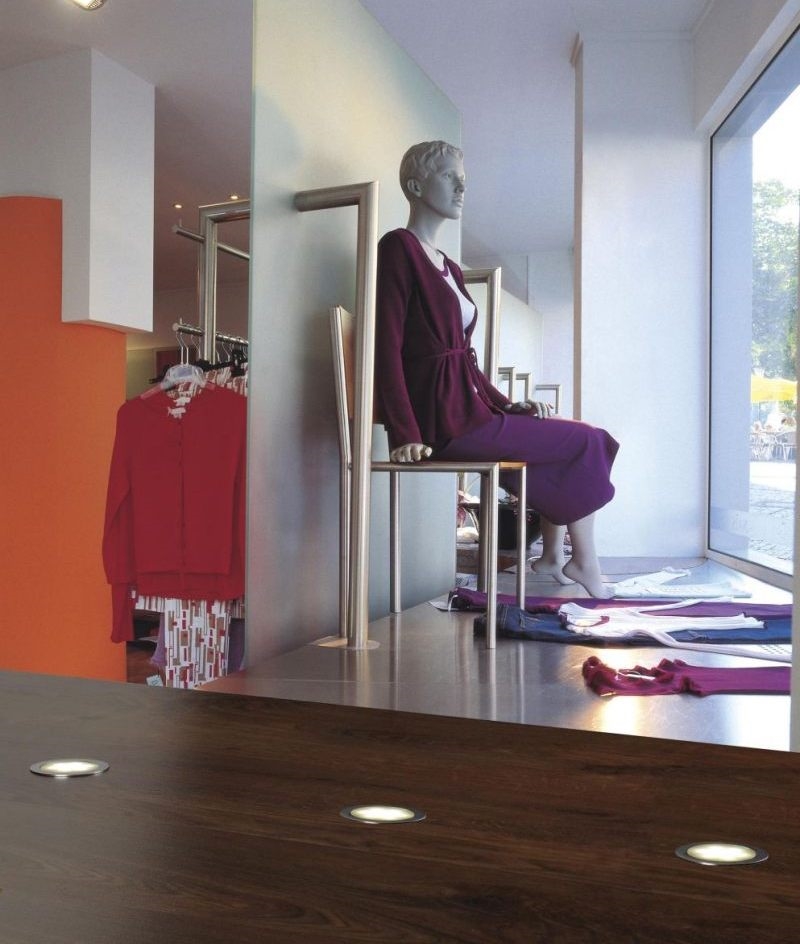

At last an ultra low profile recessed LED light fitting. This fitting offers multiple uses for both domestic and commercial applications. Put them in the floor for use as an uplighter or market lights for excellent low level lighting. These fittings can be walked and stood on. Recess depth of just 12mm, when we say super slim we mean it!

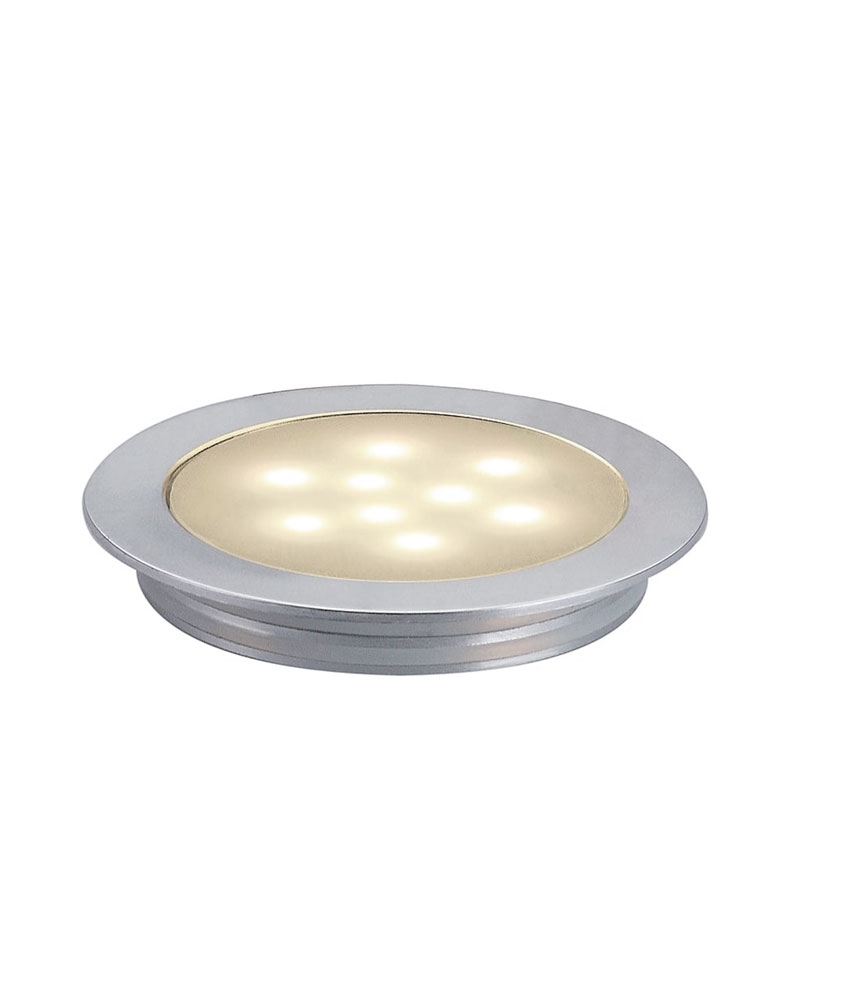

A sleek anodized aluminium casing and bezel with strong, artificial resin diffuser can be walked on!

Inside are 9 SMD LEDs totalling 0.5W, ideal for decorative and ambient lighting.

These are IP67 rated and 12V making them excellent for use externally or internally. Ideal for placing in a salon or shop floors as no damaged will be caused by a wet mop (even if you knock the bucket over).

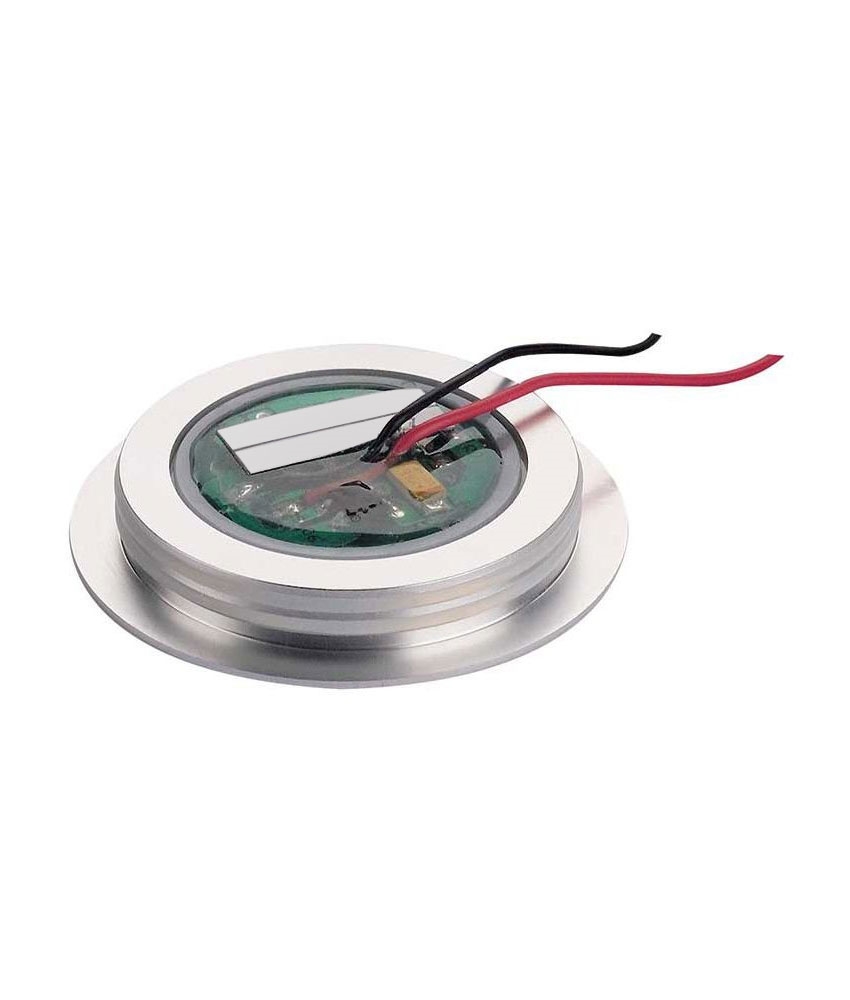

They can also be used in vertical surfaces so are perfect for recessing into stair risers, or furniture. Supplied with 2 metre connection cable.

Requires a conventional (toroidal) transformer. Note multiples are wired in a parallel circuit [do not wire in series].

Transformer measurements height 45mm x width 50mm x length 75mm.

Specification

Lamp Type	Long Life LED light source
Lamps Included	Yes
Dimmable?	No
Width	55mm
Depth/Projection	12mm
Cut-Out Diameter	45mm
Construction	Aluminium - Anodised
Wiring Details	Class 3 - Requires a low voltage supply
IP Rating	IP67
Kelvin	3000°K - Warm White
Driver	No driver or transformer is supplied with this fixture (sold separately)

Frequently Asked Questions

Please can you advise the diameter of the base (lighting) part that sits within the laminate and the top part that sits over the aperture?
Cut out is 45mm, overall diameter is 55mm.

Would these be suitable to use on the floor in a wet room. The floor will be tiled with porcelain tiles.
If it’s a wet room with a wet floor they’d fail within a year or perhaps months. You’ll need something that is both low voltage and IP67 or IP68. If it’s a wet room (and the area they are in doesn’t get wet) you can expect them to work okay.

Would it be OK to fit five of these light in a line into a porcelain floor tile?
This would be fine, just remember multiples are wired in a parallel circuit [do not wire in series].

If using this as a downlighter will it be ok to fix with silicone?
Yes that would be a suitable material - ensure it it held in situ by tape until the silicon sealant has cured.

Want to use this to illuminate a recessed cubby hole above a bath, height of recess is about 400mm, is that ok for heat projection? surfaces will be tiled.
This unit creates very little heat and no heat will be projected into the alcove. In short an ideal product that will provide the right amount of light for your needs.

Is this available in any other colour temperatures ?
These are only available in one colour temperature. 3000k - Warm white.

Are the super slim recessed LED floor spot lights dimmable?
These fixtures are not dimmable.

Please can you advise how many lumens the super slim recessed LED floor spot gives out?
The lumen output for these fittings is 20. That`s for warm white and white.

what transformer do these lights need
Any conventional (non electronic) transformer can be used but the 10va model at the bottom of the page is well suited.

Availability: IN STOCK 4-6 working day dispatch
