Jogg Chandelier 19 Arm

Name: Jogg Chandelier 19 Arm
Brand: Lighting Styles
SKU: 2458
Price: 590 GBP
Availability: InStock
Rating: 4 (44 reviews)

5 or 10 Watt Versions Available

In Stock For Quick Dispatch

Offers no protection from splashed or sprayed water

Class 1 – This fitting will require an earth connection.

Yes, this product is dimmable - See the specifications tab for more details

Flex can be shorted at the time of installation.

Includes integral driver/transformer suitable for 230 - 240v supply

Product Ref: 2458

From £590.00 inc VAT

Description

Jogg chandelier a classic favourite. Held in stock and ready for a quick dispatch. We carry stock of these items but they do sell quickly so please call us if you require urgently.

The original design from Switzerland uses a malleable or ductile steel wire to support a light with a diffuser polycarbonate film. By twisting or scrunching the shape of the wire the resulting shape is formed to suit your mood. If your mood changes simply change the position of the wires to suit your needs.

These elegant chandeliers have a ceiling mounted fixing plate that houses an electronic dimmable transformer so all that is required is a mains supply.

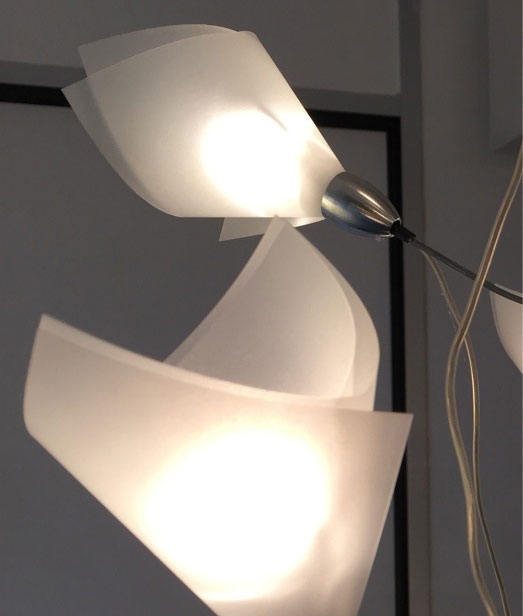

This ceiling mounted fitting comes complete with shades made of high temperature white polycarbonate enclosing miniature 12v halogen lamps.

Dimensions & Sizes:

19 Light Jogg Pendant - 5 watt
Depth excluding suspension: 1000mm
Diameter approximate: 900mm
Suspension is nickel wire with clear PVC insulation

19 Light Jogg Pendant - 10 watt
Depth excluding suspension: 1000mm
Diameter approximate: 900mm
Suspension is nickel wire with clear PVC insulation

If you require replacement shades please call us for price and availability.

Specification

Lamp Type	G4 - 12v Halogen Capsule
Lamps Included	Yes
Dimmable?	Yes - on trailing edge (reverse phase dimmers)
Suspension	1500mm
Adjustable Height	Yes – at time of installation
Construction	Mixed
Wiring Details	Class 1 - Requires an Earth Connection
IP Rating	IP20
Driver	Includes integral driver/transformer suitable for 230 - 240v supply
PDF Document(s)	View PDF

Bulbs

	G4 Radium 10w Halogen Capsule Lamp RAD22311200
	G4 Radium 20w Halogen Capsule Lamp RAD22311206
Click here to choose your bulbs

Frequently Asked Questions

Can the bulbs in the Jogg lights be changed for LEDs?
The Jogg is available with LEDs - please follow this link https://www.lightingstyles.co.uk/led-jogg-chandelier---5-sizes or type the product code 41208 into the search box.

Hi there, how long is the suspension to the top of the fitting on this, looking for the overall height as I think the larger lights may drop too low, thanks

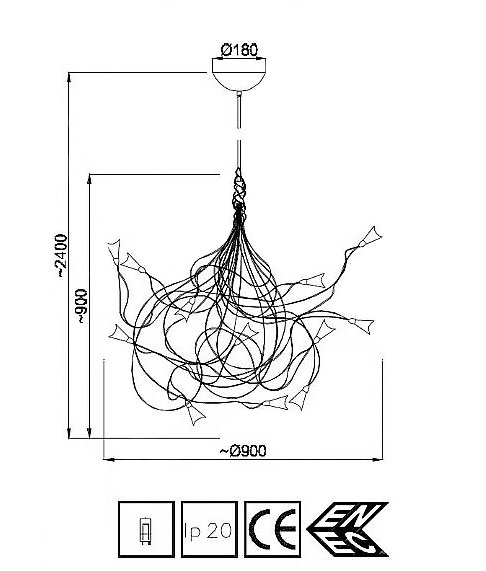

2400mm for the 5w. 2500 for the 10w. Both are supplied with 1500mm of flex (cable) that can be shortened at time of installation. The 4th picture shows a diagram of all the measurements.

Can you confirm please , this light will work with a dimmer switch without causing a buzzing noise. What is the delivery time?
As long as your dimmer module didn`t come from Poundland it should dim without any noise. This item is in stock so would be next day delivery.

Please can you let me know the minimum height once you have twisted and bent the wires (appreciate this is variable just like a rough guide)
The diameter is roughly 900mm, You could twist the wires, but we wouldn`t recommend anything smaller than 700mm. It comes supplied with 1500mm of flex, which you could easily shorten to 300mm.

10 watt 19 arm jogg light unit - could you let me know the dimensions / size of the box / carton this comes in ?
The box this item is delivered in is Height 930mm x Width 400mm x Depth 300mm. Weight 4kg.
