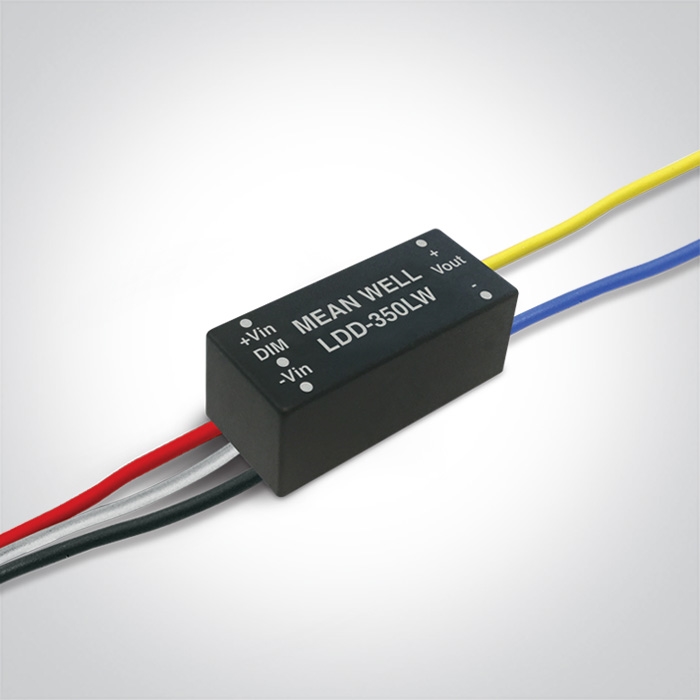

Dimmable 350mA LED Driver for 12V/24V DC Power Supplies

This dimmable LED driver is a compact, rectangular unit designed for low-voltage environments. With its slim dimensions of 32mm x 20mm x 12mm, it features a robust plastic housing ideal for concealed installations where durability and reliability are essential. Rated IP20, this driver is designed for indoor applications, offering a sleek, minimalist solution for integrating with a variety of LED lighting systems.

Usage
The driver operates across a wide input voltage range of 9V to 36V DC, making it highly versatile for use in systems powered by 12V or 24V supplies. It delivers a constant current of 350mA, ensuring consistent performance with LED lighting products. This driver is particularly suited to low-voltage environments such as yachts, RVs, off-grid setups, and other installations relying on renewable energy sources. Its dimming capability, powered by Pulse Width Modulation (PWM), allows users to precisely adjust lighting intensity without the need for voltage fluctuations, ensuring flicker-free and efficient dimming.

Key Features
The 350mA LED driver provides a constant current output, making it compatible with a wide variety of LED lighting solutions. The PWM dimming functionality ensures smooth control over lighting levels, helping to create both ambient and task-specific lighting environments. Compliance with EN61347-1 safety standards guarantees reliable and safe operation, while the power output adjusts to match different input voltages, ranging from 4.2W at 12V to 11.2W at 36V.

Warranty: 3 Years
