Pinhole LED Guide Light For Stair Treads And Corridors

Name: Pinhole LED Guide Light For Stair Treads And Corridors
Brand: Lighting Styles
SKU: 3363
Price: 38.25 GBP
Availability: InStock
Rating: 4.3 (42 reviews)

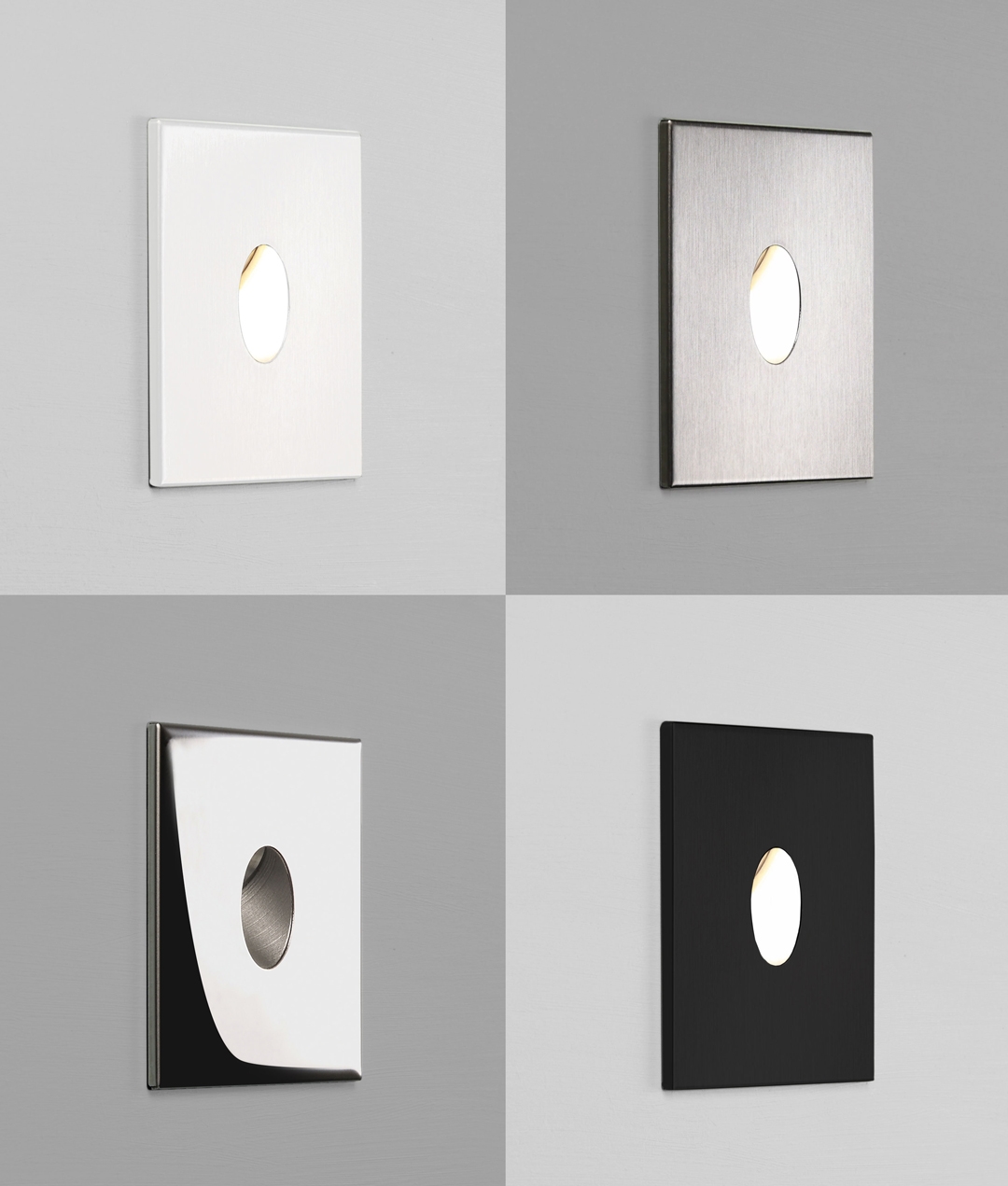

Four Finishes to Choose From

Suitable for Zone 1 - protected from water jets

Class 3 - This fitting is low voltage and will require a transformer or driver.

Yes, this product is dimmable - See the specifications tab for more details

No driver or transformer is supplied with this fixture (sold separately)

3000°K - Warm White

Product Ref: 3363

From £38.25 inc VAT

Description

At just 70mm x 70mm these recessed wall lights are very discreet and because they are offered in a range of finishes they will blend into the decor - until you switch them on!

The light cast from these lights is a crisp neutral white light and it looks good on wooden, stone or carpeted floor and steps.

Requires an overall recessing depth of 100mm minimum (so is better suited to stud and plasterboard walls).

The lamp is a 1w LED in a warm white 3,000K.

This fixture requires a 350ma low voltage power supply (LED driver).

Caution for those who choose not to read instruction sheets! Connecting this LED to a mains supply without a low voltage 350mA power supply will destroy the LED chip. Ensure the installer is aware of this!

Larger LED power supplies are available which will power several of these lights.

Dimmable drivers are also available, please contact us for details.

Specification

Number Of Lamps	1
Lamp Type	Long Life LED light source
Lamp Lumens	70
Part L Compliant Luminaire	No
Lamps Included	Yes
Dimmable?	Yes - when using the specified equipment
Max Wattage	1w
Width	70mm
Height	70mm
Depth/Projection	2mm
Suggested Void Depth	100mm
Cut-Out Diameter	62mm
Wiring Details	Class 3 - Requires a low voltage supply
IP Rating	IP65
Kelvin	3000°K - Warm White
Driver	No driver or transformer is supplied with this fixture (sold separately)
PDF Document(s)	View PDF

Frequently Asked Questions

What do you do if light stops working? How do you replace it?
This fixture uses a good quality LED chip. It has a three year guarantee but should last ten years plus. Spares are available.

I am purchasing three LED low level wash lights. How many 350mA drivers will I need?
These fittings are 1w. The driver is up to 3w. So 1 driver would do 3 lights.

Do you need an LED driver for each light or can the 350mA 1-3 w driver power two lights?
The 1-3w 350mA driver will be able to power two lights.

Will the LED driver shown below fit in the housing?
Yes, the 1-3 watt 350 ma driver will fit inside the housing. All you need is a mains supply.

Availability: IN STOCK 2-3 working day dispatch
