2700°K - Soft Warm White
Product Ref: 52852

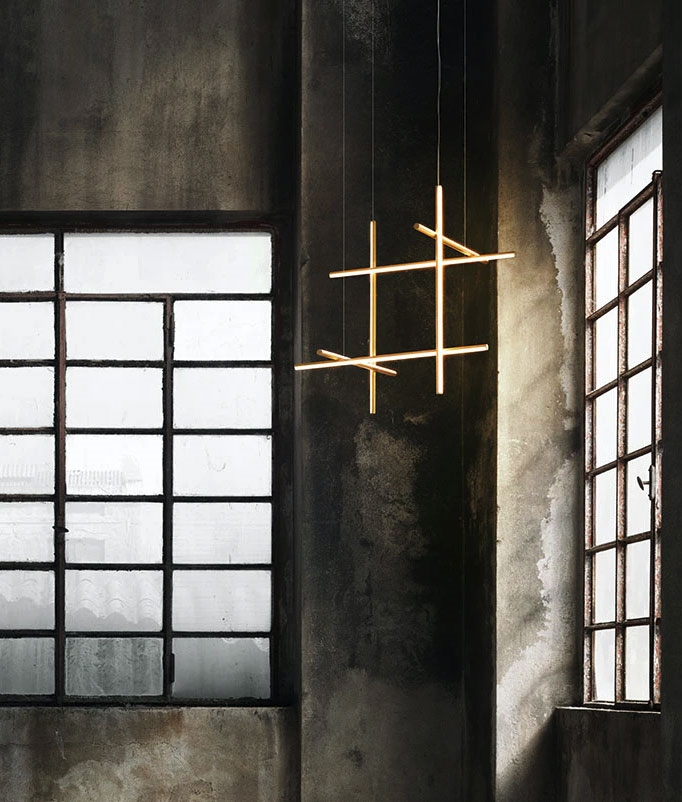

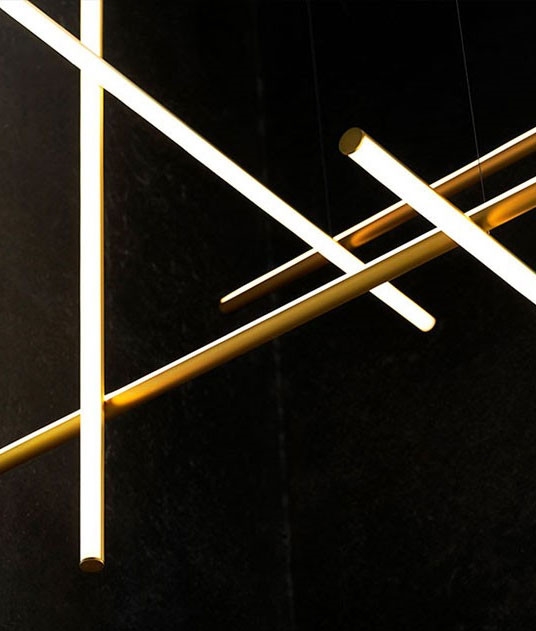

£1,515.50 inc VATThe Coordinates S3 is a beautifully designed pendant with a unique angular look. Six anodized aluminium rods with integrated LED strips are spread softly throughout the surrounding area through the platinum optical silicone diffuser.
Each part is powered by a near-invisible electrical and mechanical suspension that gives a clean and pristine look, whether installed in a residential or commercial building.
The champagne finish gives the modern pendant a subtle classical twist, with a slight gleam as the light reflects off the surface.
2500mm suspension - which can be shortened at the time of installation - full installation instructions and diagrams in the specification tab.
The integrated power supply is pre-configured to allow dimming via push-to-dim, 1-1v and Dali. If you do not plan to use these more sophisticated dimming systems you can set the light level via a small button on the ceiling rose. This changes the default light level and maintains that intensity whenever switched on.
Weight 3.2kg
| Number Of Lamps | 6 |
| Lamp Type | Long Life LED light source |
| Lamp Lumens | 3850 |
| Lamps Included | Yes |
| Dimmable? | Yes - when using the specified equipment |
| Total Wattage | 71w |

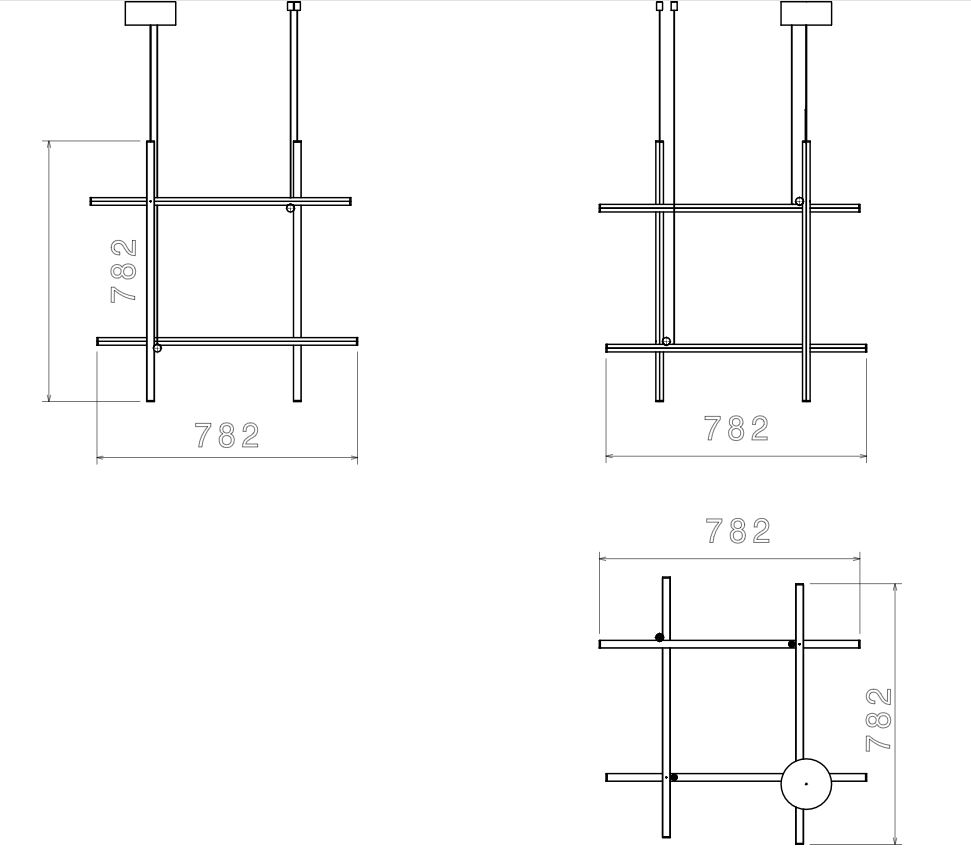

| Width | 782mm |
| Height | 782mm |
| Suspension | 2500mm |
| Adjustable Height | Yes – at time of installation |
| Construction | Aluminium - Anodised |
| Wiring Details | Class 1 - Requires an Earth Connection |
| IP Rating | IP20 |
| Kelvin | 2700°K - Soft Warm White |
| Driver | Includes integral driver/transformer suitable for 110 - 240v supply |
| PDF Document(s) | Installation Sheet Diagram |
