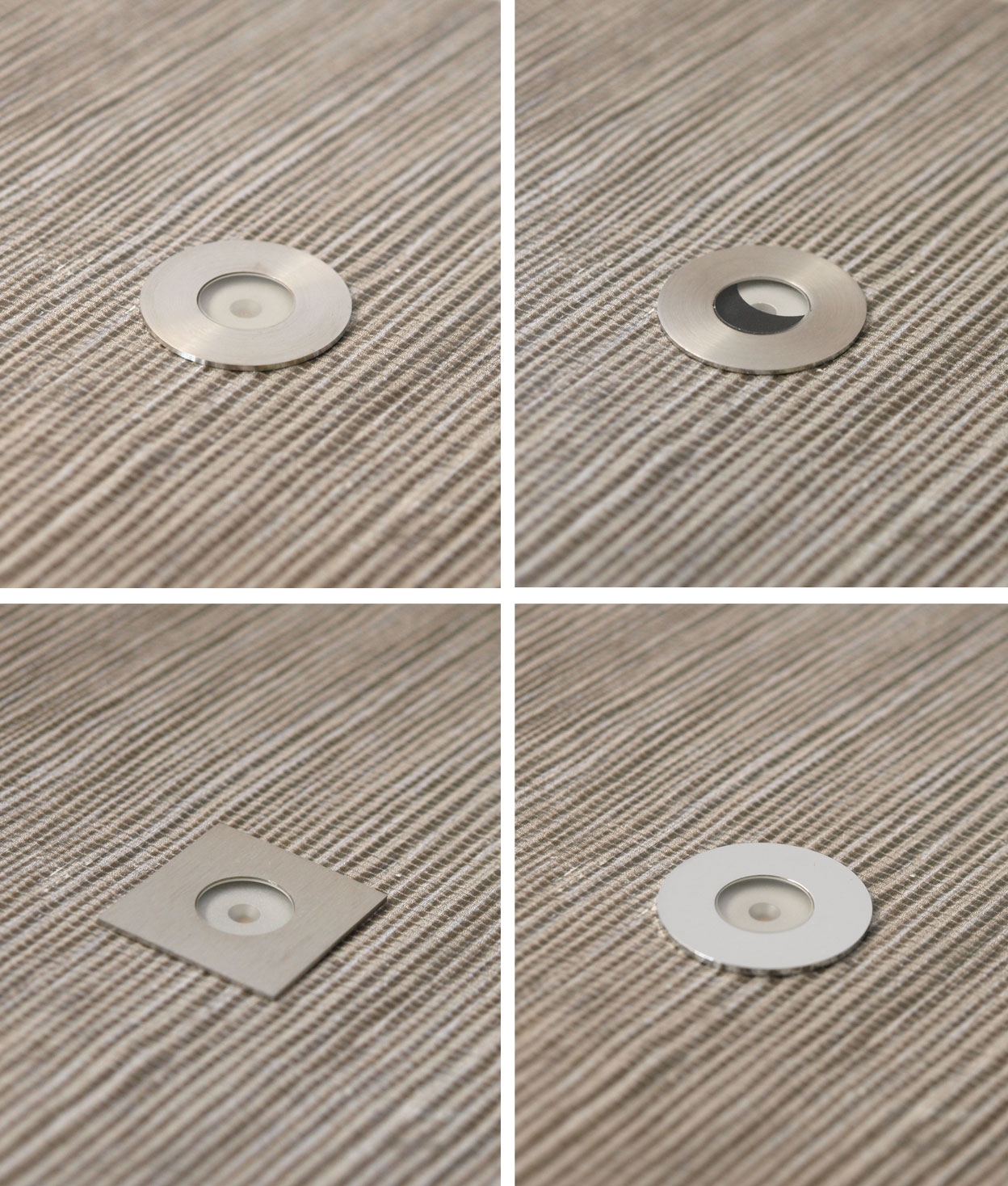

If you are pushed for budget you might consider using exterior decking lights in your bathrooms, but if you want professional designed-for-purpose lighting, you should consider this range of recessed lights. Finished in either 316 marine-grade stainless steel or polished chrome and offered in round and square designs these lights are going to give you the very best effect and last a long long time.

In all designs a single, low-wattage, low-heat, low-voltage, 1 watt LED chip provides warm white (3000°k) light and has a wide beam distribution of 120°. The fixture projects only 1.3mm from the floor so does not present a trip hazard yet is strong enough for foot traffic.

Rated at IP65 this fixture can be used in Zone 1 and 2 in a bathroom - pretty much anywhere excluding locations in the bath or shower tray.

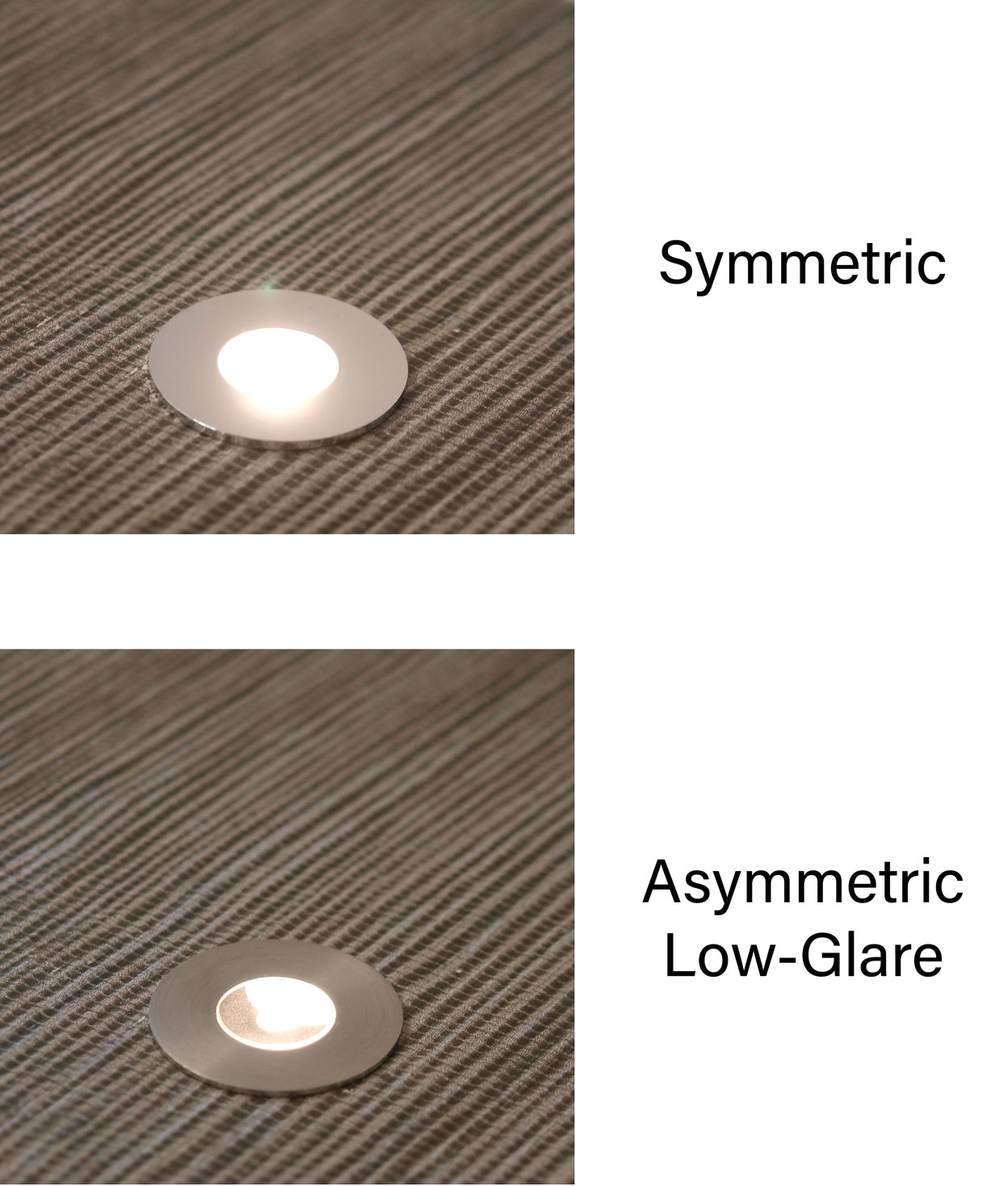

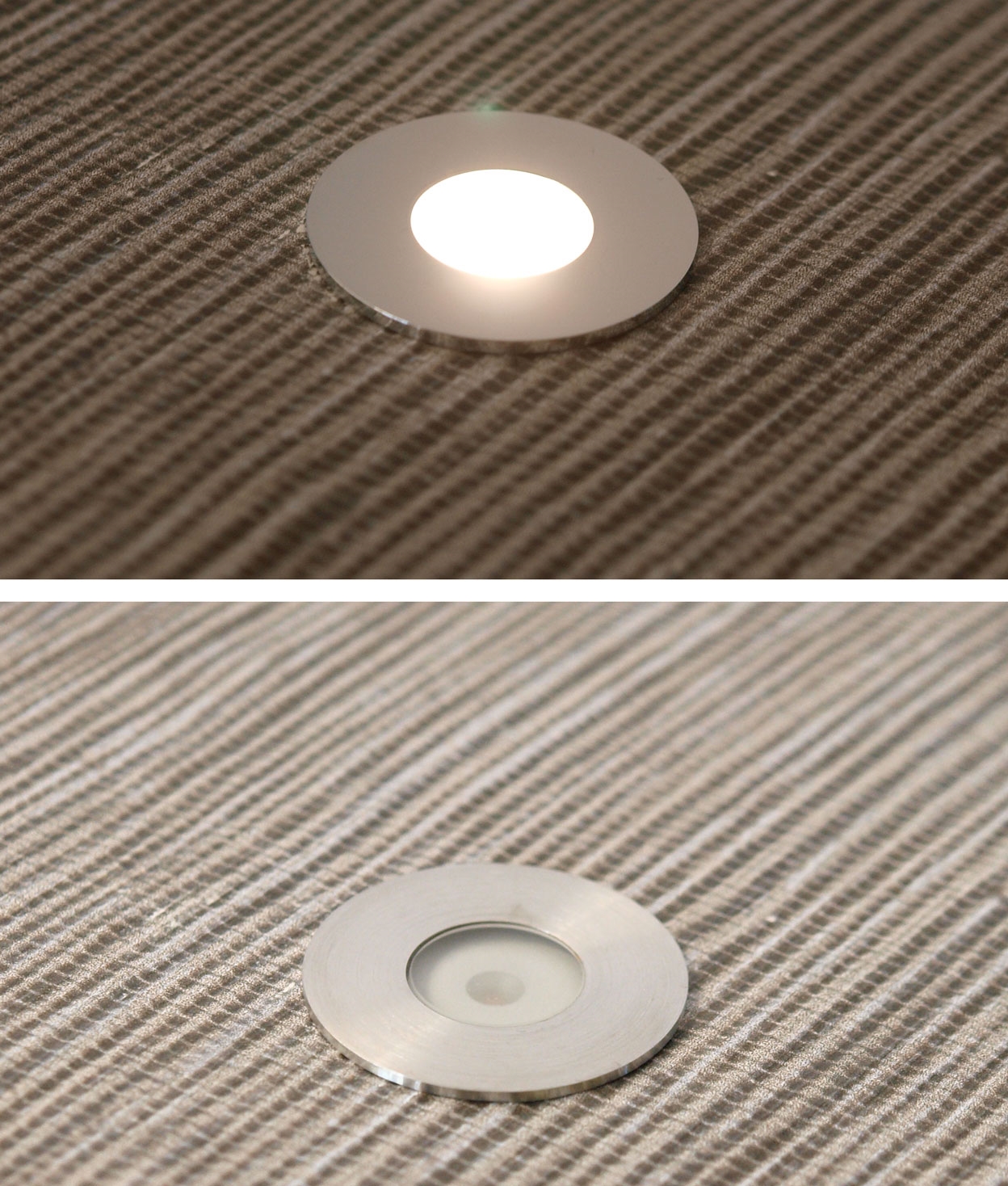

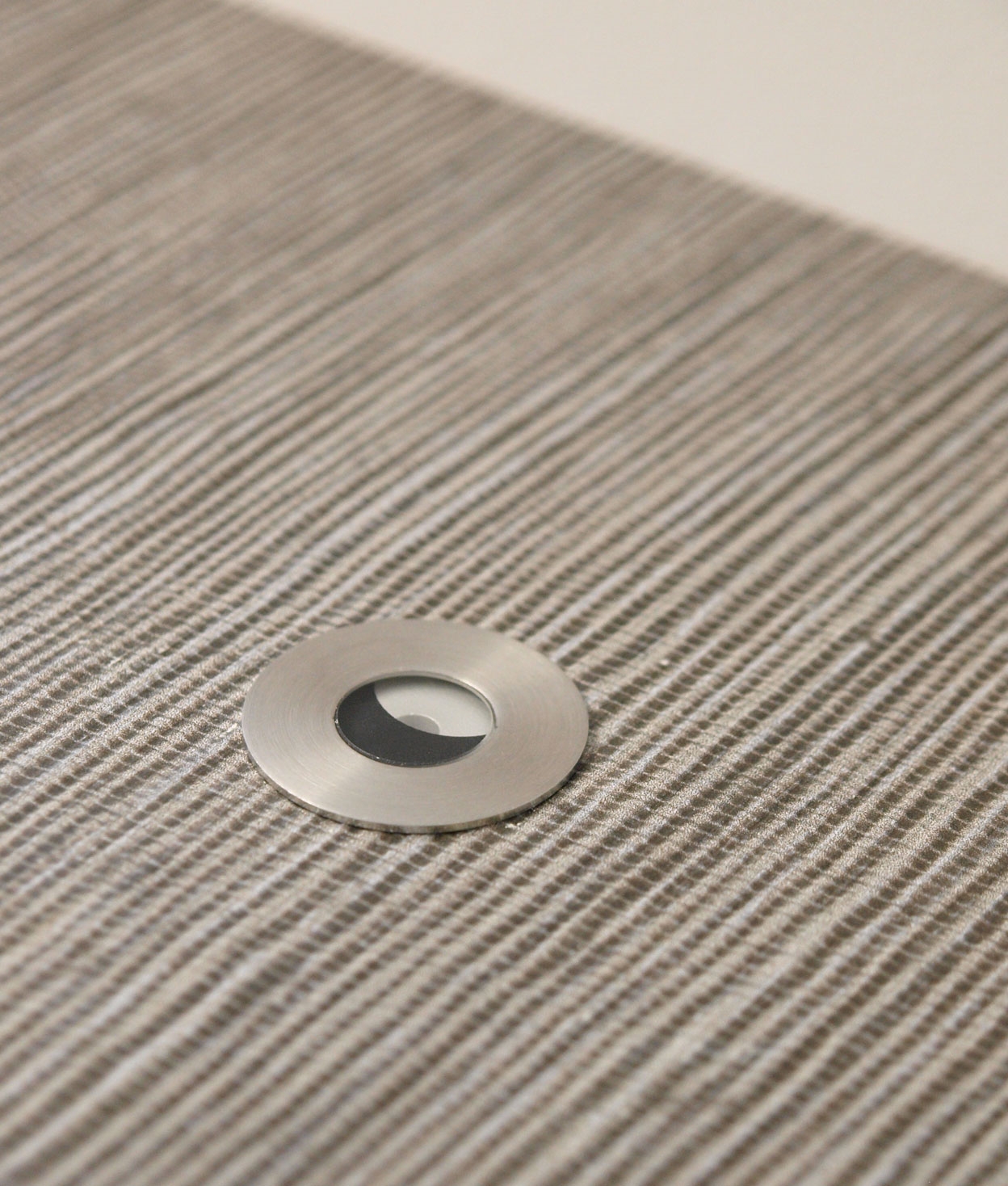

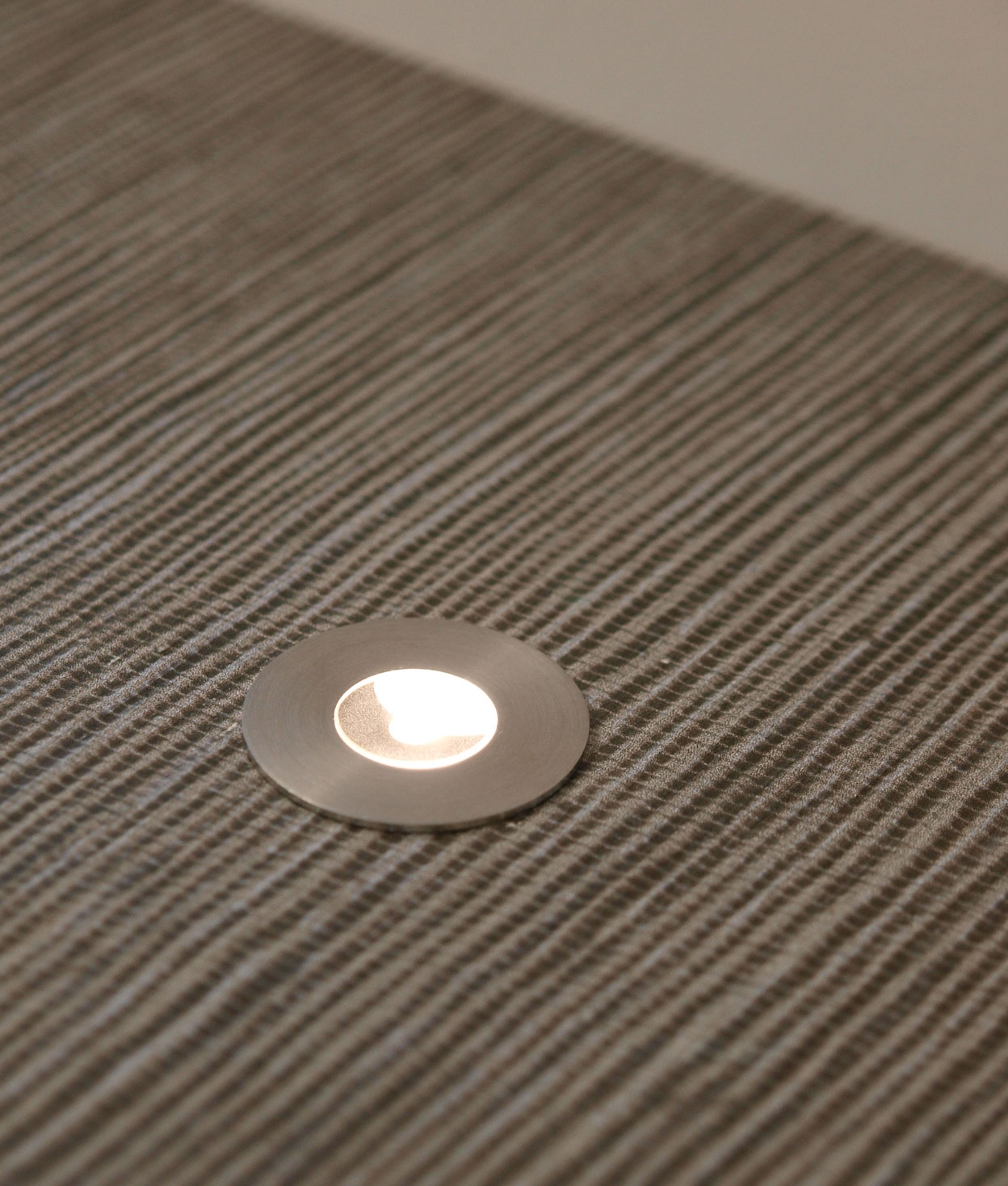

The standard version gives an omni-directional light distribution. If you wish to use this to uplight a wall, or a bathtub without producing glare you may wish to use the asymmetrical version that has a blinker that greatly reduces the light output in one direction.

The fixtures must be connected to a 350ma DC power supply. Fixture may be installed on their own driver or several can be installed on a larger power supply and wired in series (see graphic). The smaller drivers listed below is smaller enough to fit through the hole made for the light fixture - see images.

We suggest a hole between 35 and 38mm is used for a snug fit. In the event of premature failure, the lights can be easily removed for replacement - you do not have to break up the floor.

The fixture depth is 12mm but we suggest a 20mm depth to accommodate the wiring.

NB These lights require a 3-volt 350mA supply and must be wired in series when connecting two or more to higher capacity drivers - failing to do so will overvolt and destroy the LED.

Lamp Type
Lamp Lumens	90
Lumens Per Watt	90
Dimmable?	Yes - when used with a dimmable LED driver
Total Wattage	1w
Diameter	40mm
Suggested Void Depth	20mm
Cut-Out Diameter	36mm
Wiring Details	Class 3 - Requires a low voltage supply
IP Rating	IP65
Kelvin	3000°K - Warm White
Driver	No driver or transformer is supplied with this fixture (sold separately)

hi - if i were to place two of these lights behind a bathtub would they be bright enough. They are only 90 lumens so i am worried they will not dim that much?
If the aim is to have these hidden behind a freestanding bath you will need something with more impact. Perhaps a GU10 in ground light with a dimmable lamp would be better suited. Consider Product Ref: 6317 or Product Ref: 1892

Are you able to supply but with 5000k natural white lamp option?
Unfortunately this fitting is only available in a 3000k. We do have another product available in a 4000k Neutral White, Ref 41141. Unfortunately nothing in a 5000K.

Are the asymmetrical recessed lights dimmable?
Yes, use a dimmable driver and this will dim right as required.

How are these lights held in place?
The body of the light has two strong steel springs that grip the side of the hole cut into your flooring material (be that wood or tile etc). This offer a strong fixing that still allow the lights to be removed or replaced as necessary.

Does the 40mm diameter stated in the dimensions include the metal collar or is it just the diameter of the light aperture?
The bezel diameter is 40mm - the required cut out is around 35mm

Is the dimmer switch in the link suitable for the dimmable driver (LS58082).
The trailing edge dimmer, for loads down to 5 watts will work with the fixture and dimmable driver.

How many dimmable drivers do we need for 8 of these lights?
Two of the larger dimmable drivers sare required for 8 lights. You MUST WIRE IN SERIES. Don't be tempted to wire a SINGLE LED fixture up to the larger driver to see what it looks like - the voltage will be too high and will damage the LED.

Could you please advise the length of wire/cable with the lights please?
It comes with 300mm of cable attached.

Hi, are these lights suitable to install on vinyl bathroom flooring?
Yes, this would be suitable.
