Miniature IP67 Recessed LED Light for Soffits, Walls, Floors, and Bathrooms

27mm recessed LED with CRI90 Osram chipset, IP67 and IK08 rated for indoor and outdoor use

Suitable for Zone 0 - protected against immersion in waterClass 3 - This fitting is low voltage and will require a transformer or driver.Yes, this product is dimmable - See the specifications tab for more detailsBulbs IncludedNo driver or transformer is supplied with this fixture (sold separately)

3000°K - Warm White

3000°K - Warm White

Product Ref: 7118

From £33.00 inc VAT

Design and Style
This miniature recessed LED light combines compact proportions with robust performance. The aluminium body and toughened frosted glass create a durable construction rated to IK08, while the 27mm bezel and 2mm projection provide a subtle architectural finish. At its core, a high-performance Osram chipset delivers CRI90 illumination, ensuring natural colour rendering that brings out the true tones of materials and surfaces.

Applications

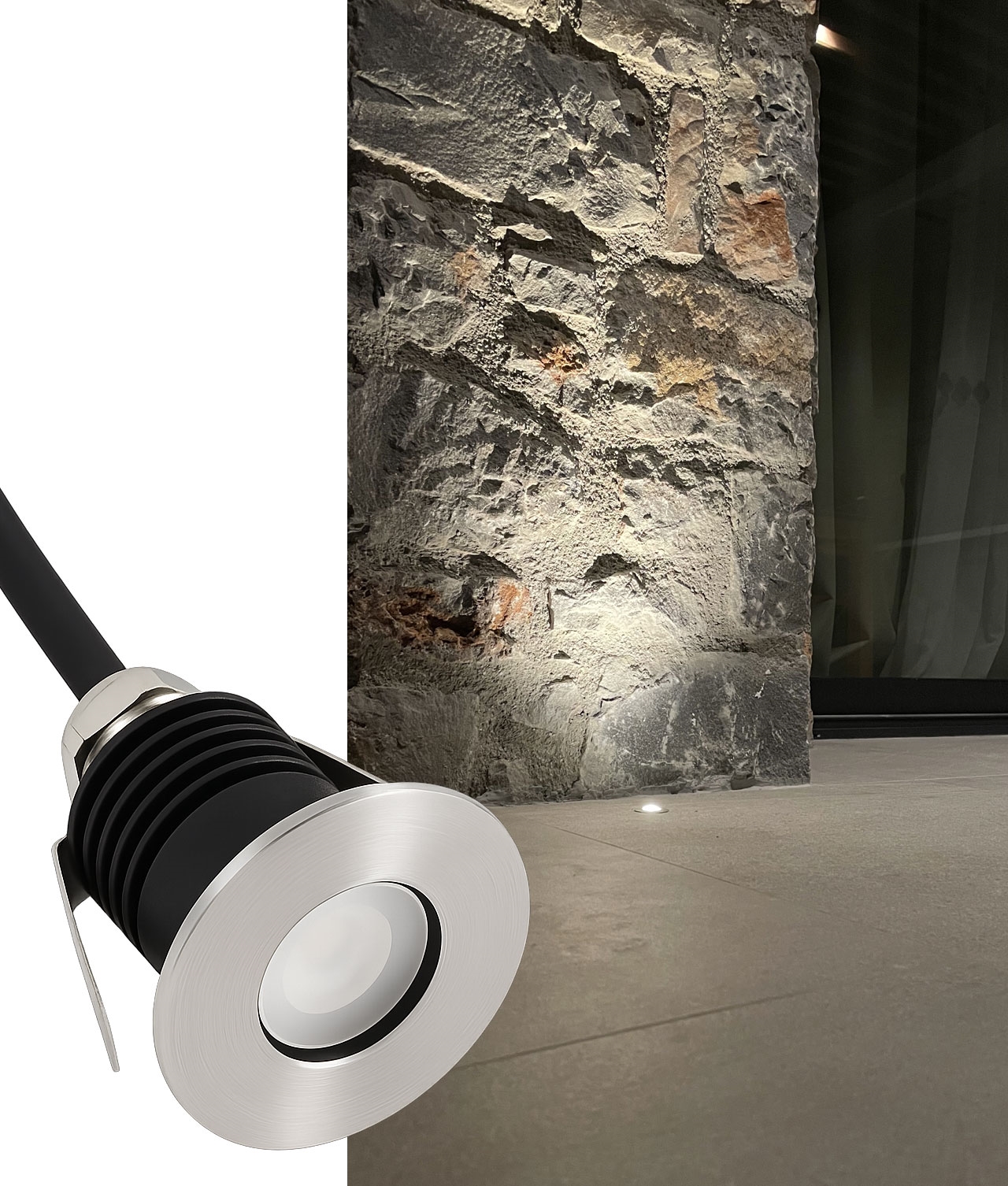

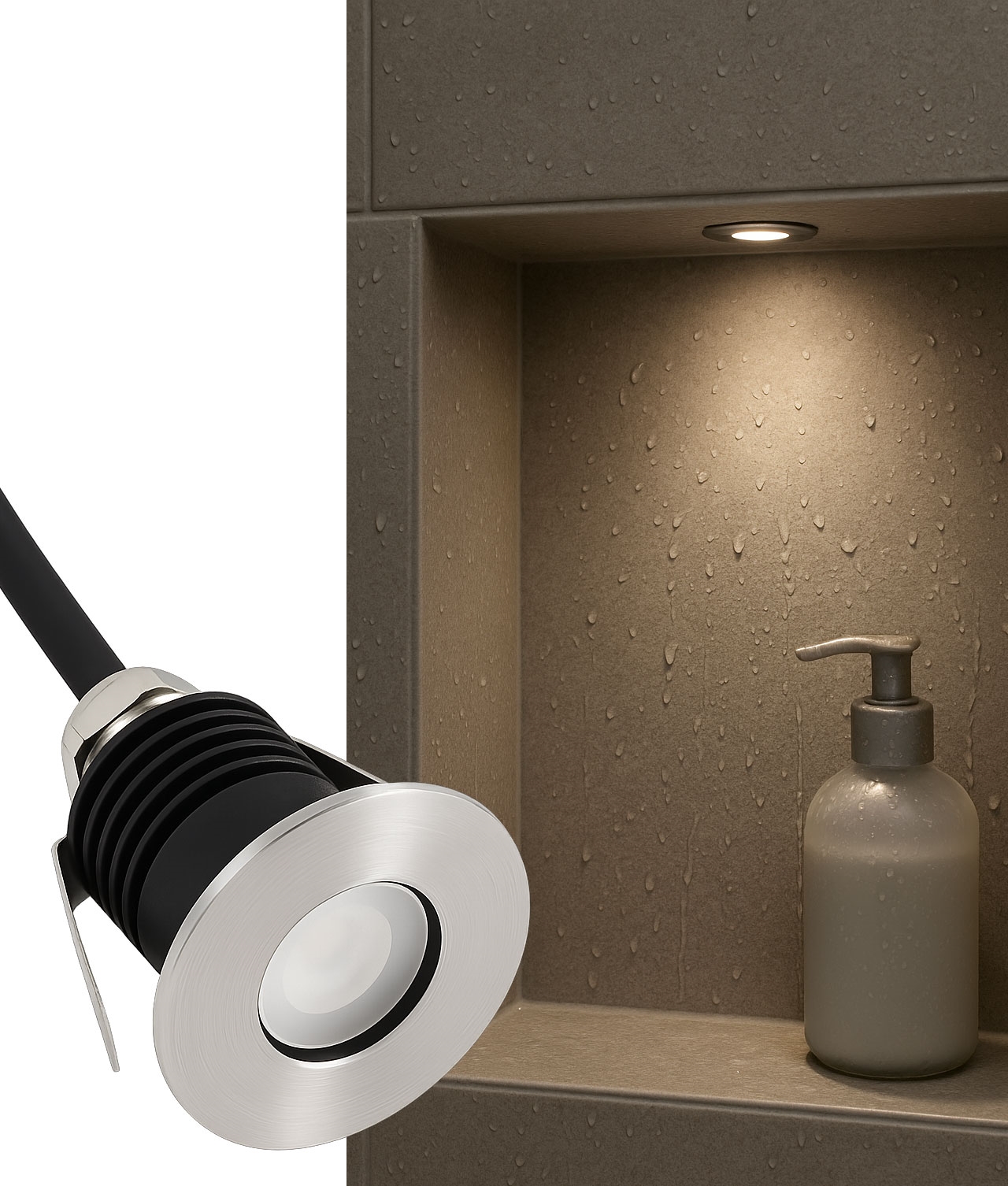

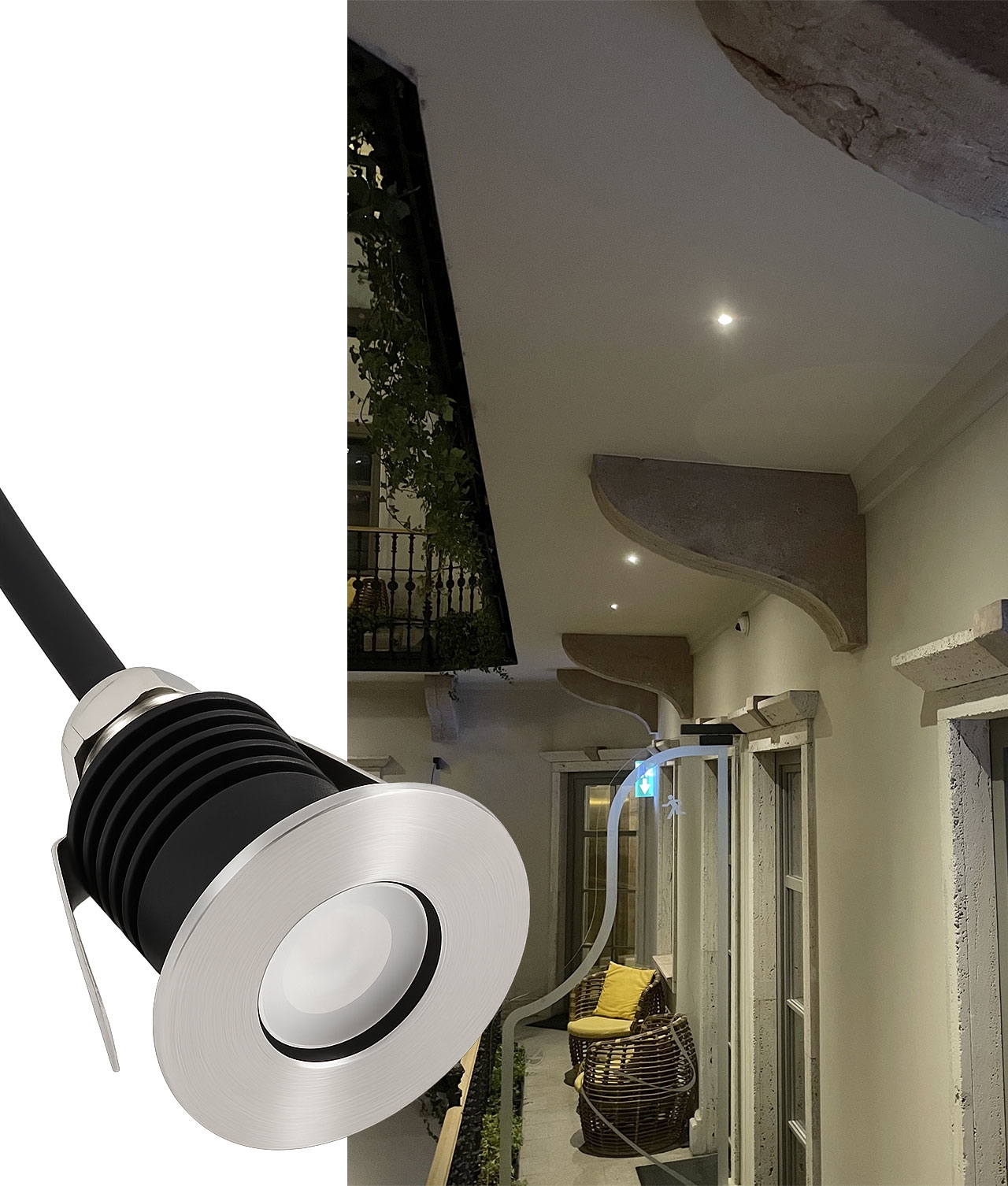

The fitting is designed for versatility and can be installed in exposed locations in any orientation. In soffits and canopies it works as a discreet downlight, enhancing entrances, porches, and exterior details with focused illumination. When positioned at low level on walls it serves as effective pathway guidance, improving safety and adding definition to boundary walls or landscaped areas. Its IP67 rating and heavy-duty build make it suitable for bathroom zone 1, allowing precise lighting above showers or baths. The same resilience extends to floor use, where the light functions as a ground marker in pathways, terraces, or decorative settings. For these installations, free-draining material beneath the fitting is recommended. The robust design also supports use in commercial and public projects such as hotels, spas, or retail environments where resistance to impact, wear, and spillages is essential.

Key Features
The light offers two output levels depending on driver selection. At 700mA the fitting uses 2 watts and delivers 150 lumens, while at 350mA it consumes 1 watt and produces 75 lumens. A 24-degree beam angle creates focused illumination for accenting and guidance. Installation requires a 22mm cut-out for direct fixing or 25mm when using the supplied concrete-in housing, with a depth of 45mm including the waterproof cable entry. Built-in fixing clips simplify mounting, and additional sealant can be applied in wet room installations. Each fitting is pre-wired with 2 metres of two-core rubberised flex for convenience.

Full Specification

  • Body: Aluminium

  • Glass: Toughened frosted, IK08 impact rating

  • Bezel: 27mm diameter, 2mm projection

  • Cut-out: 22mm (direct fixing) / 25mm (with housing)

  • Depth: 45mm including cable entry

  • LED: Osram chipset, CRI90

  • Wattage / Output: 1W 75lm (350mA driver) / 2W 150lm (700mA driver)

  • Beam Angle: 24°

  • Cable: 2m two-core rubberised flex pre-wired

  • Fixing: Clips with optional sealant, sleeve supplied for casting in place

  • Driver: Requires 350mA or 700mA constant-current driver (not included)

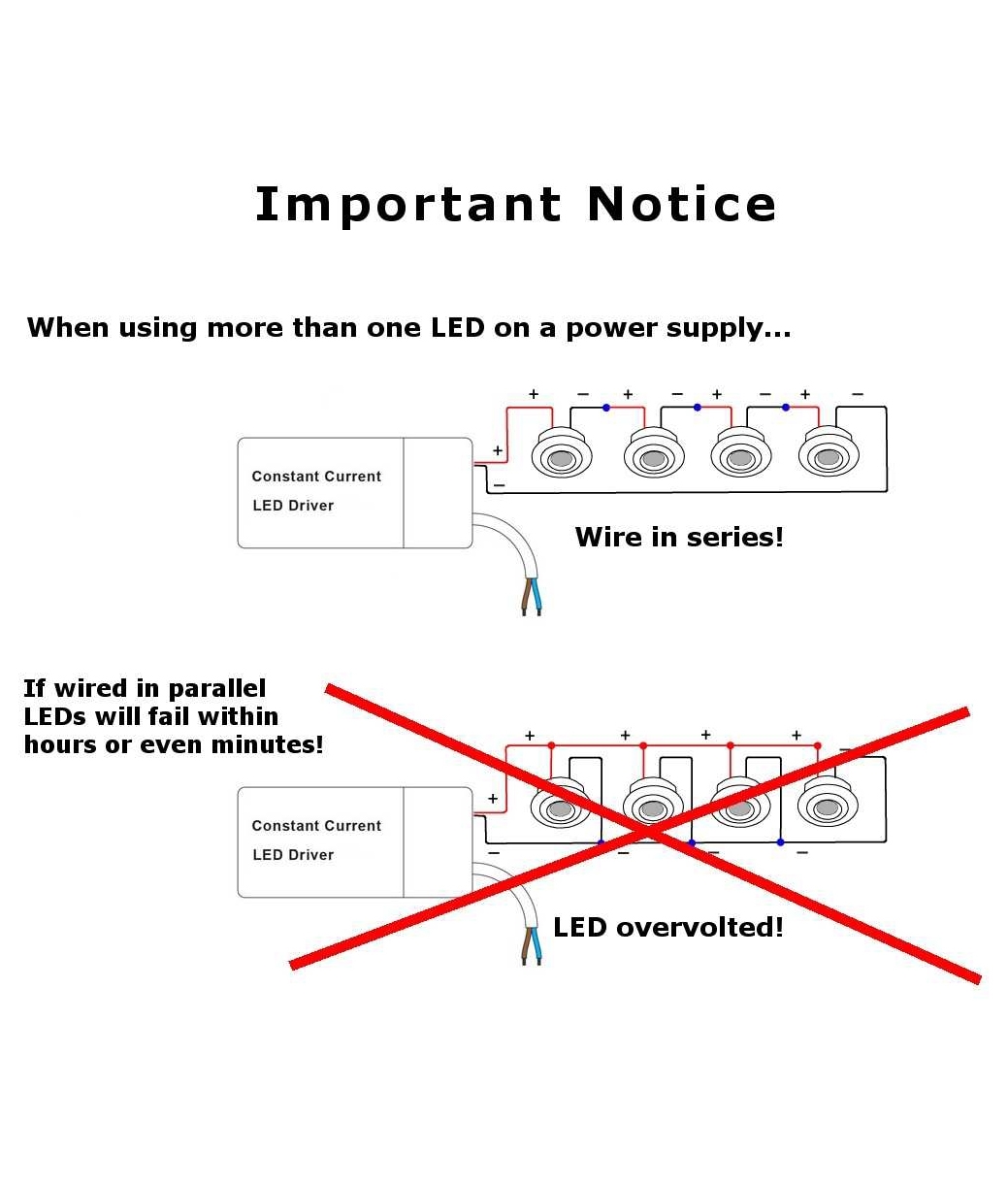

  • Wiring: Must be connected in series when using multiple fittings on one driver

  • IP Rating: IP67, dust-tight and protected against immersion

  • Compliance: Suitable for bathroom zone 1

View more items from this supplier

Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
CY69042MALW
Aluminium Low Level Recessed LED Spot
£33.00
£27.50 exc VAT
700mA Drivers - for full intensity (150 lumens)
CY89004A
Will power 2 LEDs at 100% output
4w 700mA IP66 Ultra Compact LED Driver
£13.60
£11.33 exc VAT
CY89006PA
Will power 3 LEDs at 100% output
6w 700mA IP66 Ultra Compact LED Driver
£13.60
£11.33 exc VAT
350mA Drivers - for 50% intensity (75 lumens)
CY89004
Will power 4 LEDs at 50% output
4w 350ma IP66 Ultra Compact LED Driver
£16.00
£13.33 exc VAT
