Arrangements - Round for Flos

Interlinkable Round LED Rings

Class 3 - This fitting is low voltage and will require a transformer or driver.Yes, this product is dimmable - See the specifications tab for more detailsFlex can be shorted at the time of installation.Bulbs IncludedNo driver or transformer is supplied with this fixture (sold separately)

2700°K - Soft Warm White

2700°K - Soft Warm White

Product Ref: 51686

From £490.00 inc VAT

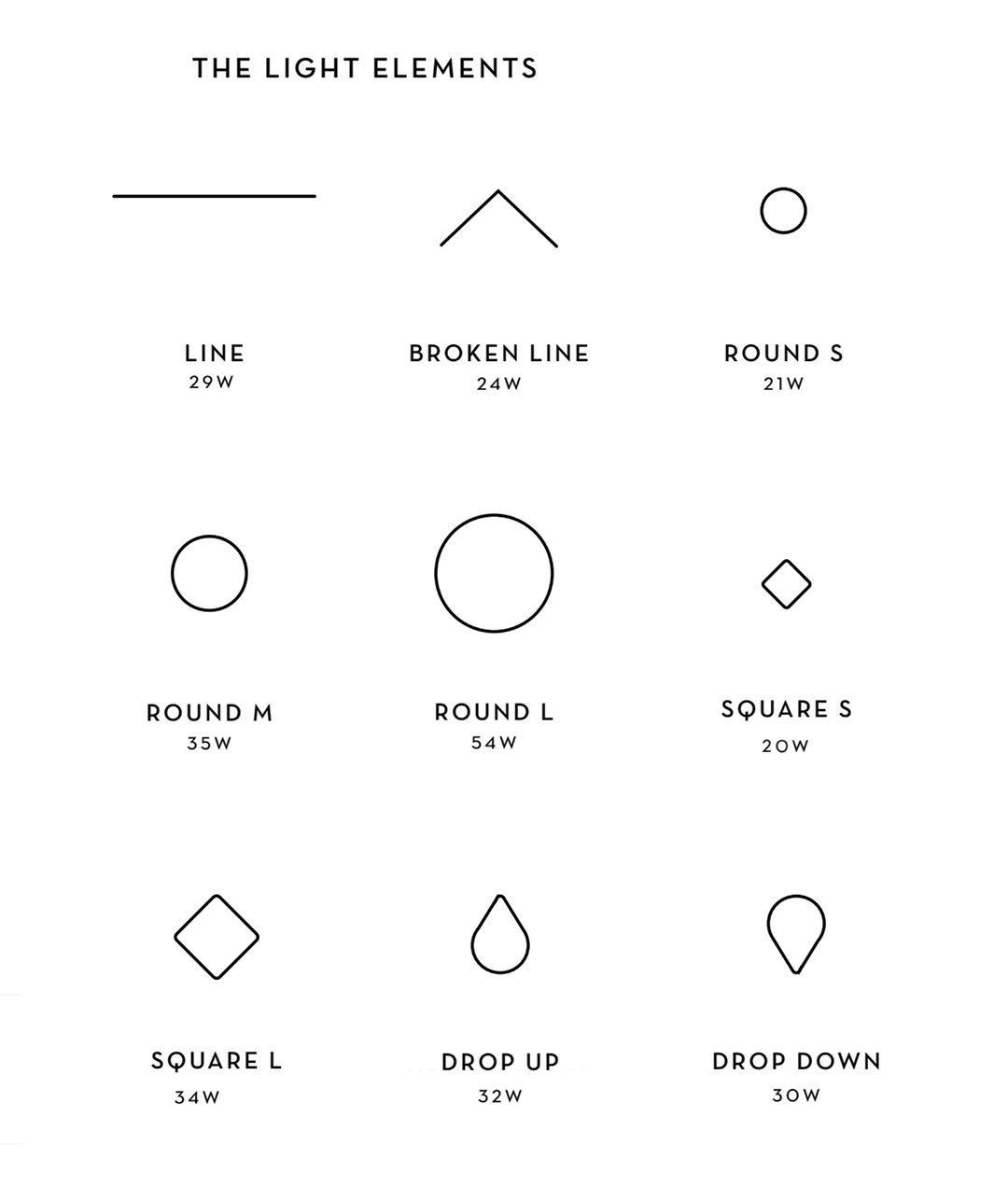

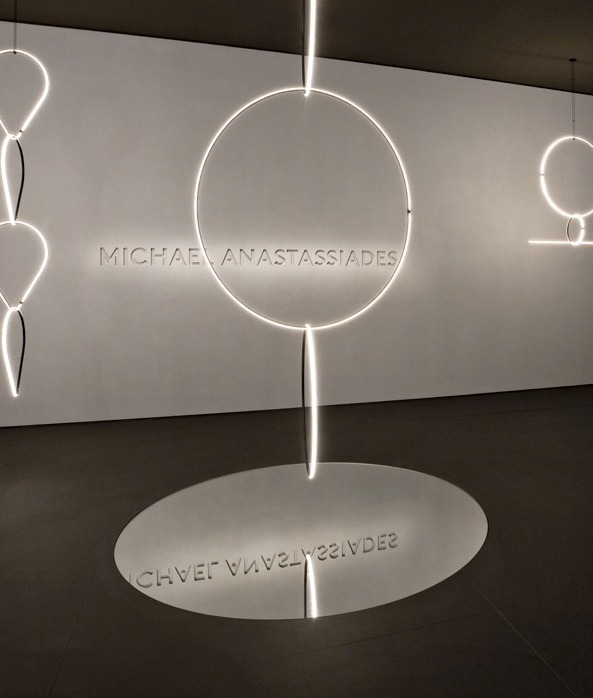

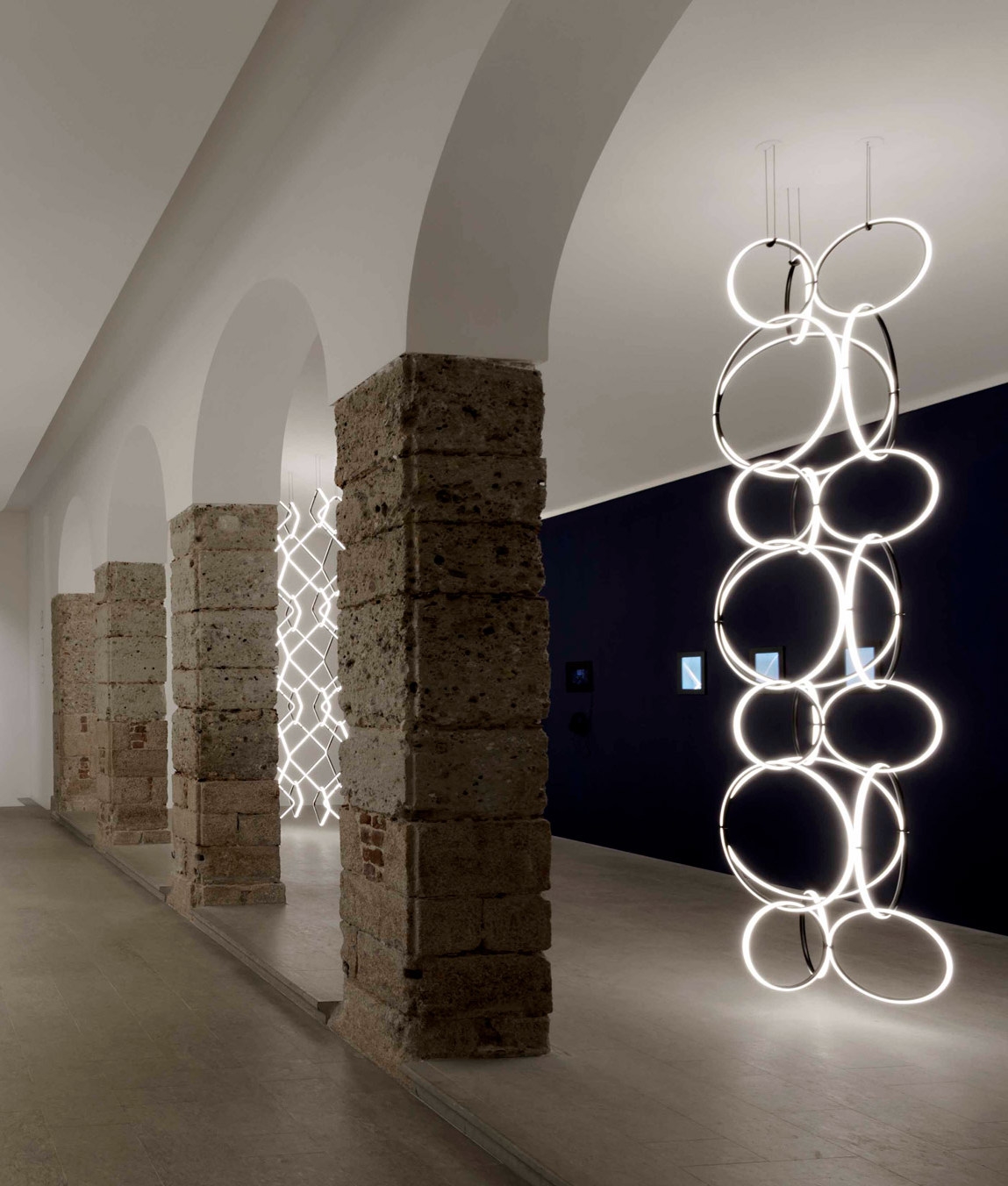

A selection of Round suspended LED light fixtures which can be used singularly or in multiples. There is also the option to use with other Arrangements in the Flos range such as the Square, Line or Drop Down. These suspended Rounds provide diffused lighting and are perfect for residential or commercial use. The body is extruded and is curved with black powder-coated aluminium, the diffuser which contains the LEDs is platinum optical silicone.

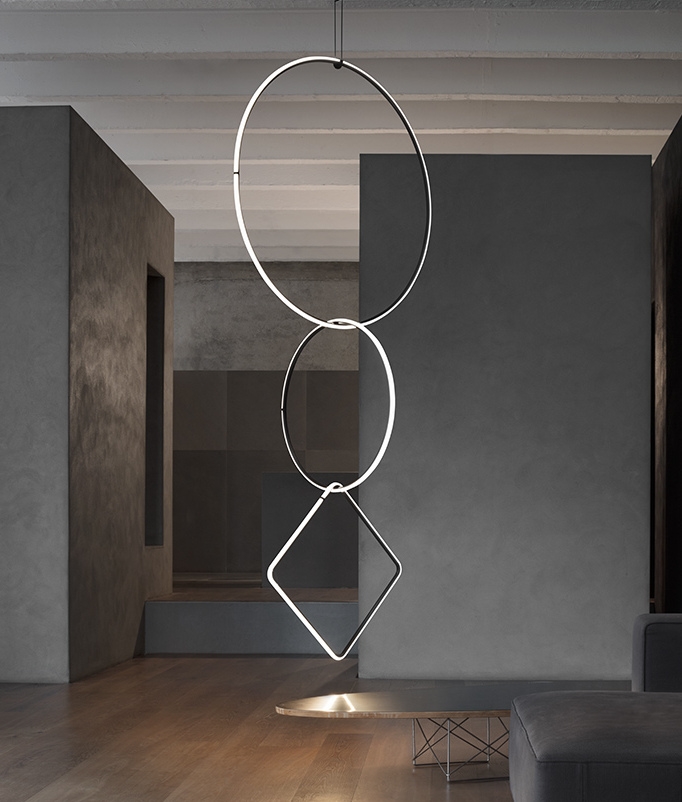

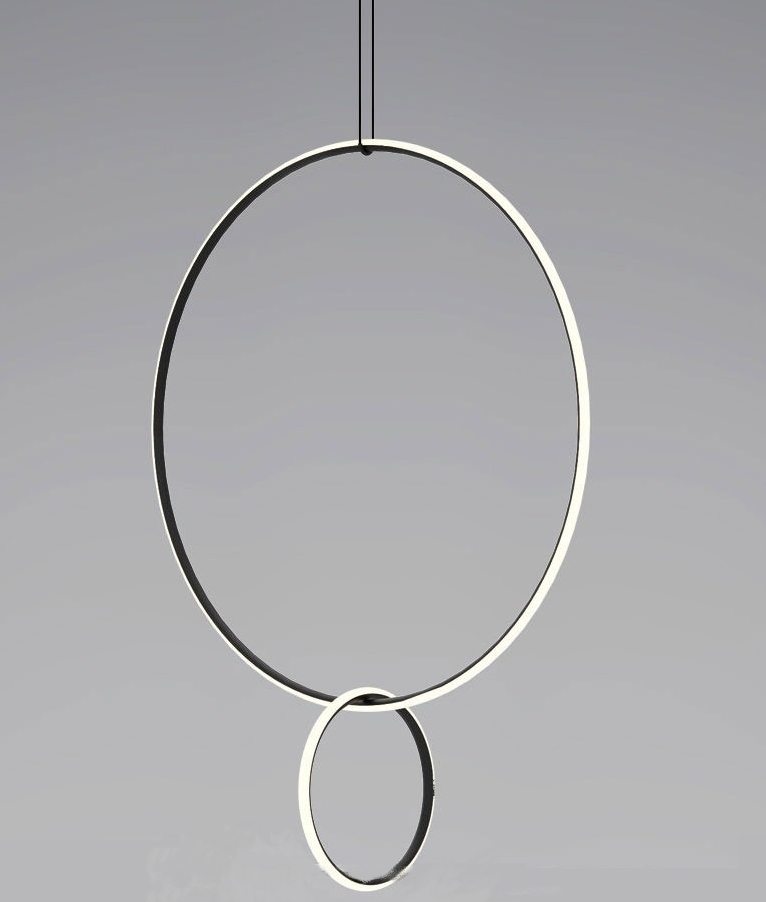

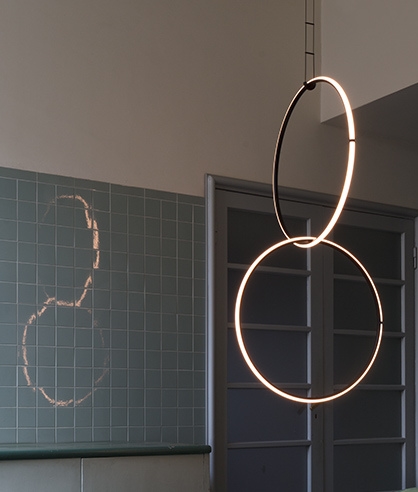

This listing is for the Arrangement Round which can be used to create a light fitting of your choice, choose either one single round (small, medium or large) or combine one size in multiples or three sizes in a drop. Each component can be connected to the power pack by means of an electrical and mechanical connection system designed for such a custom set-up.

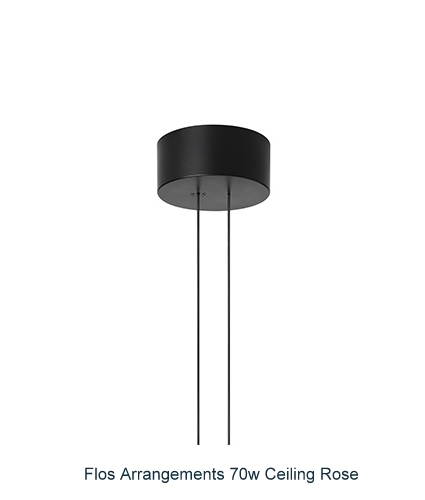

The ceiling roses/fixtures which enable you to hang the pendants, are available with two wattages  70 and 190 watt. Class III roses also available for installations with remote power supply, surface mounted version for installations on cement and a recessed version for plasterboard ceilings - please call us if you require these.

So, for example to create a fitting you will need to choose a ceiling rose which matches the total wattage of the rings you choose:

Arrangements medium Round (35w) + small Round (21w), equals a total of 56 watts therefore the 70w ceiling fixture is required.

or

Arrangements large Round (54w) x 3, equals a total of 162 watts therefore the fitting requires the 190w ceiling fixture is required.

The electronics integrated in the rose enables use of dimming systems: push, 1-10, potentiometer, DALI. In the absence of these systems, the light flow can be set with the push system included in the rose.

The length of the cables with the ceiling rose is 2.5 metres.

Dimensions:

Arrangements Round Small
Dia 398mm x flex 250mm
Weight 0.5kg
Single flex LED strip 21 watts 2100 lumen

Arrangements Round Medium
Dia 665mm x flex 250mm
Weight 0.8kg
Single flex LED strip 35 watt 3500 lumen

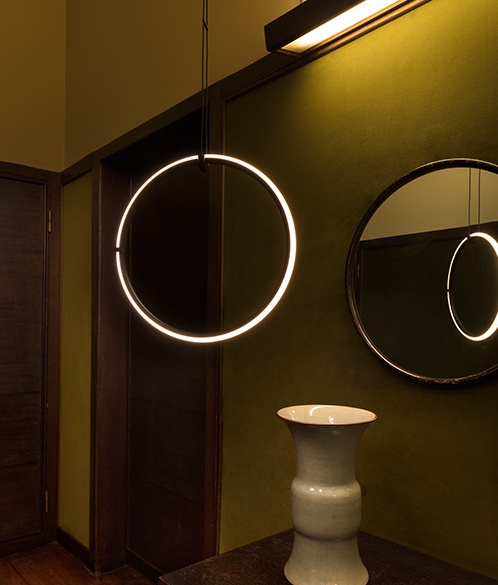

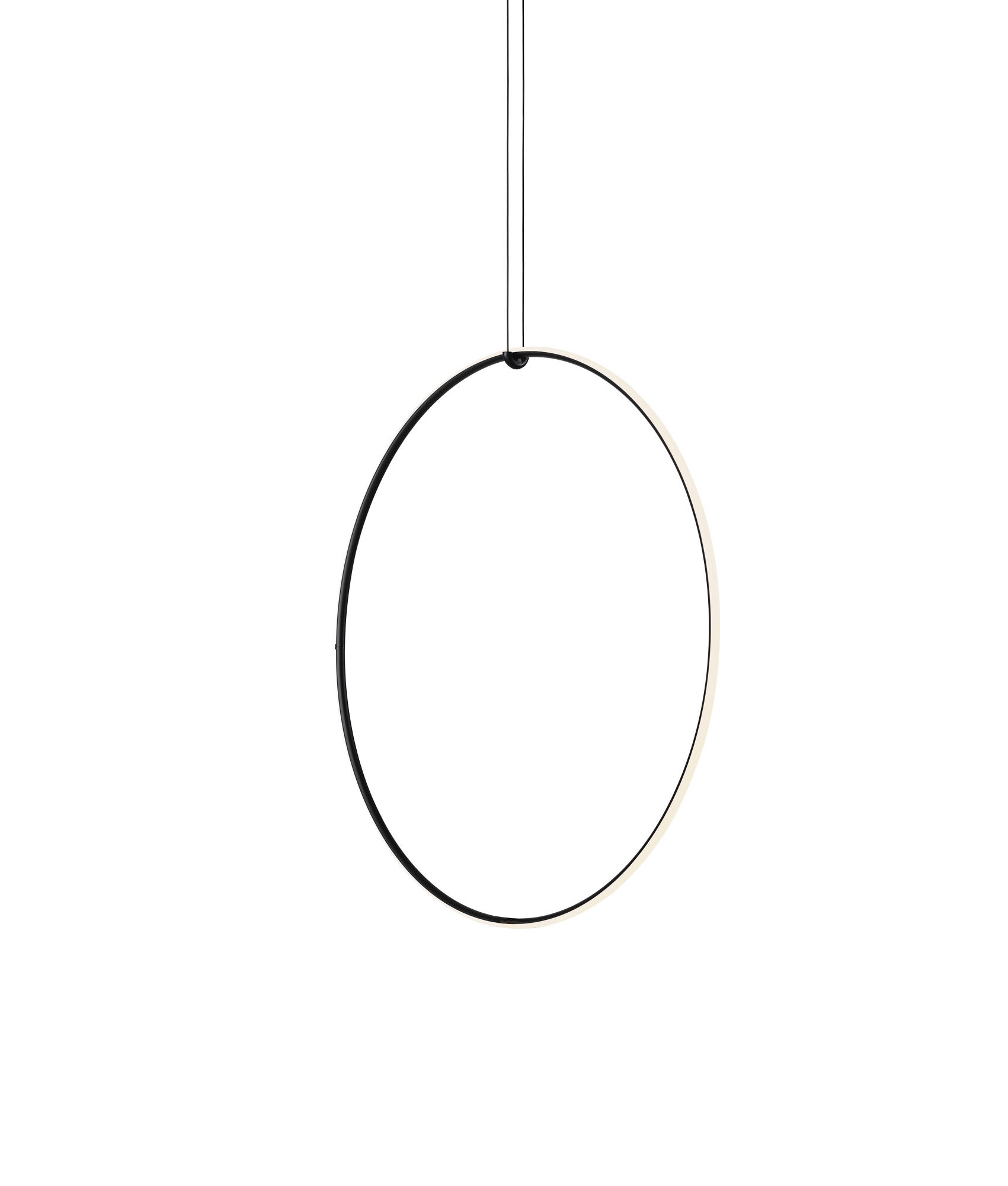

Arrangements Round Large
Dia 1020mm x flex 2500mm
Weight 1.3kg
Single flex LED strip 54 watt 5500 lumen

Please see associated Arrangement listings below.  If you require assistant with either the configuration or require a certain look, drop or general advice please call our technical team on 01780 767617 for advice and assistance.

Lamp TypeLong Life LED light source
Lamps IncludedYes
Dimmable?Yes - when using the specified equipment
Adjustable HeightYes – at time of installation
ConstructionAluminium
Wiring DetailsClass 3 - Requires a low voltage supply
Kelvin2700°K - Soft Warm White
DriverNo driver or transformer is supplied with this fixture (sold separately)
PDF Document(s)View PDF
Availability: IN STOCK 10-14 day delivery from European warehouse
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
FMF0406030
Arrangements - Round Small 21w
£490.00
£408.33 exc VAT
FMF0407030
Arrangements - Round Medium 35w
£655.00
£545.83 exc VAT
FMF0408030
Arrangements - Round Large 54w
£885.00
£737.50 exc VAT
FMF0416030
Arrangements - Small Ceiling Rose 70w
£440.00
£366.67 exc VAT
FMF0415030
Arrangements - Large Ceiling Rose 190w
£530.00
£441.67 exc VAT
