Arrangements - Square Small & Large for Flos

Square Shapes for the Flos Arrangements

Class 3 - This fitting is low voltage and will require a transformer or driver.Yes, this product is dimmable - See the specifications tab for more detailsFlex can be shorted at the time of installation.Bulbs IncludedNo driver or transformer is supplied with this fixture (sold separately)

2700°K - Soft Warm White

2700°K - Soft Warm White

Product Ref: 51704

From £476.88 inc VAT

These are the Square Small and the Square Large suspended LED light fixtures which can be used singularly or in multiples. There is also the option to use with other Arrangements in the Flos range such as the Round, Line, Drop Up, Drop Down or Broken Line. These suspended Squares provide diffused lighting and are perfect for residential or commercial use. The body is extruded and is curved with black powder-coated aluminium, the diffuser which contains the LEDs is platinum optical silicone.

This listing is for the Arrangement Square Small and Large which can be used to create a light fitting of your choice, choose either one single Square (small or  large) or combine one size in multiples or use together or with other shapes. Each component can be connected to the power pack by means of an electrical and mechanical connection system designed for such a custom set-up.

The ceiling roses/fixtures which enable you to hang the pendants, are available with two wattages 70 and 190 watt. Class III roses also available for installations with remote power supply, surface mounted version for installations on cement and a recessed version for plasterboard ceilings - please call us if you require these.

So, for example to create a fitting you will need to choose a ceiling rose which matches the total wattage of the rings you choose:

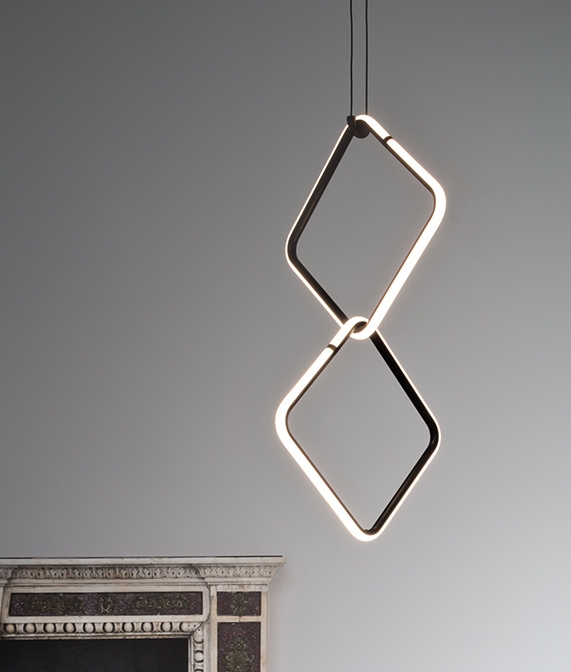

Arrangements Square Small (20w) x 2 equals a total of 40 watts therefore the 70w ceiling rose is required.

or

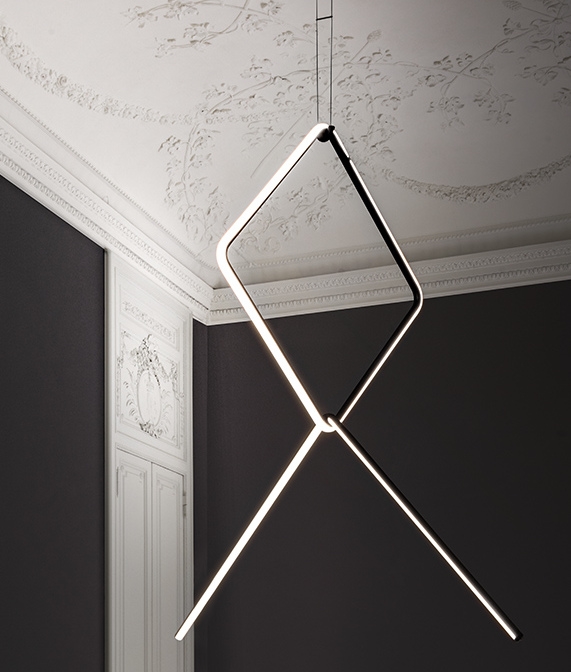

Arrangements Square Small (20w) + Broken Line (24w), equals a total of 44 watts therefore the 70w ceiling rose is required.

The electronics integrated in the rose enables use of dimming systems: push, 1-10, potentiometer, DALI. In the absence of these systems, the light flow can be set with the push system included in the rose.

The length of the cables with the ceiling rose is 2.5 metres.

Dimensions:

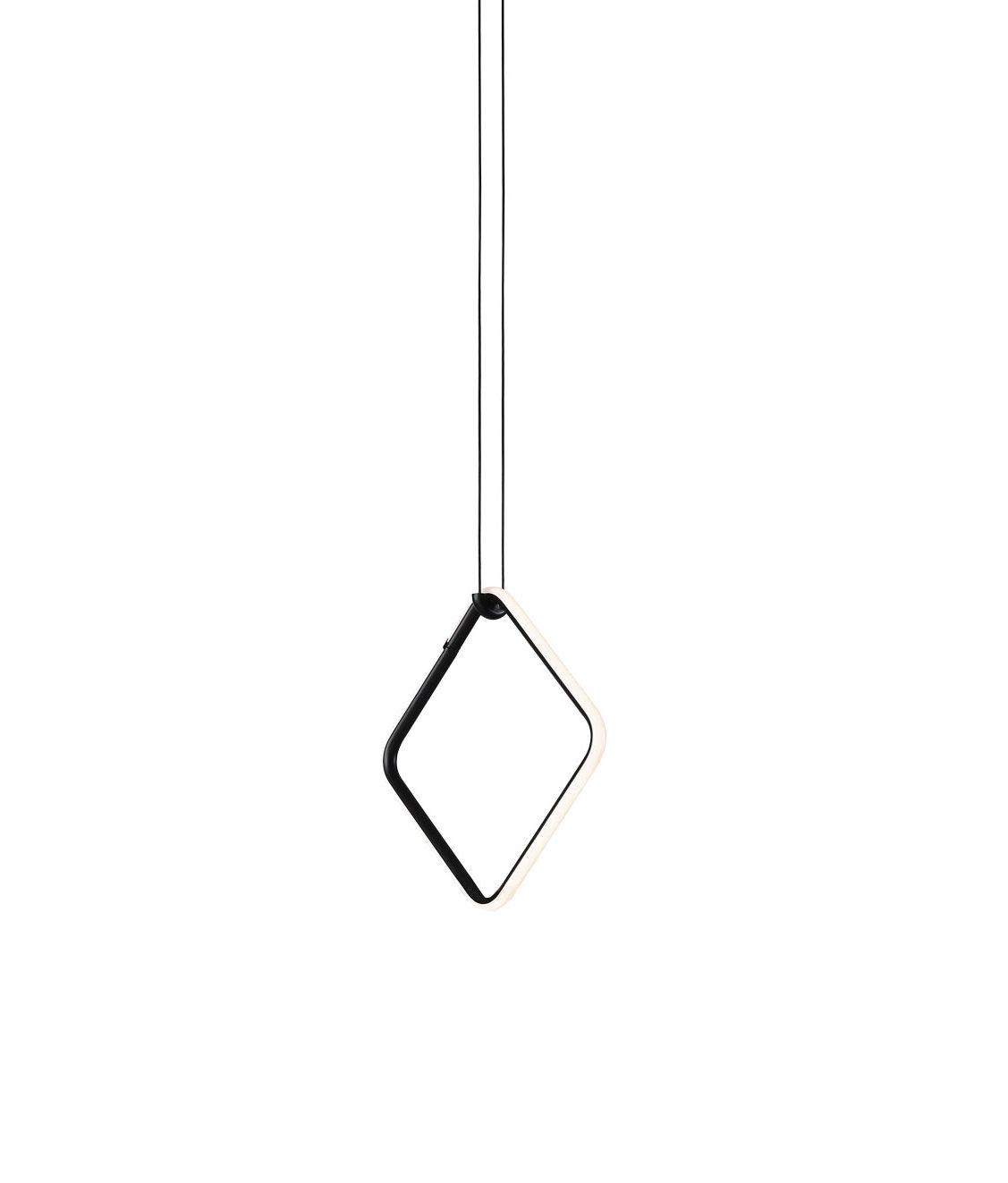

Arrangements Square Small
302mm x 395mm
Contains one LED flex strip 20 watts
Weight 0.5kg

Arrangements Square Large
512mm x 688mm
Contains one LED flex strip 34 watts
Weight 0.7kg

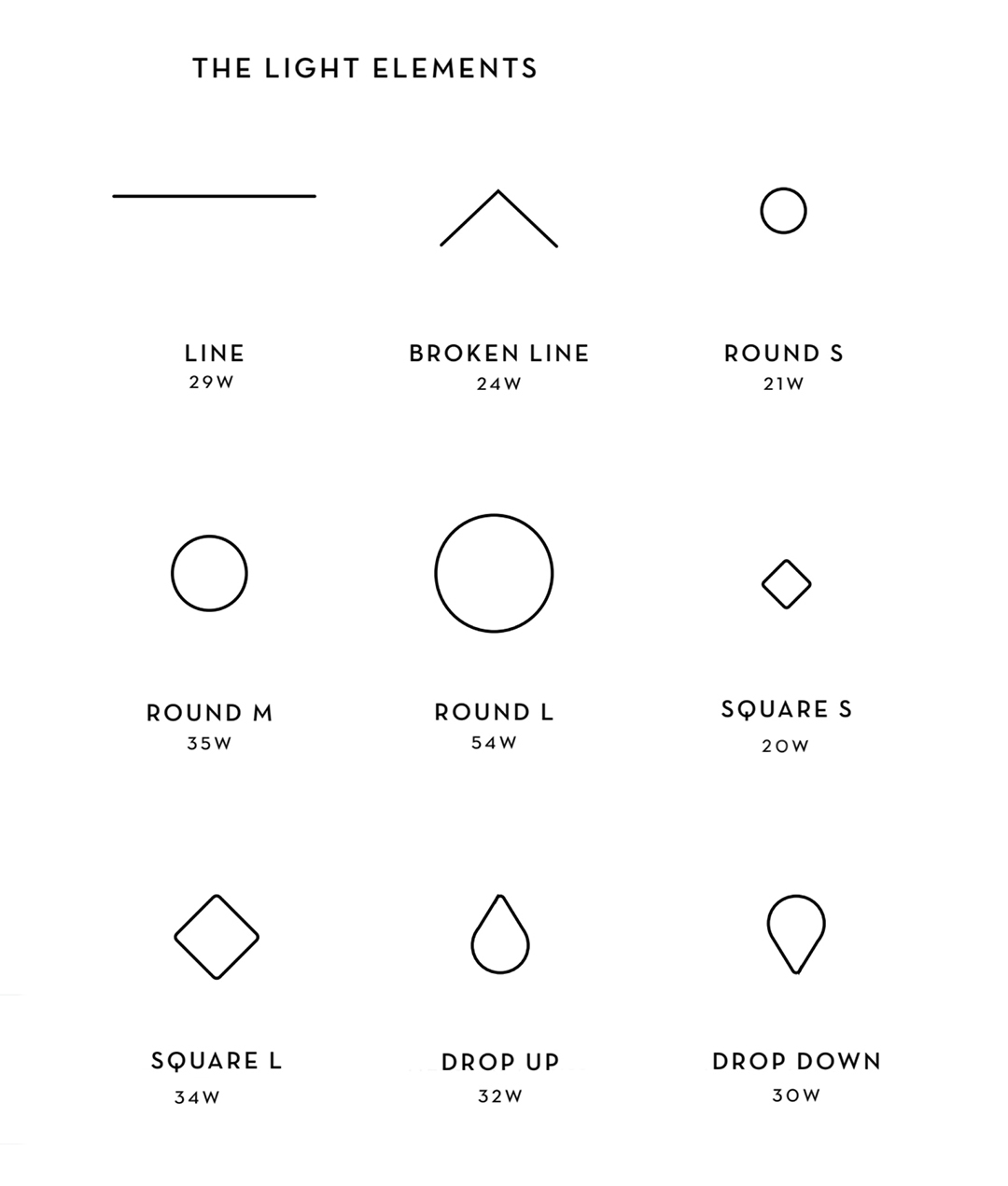

Please see other listings below for the shapes in the Arrangements range which can be combined in multiple ways to create bespoke fittings. If you know the shape you would like but are unsure what to order and what ceiling rose is required, please call our technical or sales team on 01780 767617 and they will assist you.

Lamp TypeLong Life LED light source
Lamps IncludedYes
Dimmable?Yes - when using the specified equipment
Adjustable HeightYes – at time of installation
ConstructionAluminium
Wiring DetailsClass 3 - Requires a low voltage supply
Kelvin2700°K - Soft Warm White
DriverNo driver or transformer is supplied with this fixture (sold separately)
Availability: IN STOCK 10-14 day delivery from European warehouse
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
FMF0410030
Arrangements - Square Small 20w
You save £68.12
£476.88
£397.40 exc VAT
FMF0409030
Arrangements - Square Large 34w
You save £81.87
£573.13
£477.61 exc VAT
FMF0416030
Arrangements - Small Ceiling Rose 70w
You save £55.00
£385.00
£320.83 exc VAT
FMF0415030
Arrangements - Large Ceiling Rose 190w
You save £66.25
£463.75
£386.46 exc VAT
