These are mains downlights, fixed and for use with E27 edison screw R80 (80mm diameter) reflector lamps. Available in brass, white or chrome finish to suit your decor and living space.

Easy to re-lamp; the bulb can be changed without removing the fixture from the ceiling. Mains fixture so no transformer is required.

Designed for use with mains R80 lamps up to 100 watts. Energy saving and LED lamps can be used.

These are very popular products and we endeavour to keep good stock levels but they sell out quickly, so if you require a quantity please call for up-to-date stock advice, 01780 767617.

Designed for installation in plasterboard ceilings, installation in lathe and plaster ceilings can be a little tricky.

Cut-out Diameter:
90mm

Overall Diameter:
125mm

Number Of Lamps	1
Lamp Type	E27 (ES) Base Mains Lamps
Lamps Included	No
Dimmable?	Yes - when used with a dimmable lamp (bulb)
Max Wattage	100w
Total Wattage	100w
Height	130mm
Diameter	125mm
Cut-Out Diameter	90mm
Construction	Steel - painted
Wiring Details	Class 2 - Double Insulated - Requires no Earth Connection
IP Rating	IP20

Does this product require a thermal protector?
If you are asking does this fixture need a fire hood the answer is no, however, a fire hood, or fire-rated fixtures should be used when installing into a fire compartment or installations that need to maintain a fire integrity (most do not).

Please could you let me know if these lights will be suitable for a 100 mm hole?
The cutout required is 90mm, therefore 100mm would be too large and not work for this fitting.

Please could you let me know if these lights are fire rated?
No, the design of this fixture is not fire rated. If installing in a fire compartment or a fire rated ceiling you will require a fire hood.

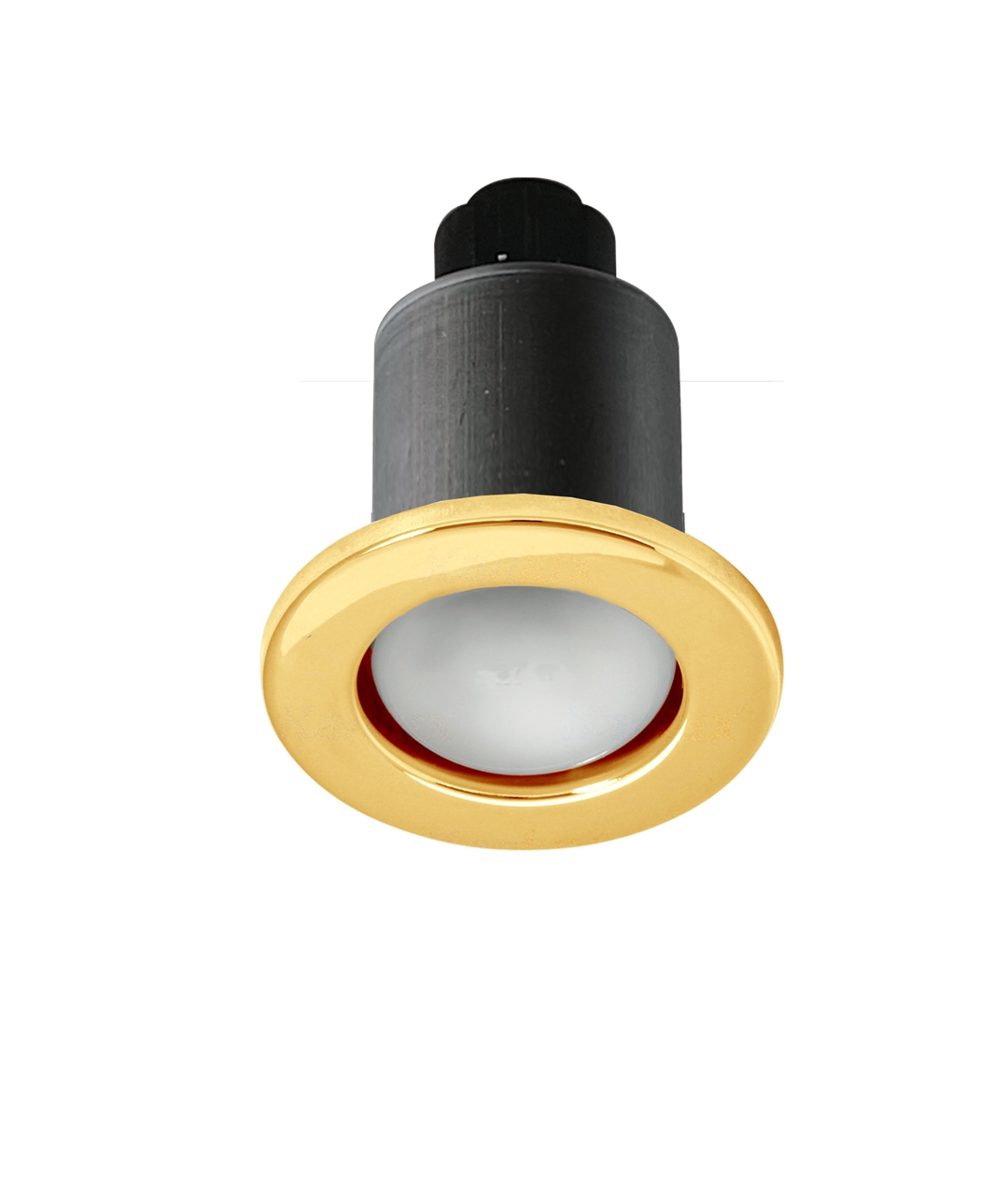

Fixed Downlight For R80 Reflector Lamp

Brass, White or Chrome Finishes
