Surface Mounted LED Panel - Built-In Microwave Movement Sensor

Energy costs are high for business customers but you can save on your electricity by switching off lights where they are not required. These lights have a hidden microwave sensor that removes the onus from individuals to save costs by automatically turning off lights in unoccupied areas.

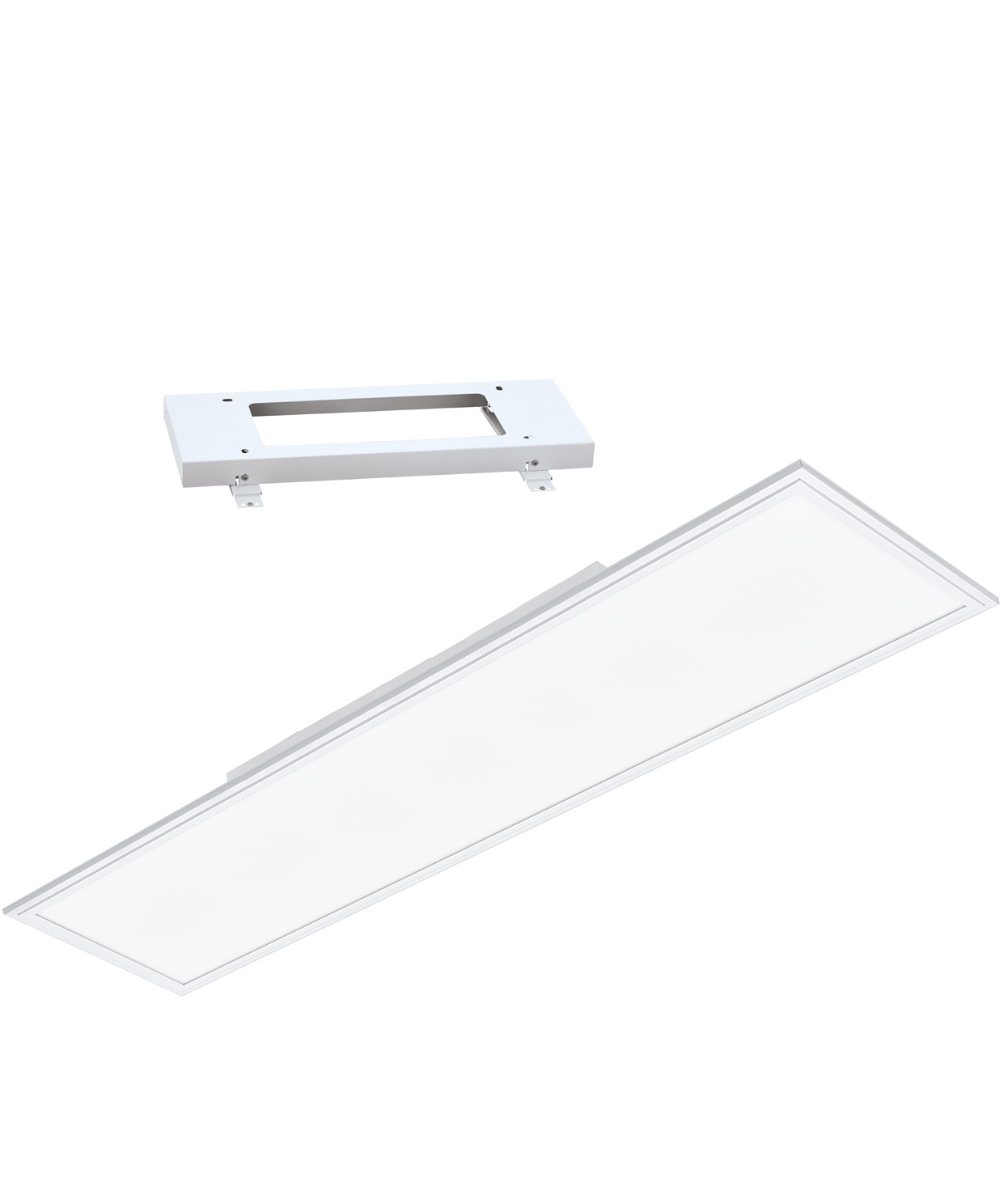

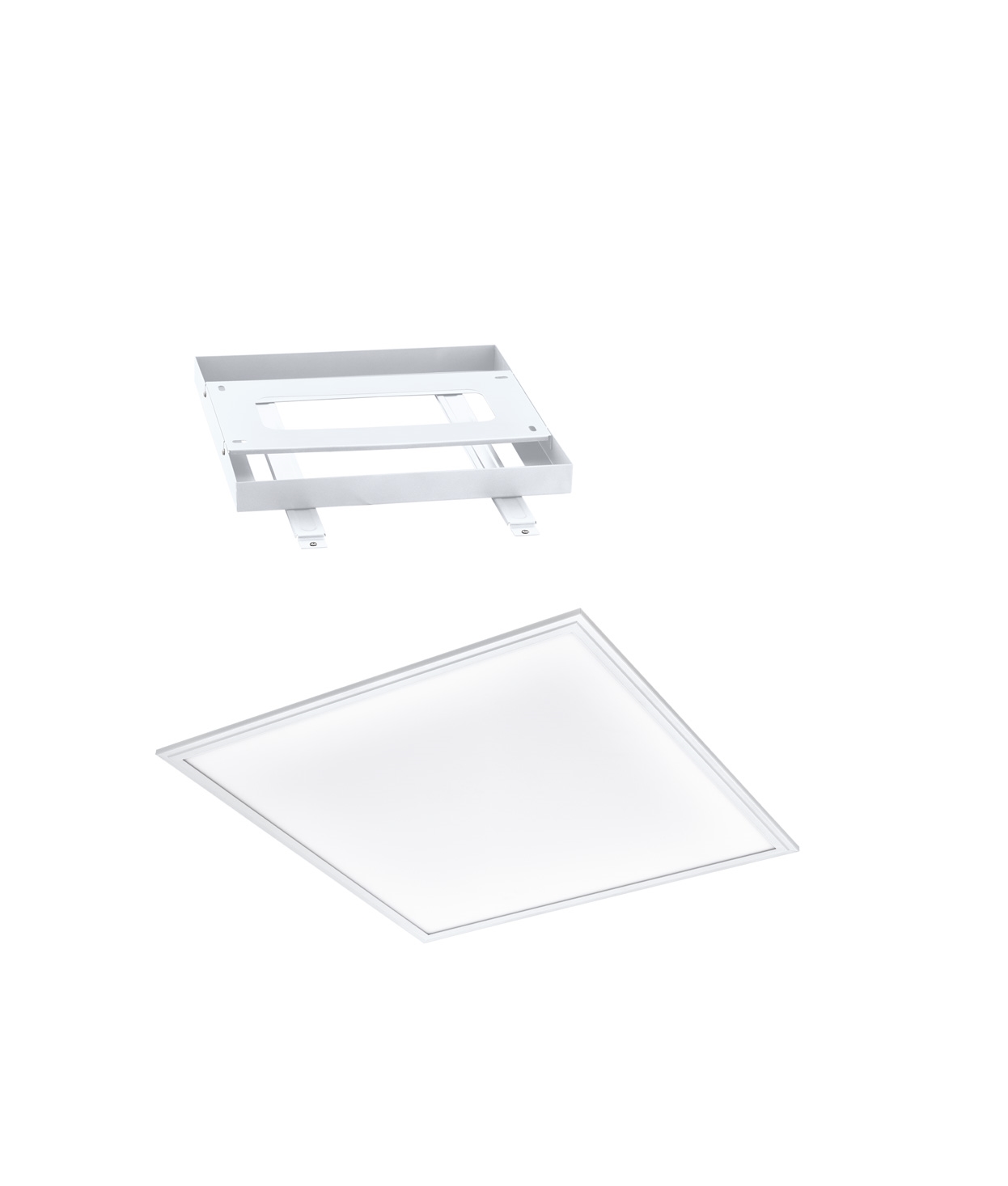

The design makes use of them easy to install onto all ceiling types and their size makes them suitable for recessed installation into most types of suspended ceilings too.

Microwave sensors are significantly more accurate than PIR movement detectors with a wide and large detection area of up to 12 metres and unlike PIR the beam does not have to have a clear sight of moving objects. The lights can be programmed to only operate when the natural light level is below 25 lux.

The LEDs are 4000°k a neutral white light.

Dip switches can be set when installed to determine:

Time illuminated - 5 seconds / 1 minute / 5 minutes / 15 minutes
Detection area - full / 50%
Daylight sensor - 25 lux / off

Dimensions and performance

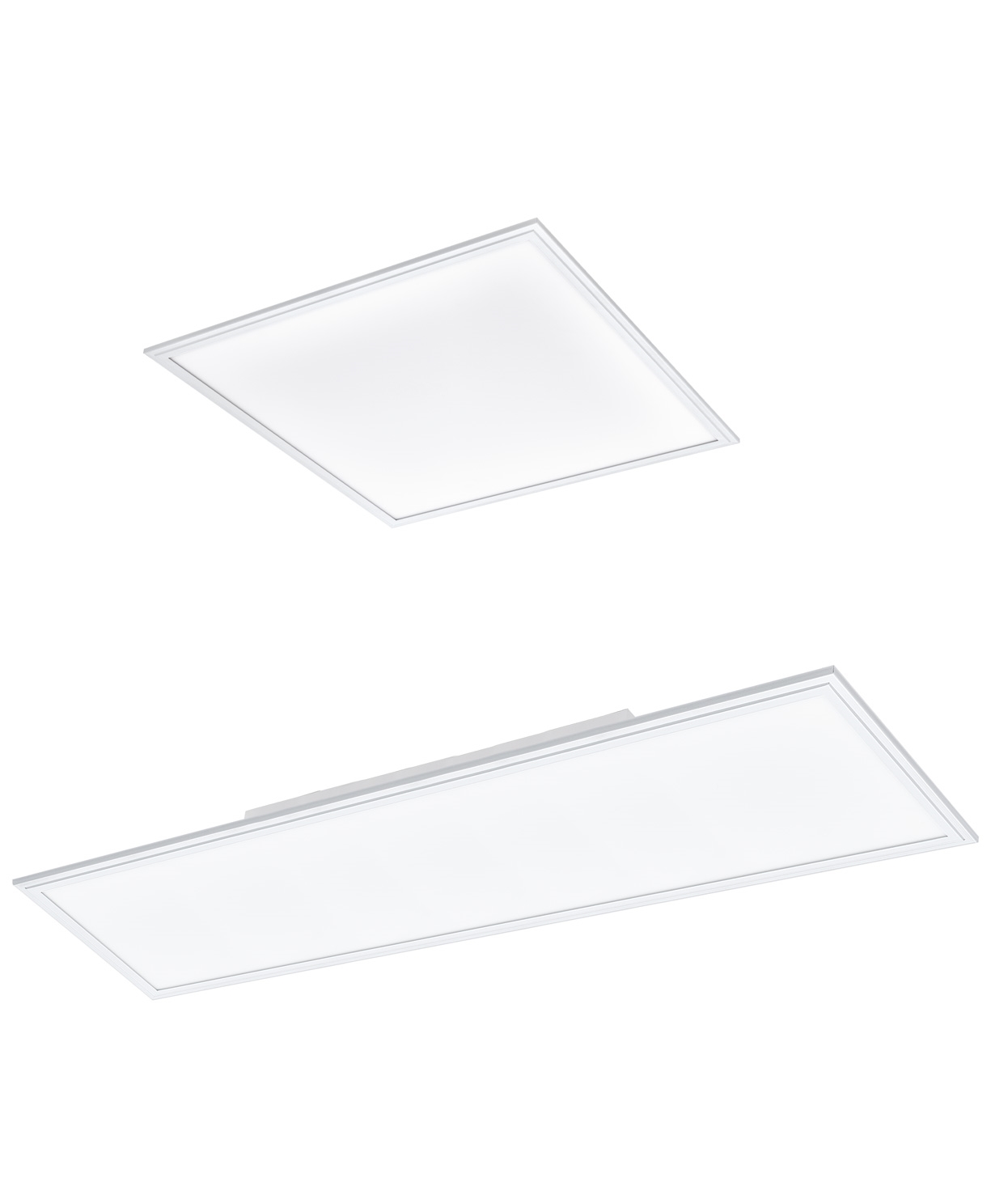

Square
595mm x 595mm
35 watt - 4600 lumens

Rectangular
1195mm x 295mm
35 Watt - 5000 lumens
