Stainless Steel Up & Down with PIR Sensor

Name: Stainless Steel Up & Down with PIR Sensor
Brand: Lighting Styles
SKU: 2808
Price: 49.3617 GBP
Availability: InStock
Rating: 8 (8 reviews)

Adjustable Light Lux

Protected from water spray from all directions

Class 1 – This fitting will require an earth connection.

Product Ref: 2808

£49.36 inc VAT

Description

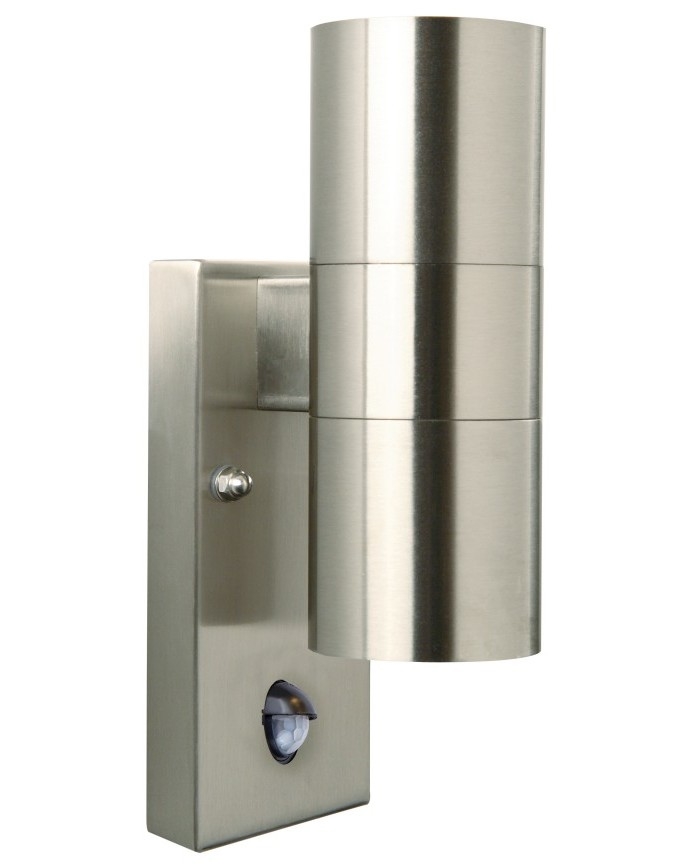

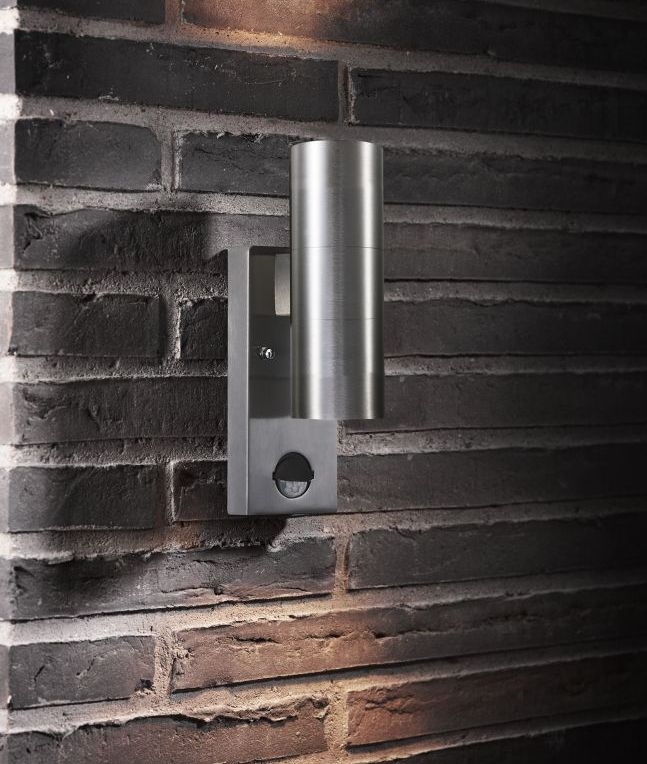

This fitting has recently been upgraded and fitted with a new type PIR sensor so we have amended our listing to reflect the changes. Stainless steel wall mounted up/down light with built in PIR sensor. Switches on when approached making it safer for pedestrians as well as deterring unwanted visitors.

See PDF document below for installation instructions.

Made in stainless steel, to avoid corrosion oil is supplied with the fitting and should be applied regularly.

The fitting has fixing screws and tube of oil to maintain the lustre of the brushed stainless steel.

Angle of detection 110.

Comes on at an adjustable range between 10 and 20,000 lux.

PIR trigger light for an adjustable 10 seconds to 5 minutes.

Additional movement detected re-triggers light for another set period.

There is no manual override (permanently on) with this light.

The maximum detection range can also be adjusted with the maximum achievable being 8m depending on weather conditions and mounting height (1.5 - 2.5m recommended)

Specification

Number Of Lamps	2
Lamp Type	GU10 Base Mains Lamps
Part L Compliant Luminaire	No
Lamps Included	No
Dimmable?	No
Max Wattage	35w
Total Wattage	70w
Width	60mm
Height	200mm
Depth/Projection	120mm
Construction	Stainless Steel Brushed
Wiring Details	Class 1 - Requires an Earth Connection
IP Rating	IP54
PDF Document(s)	View PDF

Bulbs

	Pro HD Dimmable GU10 LED Lamp Warm White 520 Lumens - FOX05963
	Pro HD GU10 LED Lamp Warm White 520 Lumens - FOX05960
	Pro HD Dimmable GU10 LED Lamp Daylight White 520 Lumens - FOX05965
	Pro HD Dimmable GU10 LED Lamp Neutral White 520 Lumens - FOX05964
	Pro HD GU10 LED Lamp Daylight White 520 Lumens - FOX05962
	Pro HD GU10 LED Lamp Neutral white 520 Lumens - FOX05961
Click here to choose your bulbs

Frequently Asked Questions

My builder has given me no oil to treat the finish of the lights. I have 3. What should I get?
Any light machine oil will suffice. Apply and then wipe with a clean lint-free cloth.

Is the s/s ok for a coastal property what range &angle does the pir have
This finish is not suitable for coastal areas. Angle of detection 110. We have a coastal section on the website where lights are designed for that location.

Is it possible to overide the PIR and have this light on for a constant amount of time? Or is it purely just PIR based to turn on?
There is no manual override (permanently on) on this light.

Can I use the GU10 mains Philips perfect fit led spot lamp with this fixture?
Yes both the Philips perfect fit and our ideal fit lamp woul be well suited to this fixture.

Is it possible to wire this light to a conventional plug? Does this light require a transformer?
If desired this fixture can simply be connected to a mains supply via a three pin plug. The fixture uses mains GU10 lamps so does not need a transformer.

What grade of stainless steel is this fitting?
Its not quite marine grade, its one less. Its comes with some oil and its recommended that you use this every 3 months.

I am looking for an external light which can also be controlled from an internal switch - presumably this is how it can be left on for up to 8 hours? Is there a recommended distance between the top of the light and the wooden soffit above? How far away will the pir pick up movement (within the 100 degree) I currently have a light which picks up cars on the road which is a nuisance as the light is on virtually all night. I look forward to hearing from you
The specification on this fitting has recently changed (specifically the PIR) and our listing has been amended. It is no longer possible to override the PIR`s timing, however you could install a switch to stop it coming on at all. All the other information you require should now be in the listing.

Availability: IN STOCK 2-3 working day dispatch
