This out of the box under cabinet kitchen LED strip light solution solves the headache of installing a tape and profile system.

The profiles offered here are two metres long. They come complete with an opal diffuser, fixing clips, end caps (one of which has a hole that allows cable entry). For longer lengths jhust leave off the end caps and align the profiles..

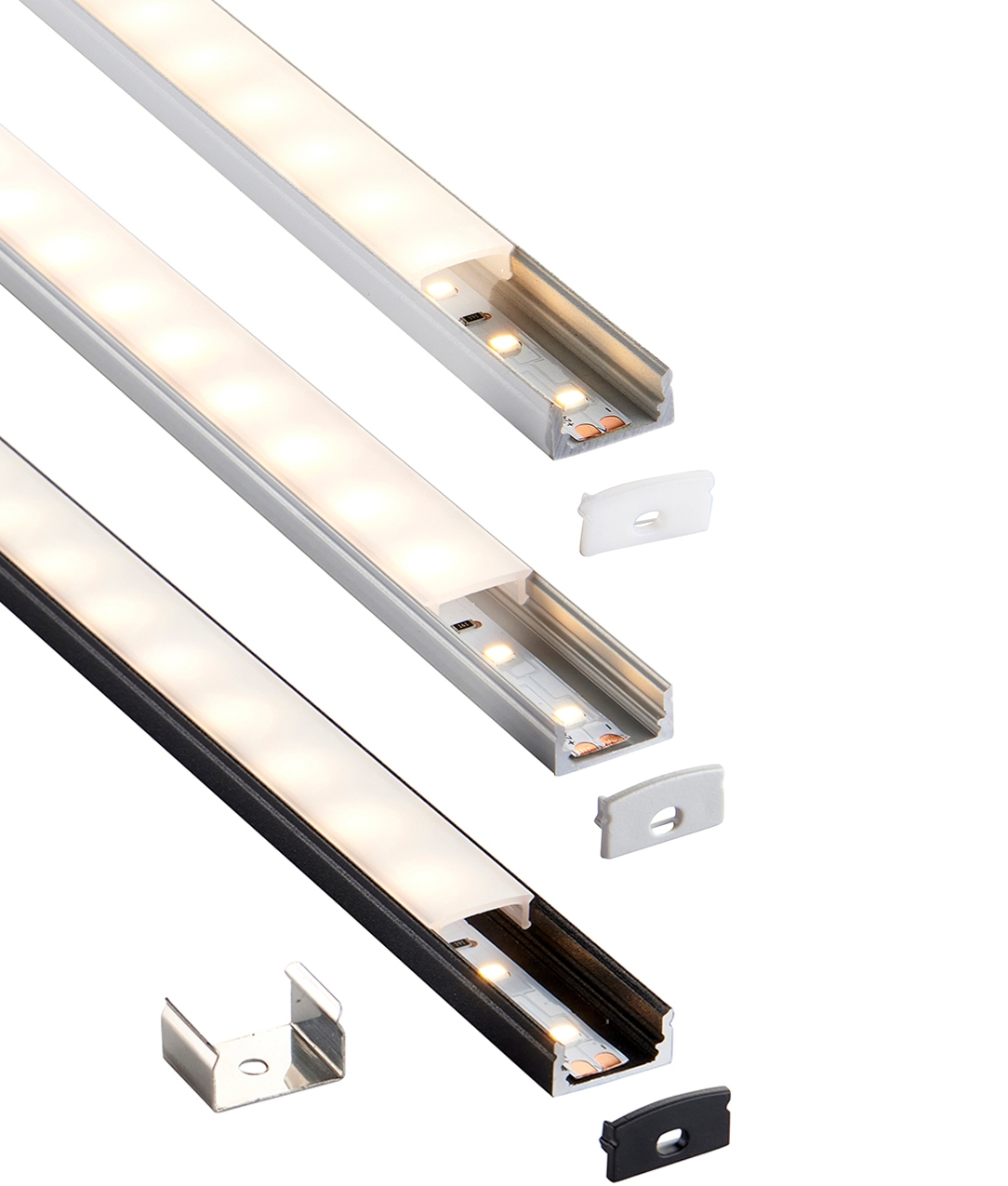

The Standard Profile is 17mm wide, 9mm deep and can accommodate a single width of LED tape.

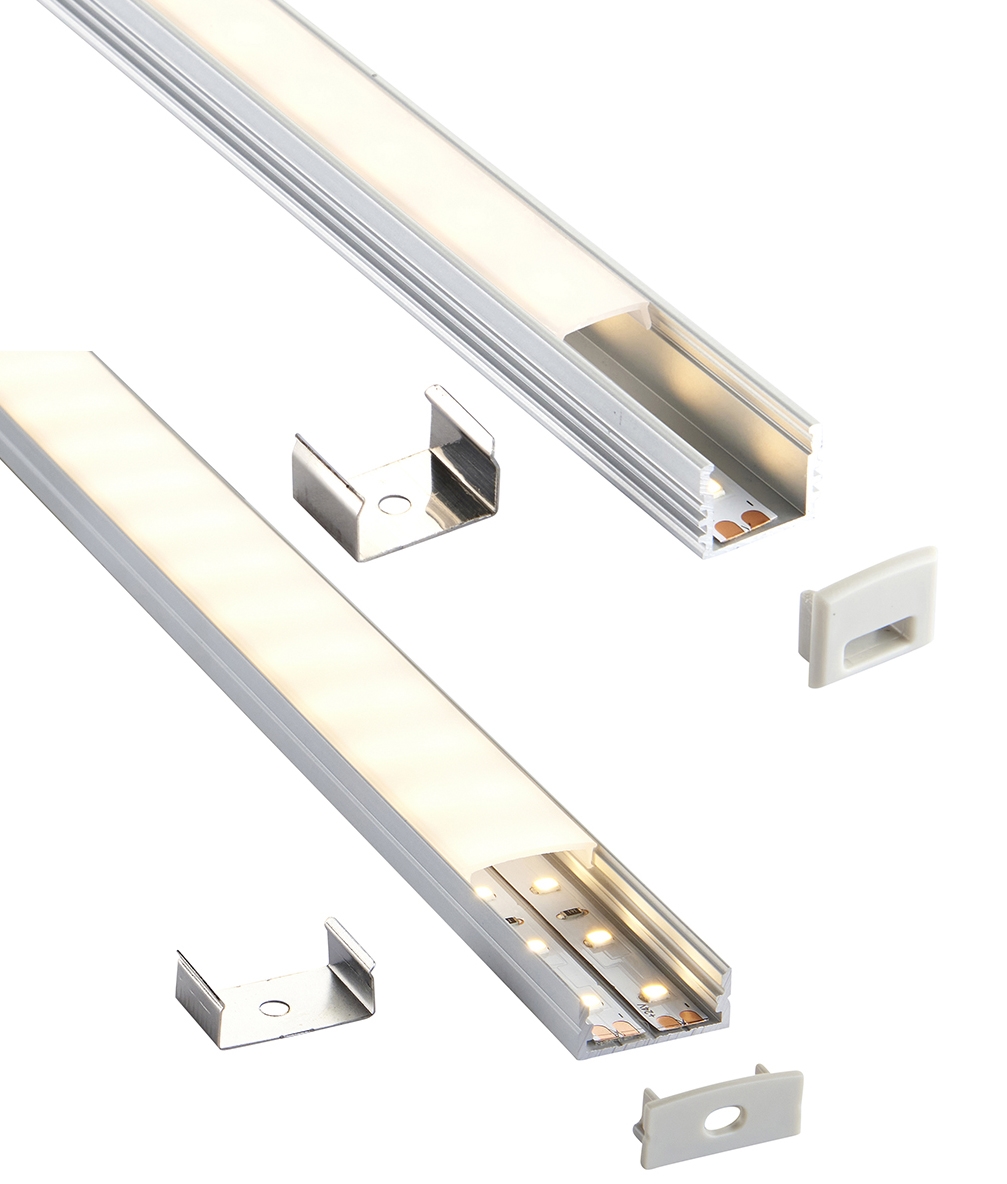

The Deep Profile is 23mm wide, 21mm deep and can accommodate two LED tapes side by side.

The Wide Profile is 23mm wide, 11mm deep and can accommodate two LED tapes side by side.

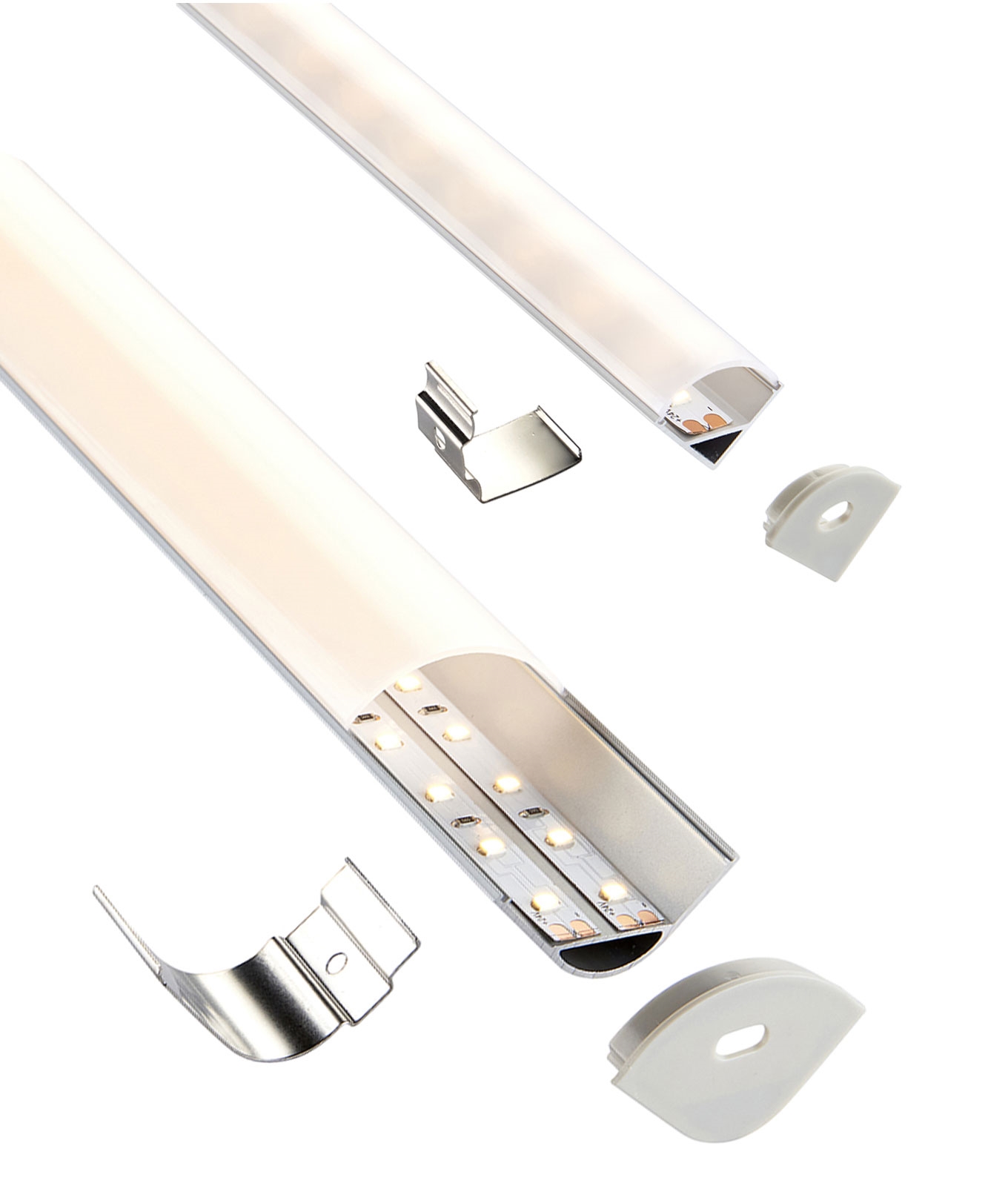

The Standard Corner Profile is 16mm and can accommodate a single width of LED tape.

The Large Corner Profile is 30mm and can accommodate two LED tapes side by side.

All profiles can be cut down to size on-site with a junior hacksaw or mitre saw. If required the rear can be drilled for cable entry.

We offer two LED tapes with this solution. They are both 8mm wide and operate on a 12 volt DC. They can be cut safely at 50mm intervals where marked.

5 Watt - with 60 SMD 2835 LEDs per metre @ 16.6mm centres. The output of 520 lumens per metre provides around 500 lux at a 50cm mounting height.

10 Watt - with 120 SMD 2835 LEDs per metre @ 8.3mm centres. The output of 1040 lumens per metre provides around 1000 lux at a 50cm mounting height.

Note: there is a maximum length of tape that can be fed from one end of the tape. 5 metres on 5 watt and 3.5 metres on 10 watt. Longer runs must be feed from both ends or by two pieces of tape.

Installation in brief

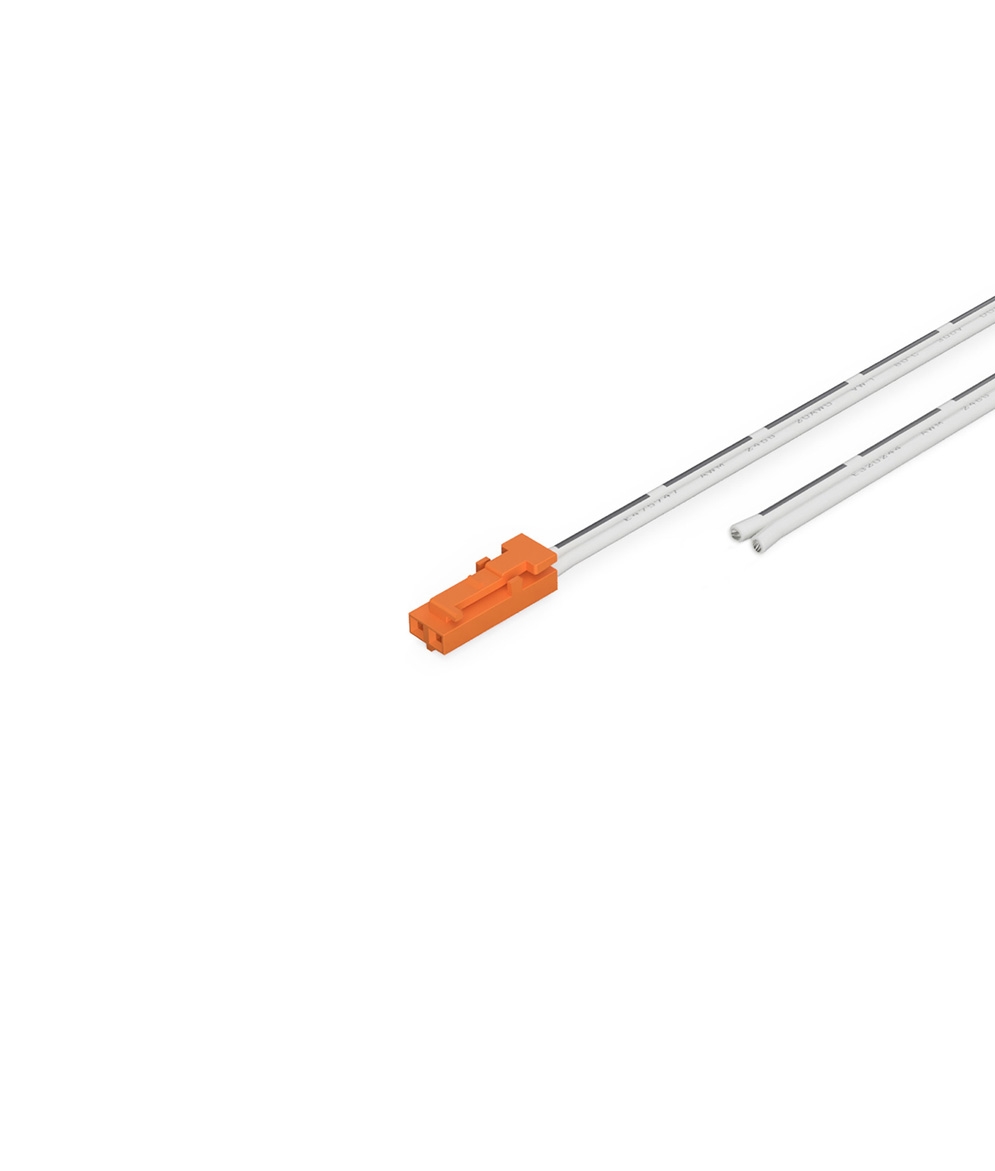

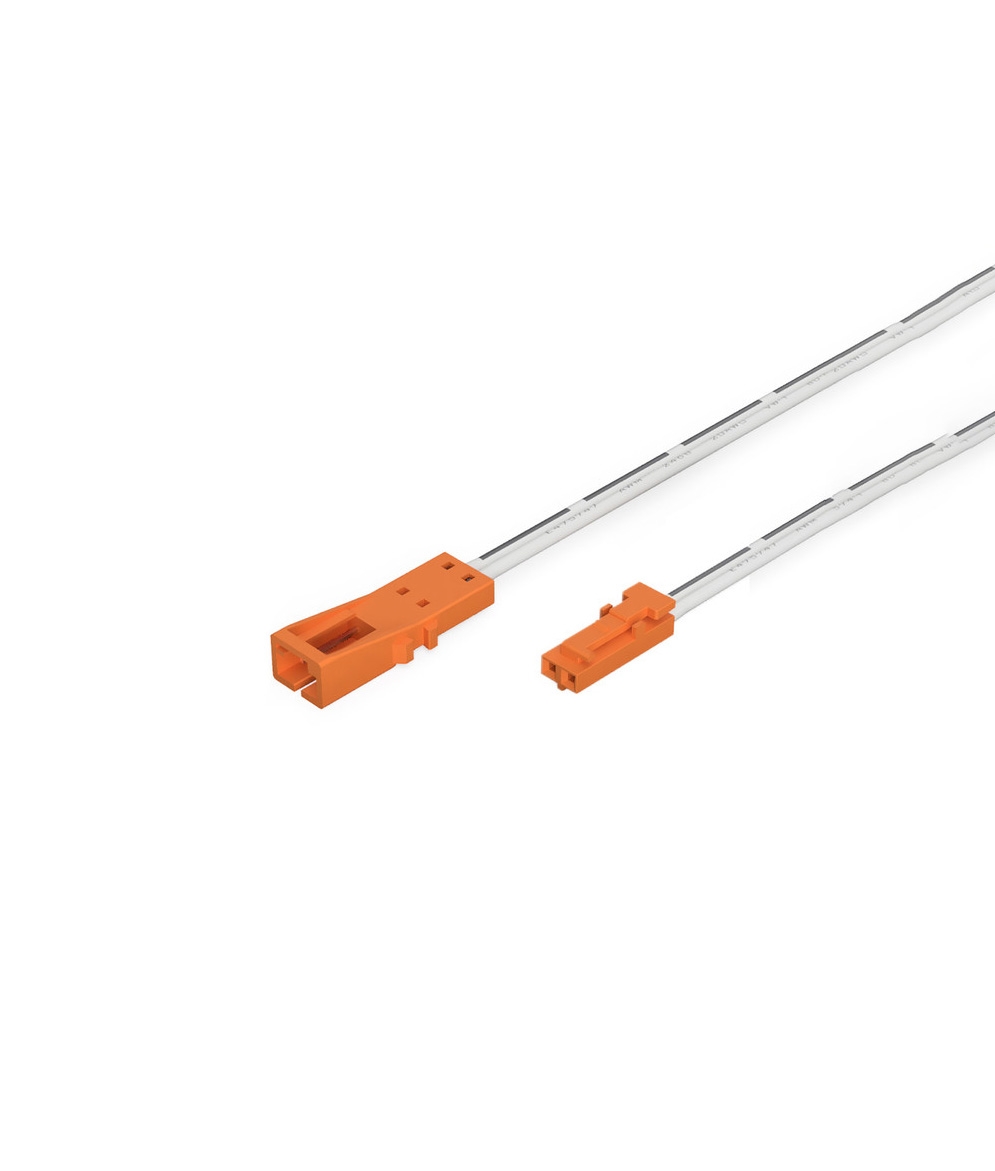

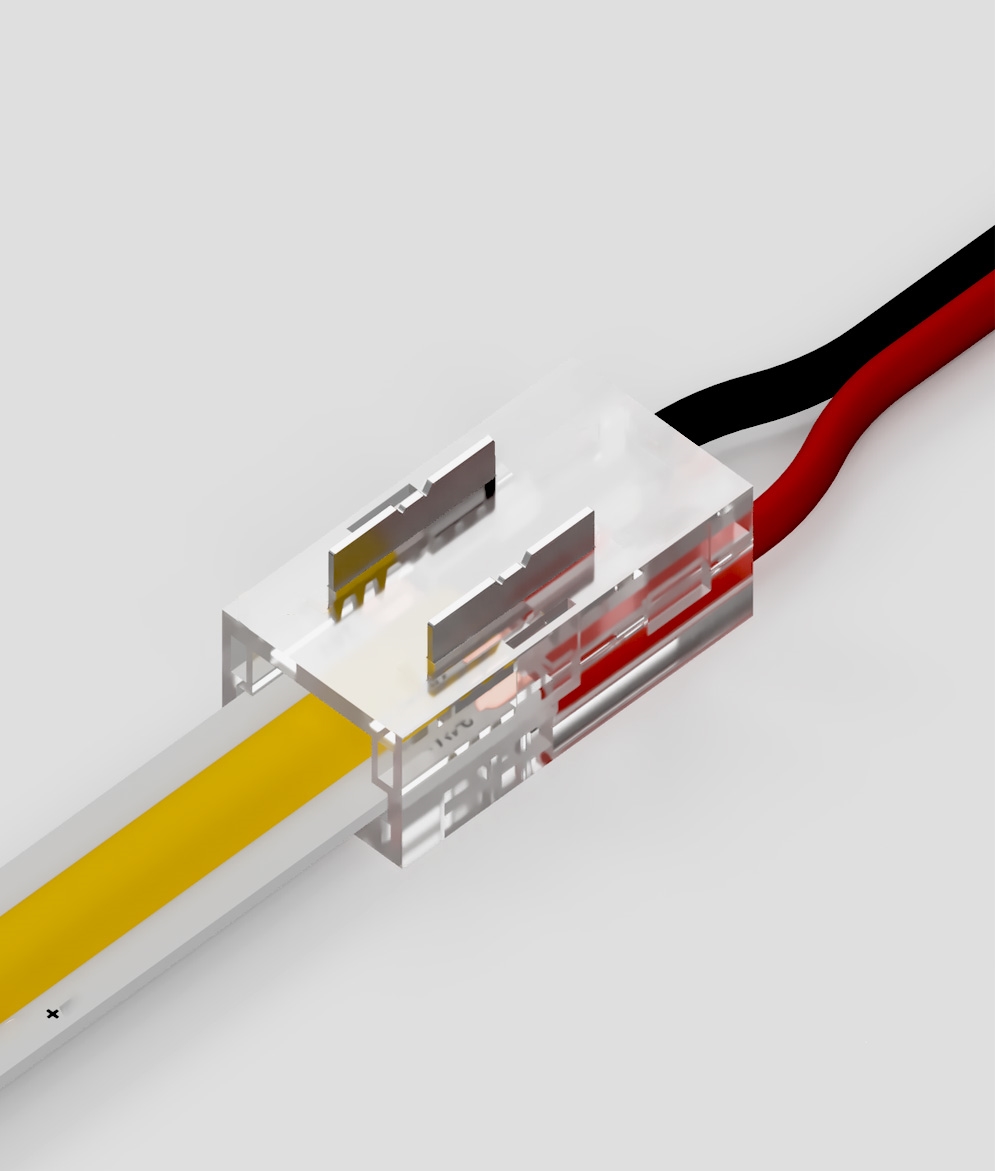

LED Tapes are supplied without soldered leads for ease of installation. The input leads offered are 1500mm long, have a plug colour-coded plug on one end that fits the LED driver. The other bare end is threaded through the furniture or cabinet, through the end cap or the back of the profile, and are inserted into the connector. Clip the connector onto the tape (observing polarity), peel off the cover to the 3m adhesive strip on the back and stick to the profile. 1500mm extension leads for input cables are offered.

On/Off & Dimming

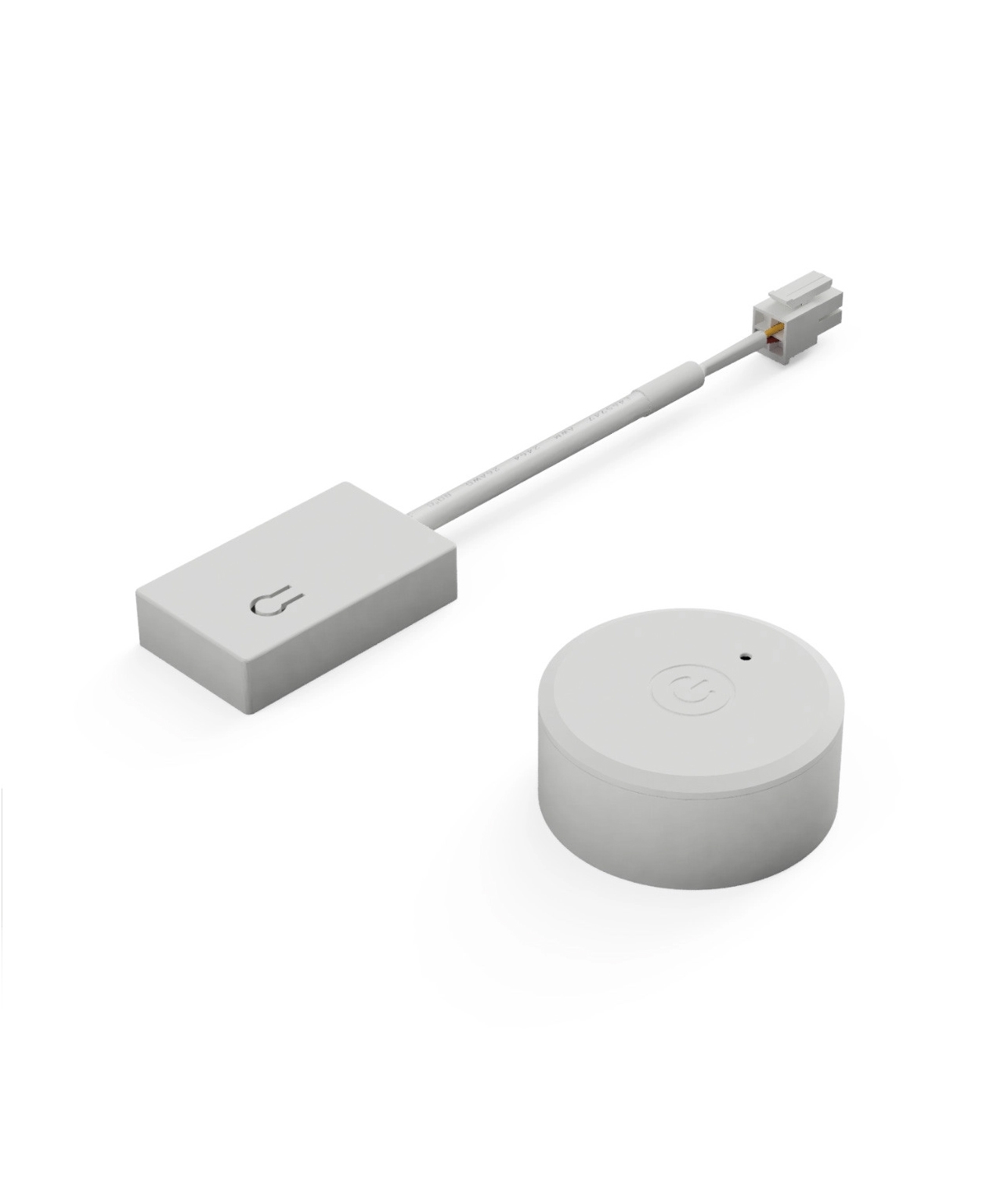

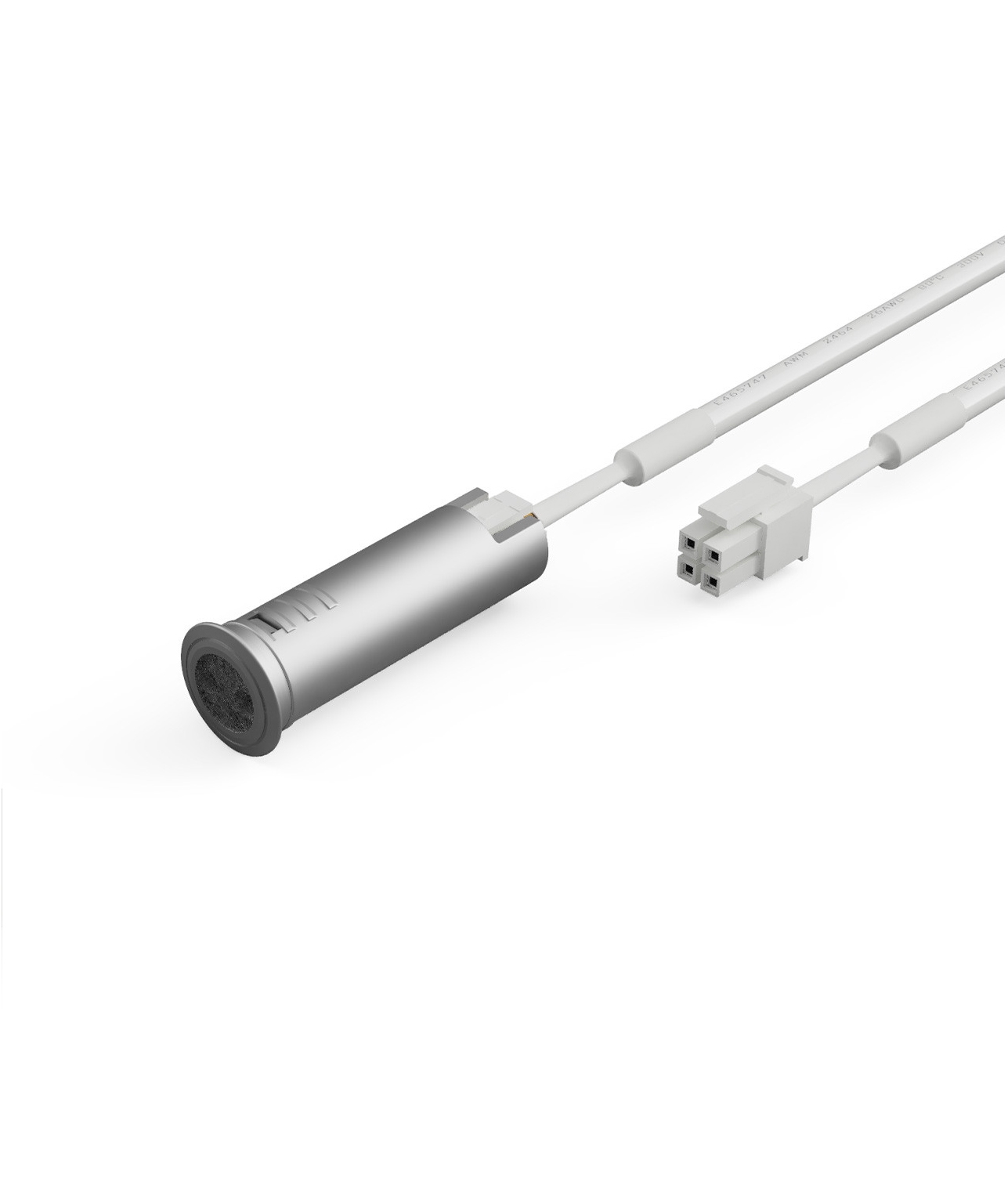

The drivers can be switched on/off by a normal wall switch, or fused spur. If you want localised switching under the cabinet we suggest the hand movement sensor - wave to switch on or off. If you want to dim the LEDs we suggest the touch on/off and hold to the dim sensor. This is battery operated, wireless has a button battery in the sensor. If you wish to have more two or more sensors in various places contact us for information.

As always the choice over what colour LEDs you choose is up to you. But we strongly suggest that neutral white is used in contemporary/modern kitchens that use white, grey and silver-flecked granite while warm white LEDs are selected for kitchens with wood grain, warm coloured doors and worktops.

Lamp Type	Long Life LED light source
Lamps Included	Yes
Depth/Projection	13mm
Construction	ABS Polycarbonate
Wiring Details	Class 3 - Requires a low voltage supply

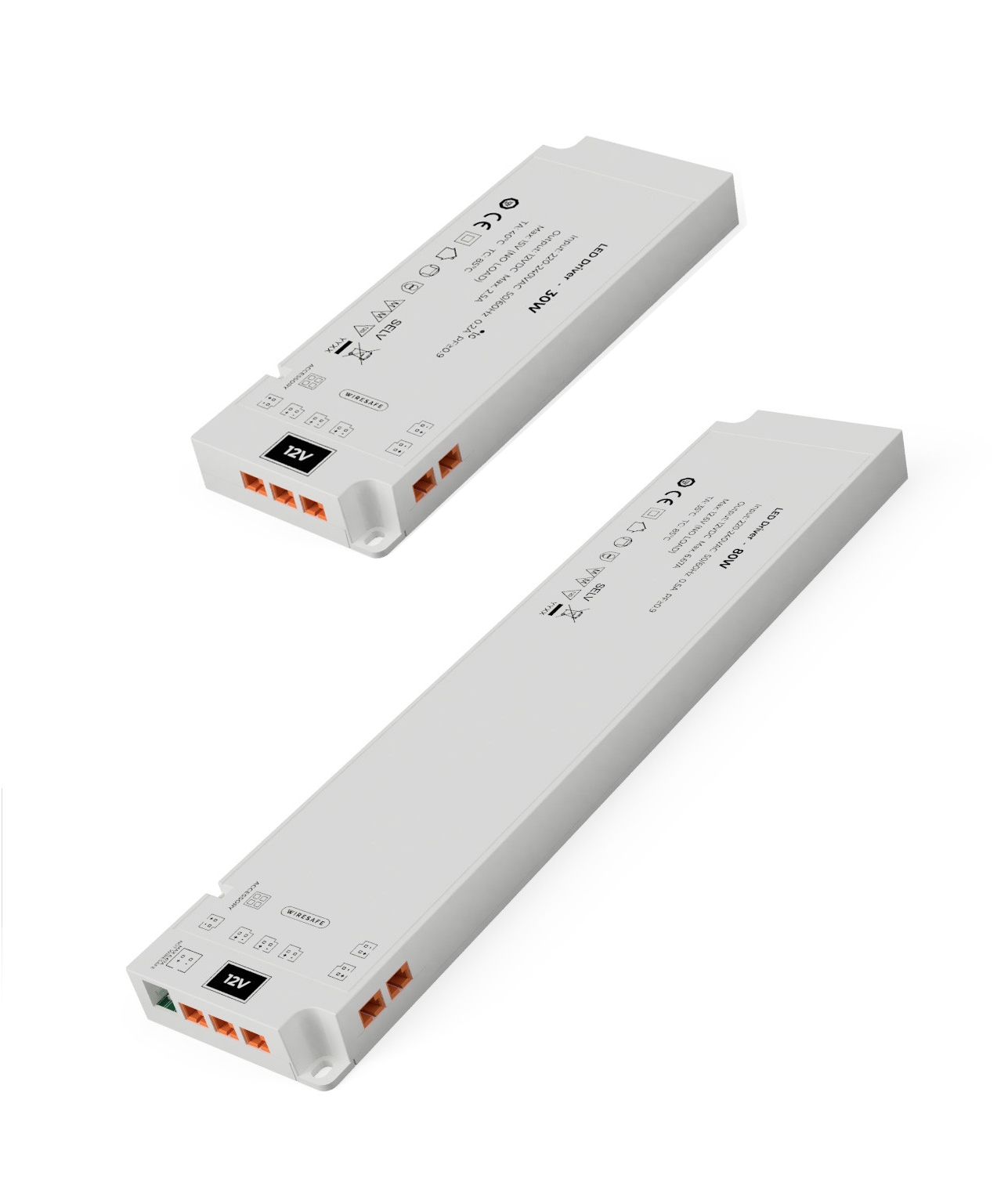

Driver	No driver or transformer is supplied with this fixture (sold separately)
PDF Document(s)	Specification Guide

How does the starter cable connect to the driver? How is the fitting attached to the underside of a cabinet?
The fitting, starter cable and driver use JB4 ports, which can just be slotted into each other. To attach this to the underside there are metal fixings that are screwed in, then the light is clicked into place.

Which size power supply would I need to power 3 x 300mm strip light? One would be on its own and the other two connected together.
In this example you will require: 3 No. 300mm LEDs 2 No. Input - starter cable 1 No. 15 Watt LED Power supply

Please can you tell me the depth of the strip light?
The depth of the LED profile is 13mm.

How far can the lights be recessed and how far would they then protrude, please?
The width of the lights is 13mm. It is not designed to be recessed, so how much it would protrude would depend.

Are they able to be controlled via wall dimmer and dimmable and if I buy them what else do I need.so they can be fitted
The only way to dim these lights is to use the sensor, They cannot be dimmed by a wall dimmer. You need a starter cable, fitting and a driver. If you are unsure please give us a call and we can help you with your requirements.

I assume that I buy a mixture of round cabinet LED lights ( cluster ) and LED slimline strip lights which are all 12VDC and "cool White". Can I wire then all to the same multiport PSU ( e.g. 15W 6 ports ). I assume the PSU are generic voltage regulated with all the LED products connected in parallel via the ports and that I just have to make sure the total power consumption is within the capability of the PSU?
In a nutshell yes, most products in the kitchen category can operate on a 12 volt DC power supply. Mixing a matching a range of gear and using a big power supply can be an economical way of powering everything as long as you can easily run cables out from a single point. One disadvantage? You might find that the miniature plugs differ between products but you can alaways chop the plugs off and wire together (in parallel) with some Wago connectors.

What is the profile of these strips in mm? i.e. how thick are they/how much do they protrude?
The width is 13mm, and the protrusion is 13mm.

Can these be trimmed to size?
These fittings cannot be cut.

Could these be used at the same distance from a tap and under a cabinet, but in a bathroom, ie in zone 2?
In truth there is no reason why these cannot be used in zone 2 as they are SELV (under 24v) and DC. Their construction will not be affected by the damp environment and who would really splash copious amounts of water over their bathroom wall anyway? In short, they just haven't been tested in zone 2
