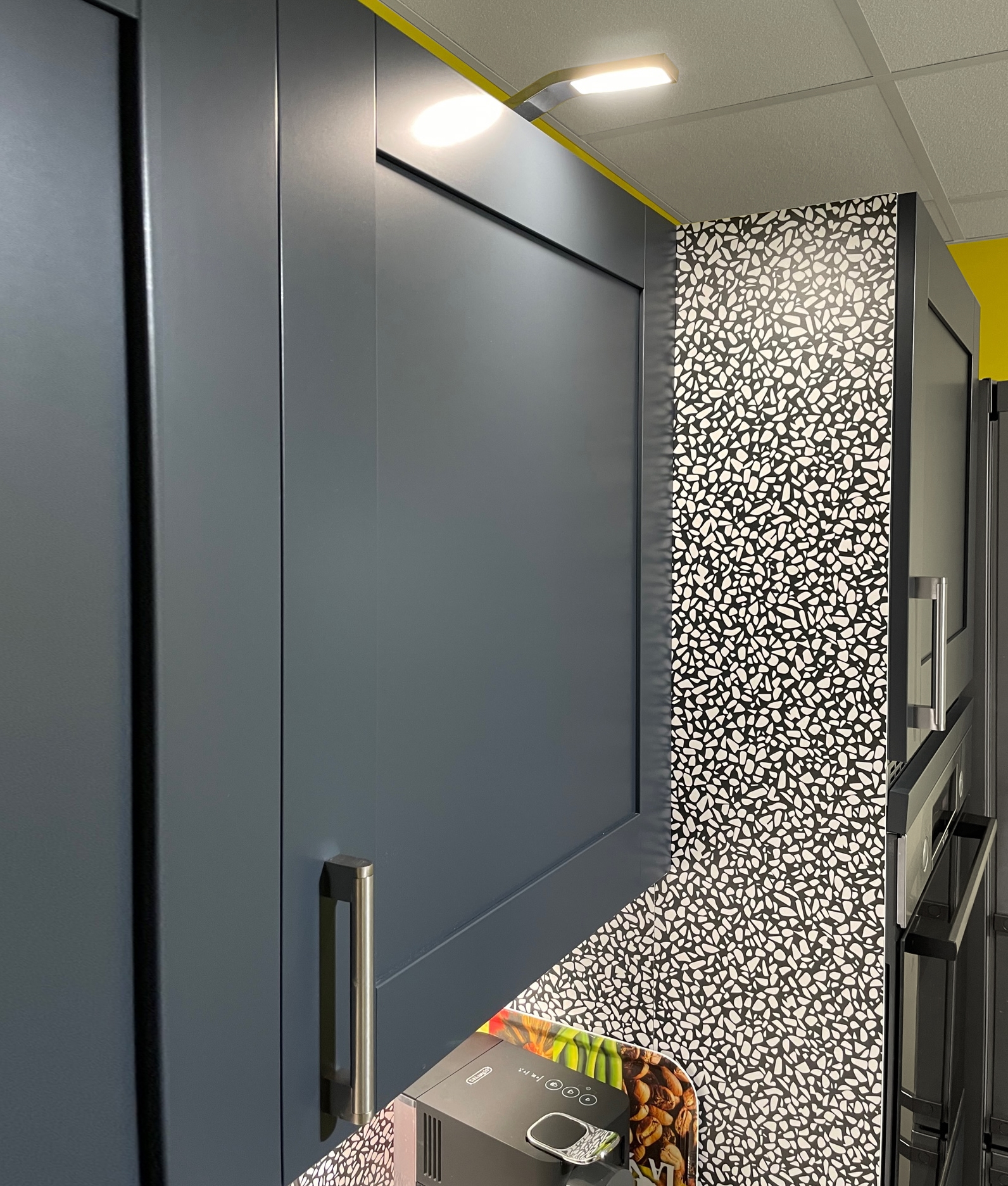

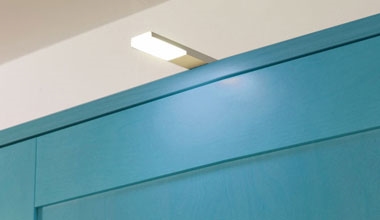

These smart over-cabinet lights are perfect for illuminating cabinet fronts and mirrors while reducing shadows caused by central ceiling lights. A unique dual-light design with integrated energy-saving LEDs ensures even, practical lighting.

The polished chrome finish gives the fitting a pristine and clean look, ideal for contemporary kitchens or bathrooms. This elegant design complements modern interiors while adding functionality.

Light is provided by an integrated LED chip, subtly concealed behind the frosted diffuser. This ensures a soft, even glow and boasts an impressive average lifetime of 30,000 hours, offering excellent longevity. The built-in LED emits a warm white light (2800°K) at 280 lumens, delivering high performance while consuming just 3 watts per fixture.

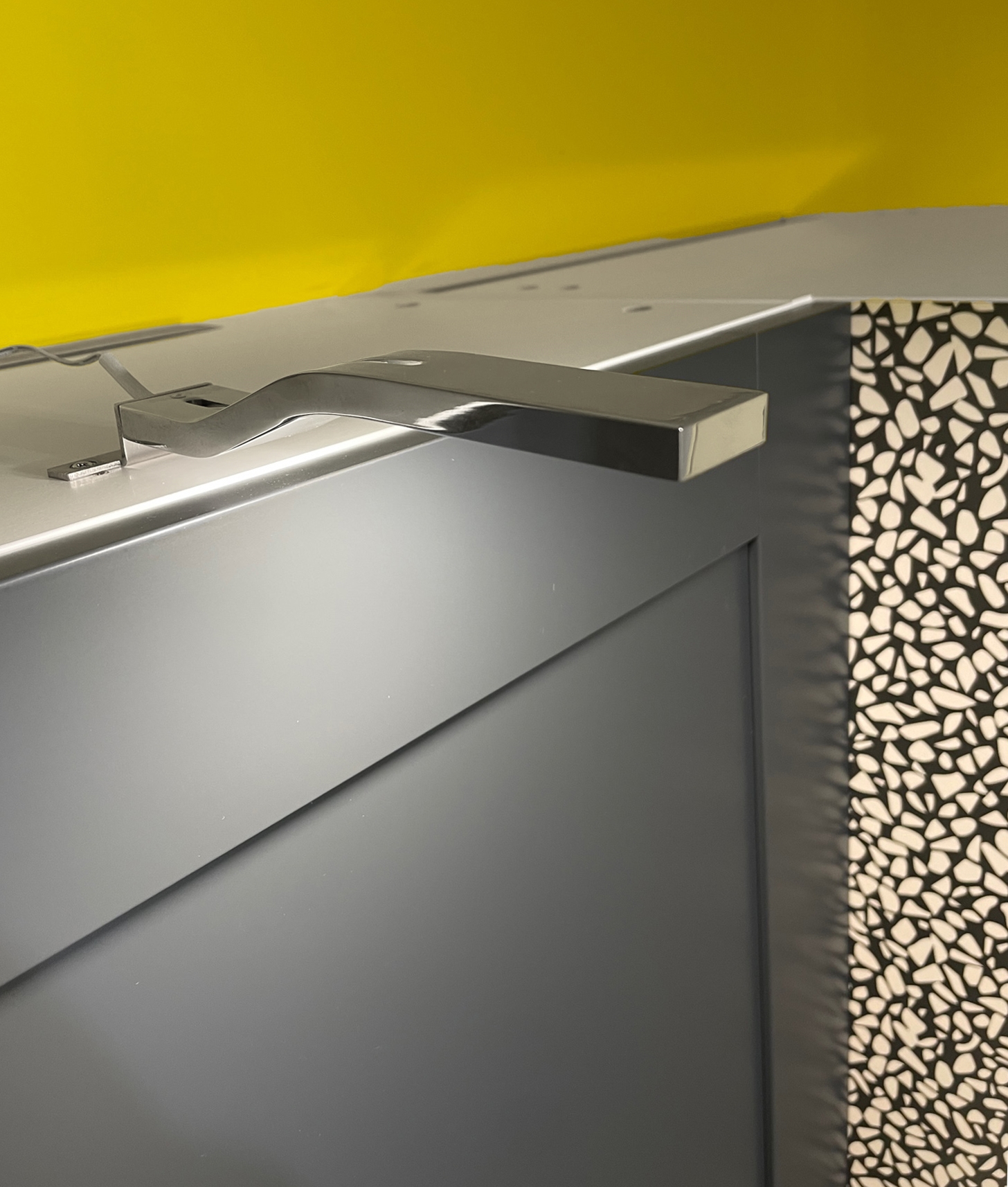

Easy to install with the included brackets, these lights can be securely mounted to cabinets in the required position. Their 120° beam angle provides excellent light distribution, ensuring consistent illumination for all-round task lighting.

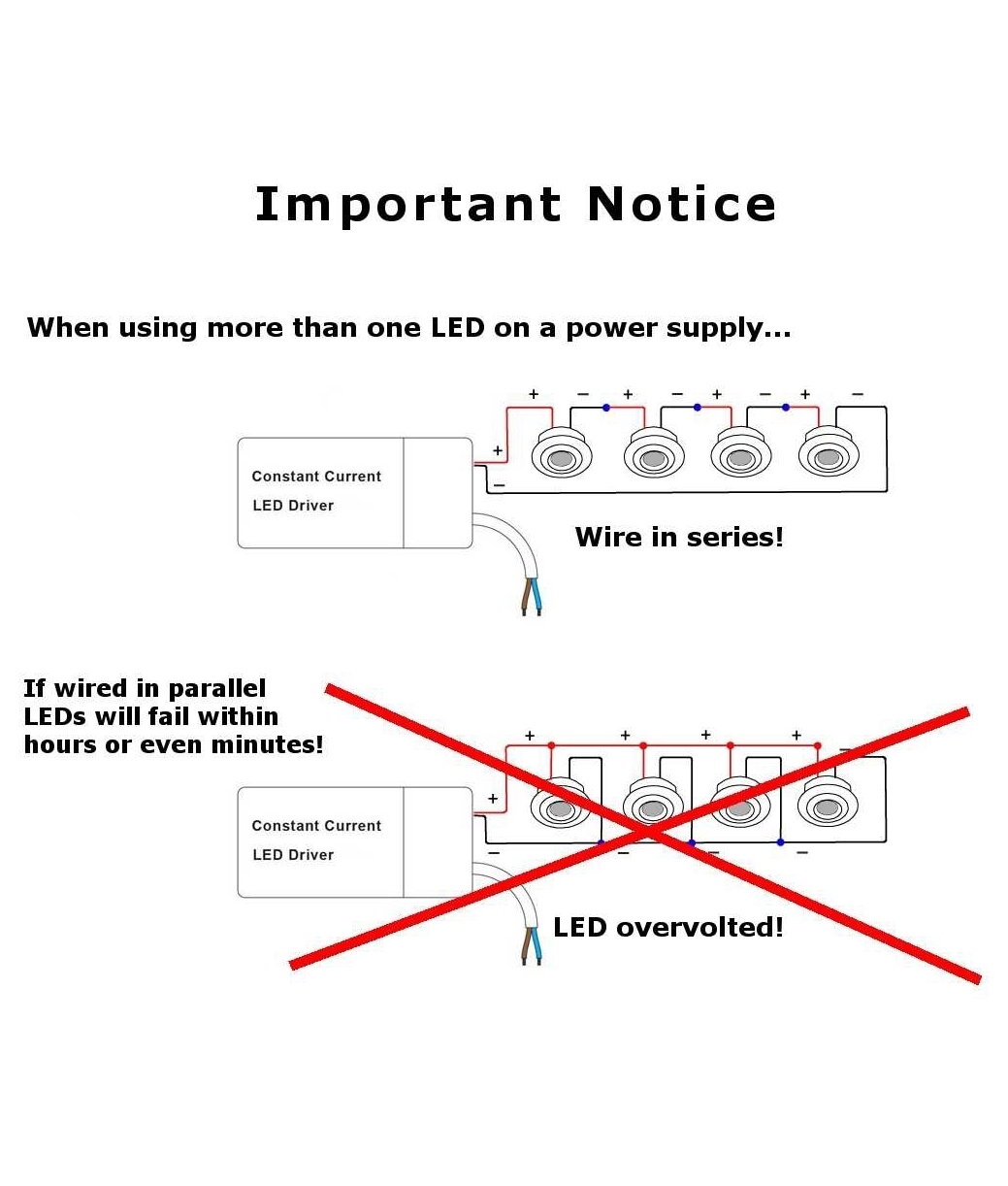

Supplied bare wired, measuring 1 metre and ready for connection to a 350mA constant current driver, these lights are highly adaptable. When using a larger driver for multiple fixtures, the lights should be wired in series. Each fixture is rated at 3 watts, so multiplying this by the number of lights will help match the output to the chosen driver.

With an IP44 rating, these lights are safe for use in humid environments, making them a reliable choice for kitchens and bathrooms alike.

Lamp Type	Long Life LED Light Source
Lamp Lumens	280
Dimmable?	Yes - when used with a dimmable LED driver
Total Wattage	3w
Width	30mm
Length	190mm
Height	35mm
Depth/Projection	175mm
Construction	Polished Chrome
Wiring Details	Class 3 - Requires a low voltage supply
IP Rating	IP44
Kelvin	2800°K - Soft Warm White
Driver	No driver or transformer is supplied with this fixture (sold separately)

Do you this style of light mains led dual light fitting
Unfortunately not. You could consider Ref 51536 or 4143, but they are slightly bigger.

which driver do I need for 3 of these lights - not dimmable
Apologies, ignore my previous suggestion please use CY89015. I have updated the driver suggestion.

How many lights can you connect to the 3W Ultra Compact LED driver. I need two cabinet lights. Cheers
The lights are 3w each so you need to go for the "Non Dimmable 350mA 4 - 8w Constant Current LED Driver"

Hello, Are these lights available in a brushed steel finish, instead of polished chrome?
This is the only colour available.

Can you explain the dimensions of this fitting? I need to know the projection distance from the front of the fixing bracket to the furthest point of the light, and ideally the size of the illuminated sections as well, as we propose to install them above cupboards that have very thick doors
Approx. 175mm from the bracket to the end of the light, 90mm from the bracket to the beginning of the LED.

How do I turn on the light? Is it sensor activated?
You would need to wire up a switch to this fitting in order to operate it. This can be a simple on/off switch, or a sensor.

I’m in the United States - is the plug compatible?
This would not work in the United States. The voltage difference would make this non-functional.

Modern LED Over Cabinet Light - Reduce Shadows in Kitchens & Bathrooms

Stylish Polished Chrome Finish
