Aim - The Larger Offset Pendant by Flos

A Stylish Unusual Hanging Pendant for Modern Environments

Offers no protection from splashed or sprayed waterClass 2 – This fitting is double insulated and does not require an earth.Yes, this product is dimmable - See the specifications tab for more detailsFlex can be shorted at the time of installation.Bulbs IncludedIncludes integral driver/transformer suitable for 230 - 240v supply

Product Ref: 5687

From £383.87 inc VAT

These pendants use friction and form to provide a flexible lighting solution yet we are often asked how Aim works...

  1. Each Luminaire comes complete with a small ceiling fixing through which the power cable passes. One end of this cable enters the light at the top and sets the height of the light. The other end of the flex passes through a fixing point on the side. By adjusting the length angle of the light is adjusted and friction holds it in place.

  2. The aim pendant is supplied with 9 metres of power cable. This means that Aim can be used as a ceiling light where there is no electrical point because the power cable is long enough to provide the suspension and loop all the way back to a suitable electrical point on the ceiling.

  3. In this listing Aim comes complete with a ceiling terminal to provide power to one pendant.

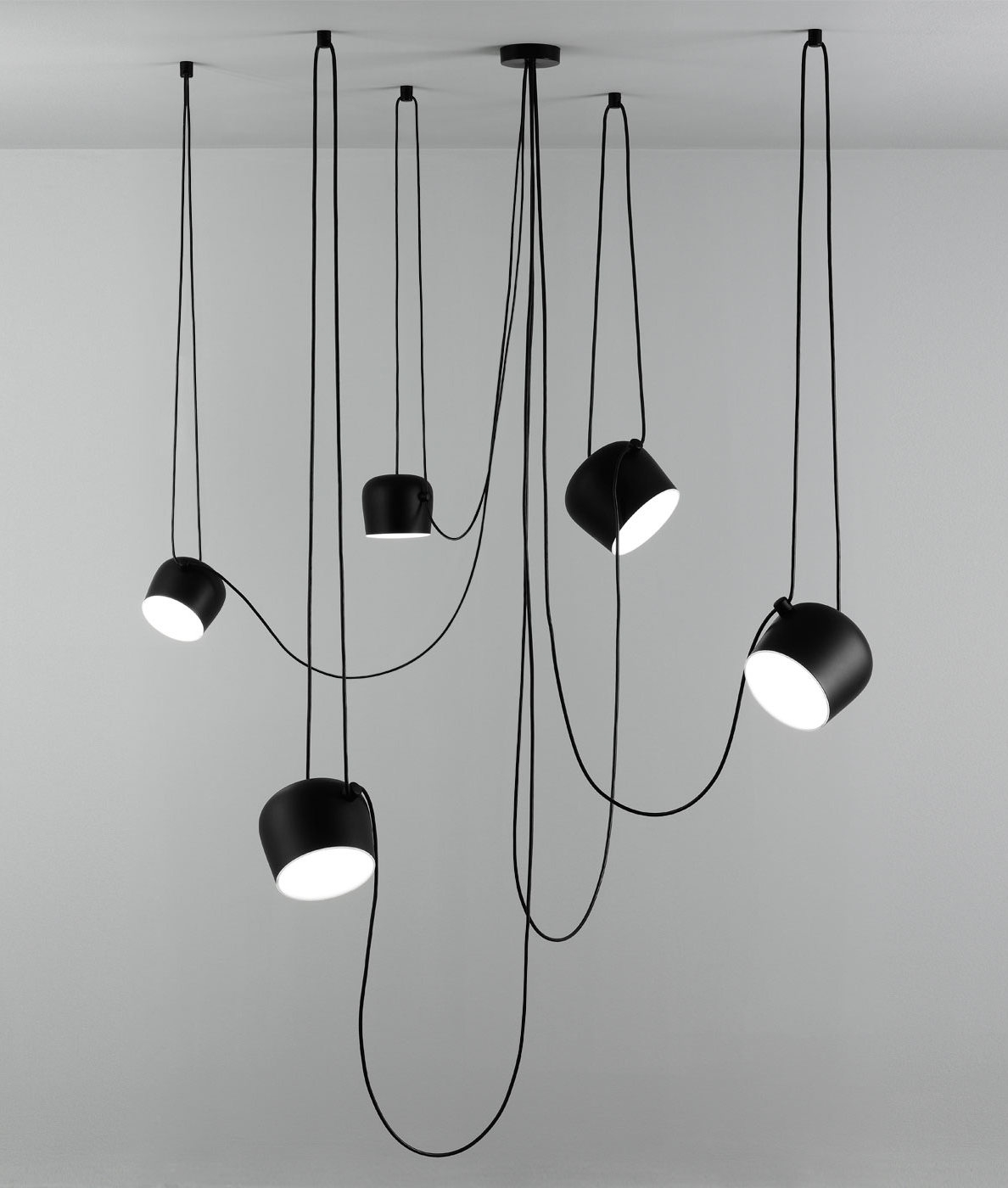

  4. You can create a cluster of pendants by using a multiple ceiling rose that can accommodate (and provide power) for five pendants.

  5. When creating your cluster light design up to five Aim lights can be positioned where and at the height you desire.

  6. Aim is also available in a smaller size (see listing below) allowing you to use a mix of sizes.

Aim is an enclosed pendant. The reflector is made from spun aluminium which is hard anodised in a choice of three colours. The front of the fixture has a flush diffuser in an opal photo-etched polycarbonate - you cannot see the LED lamp inside.

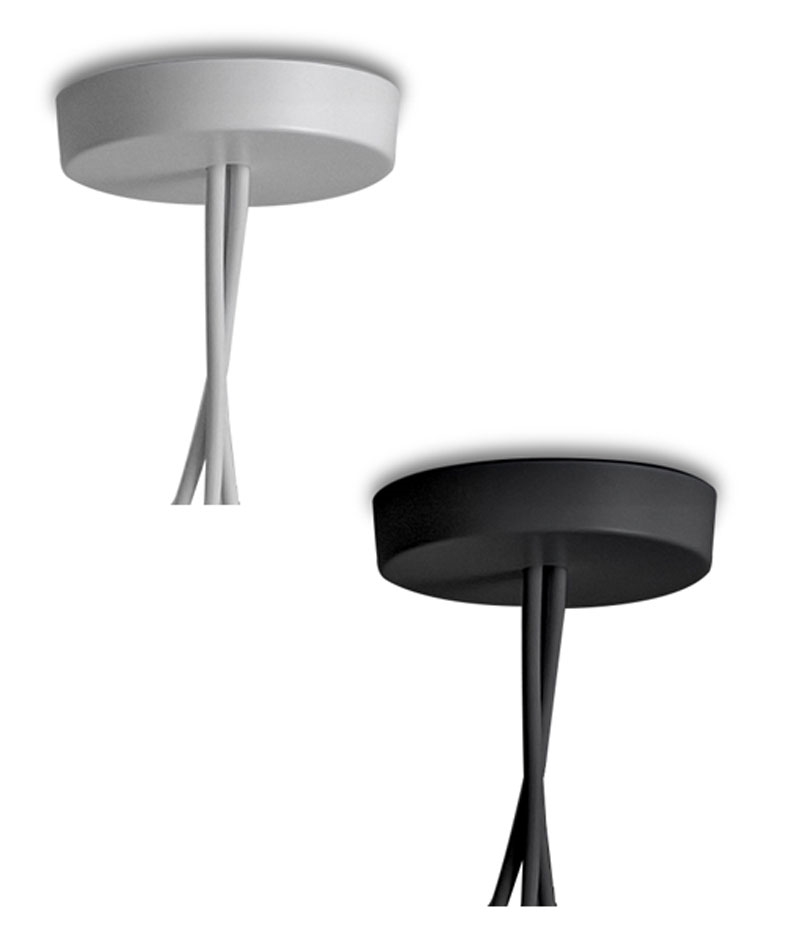

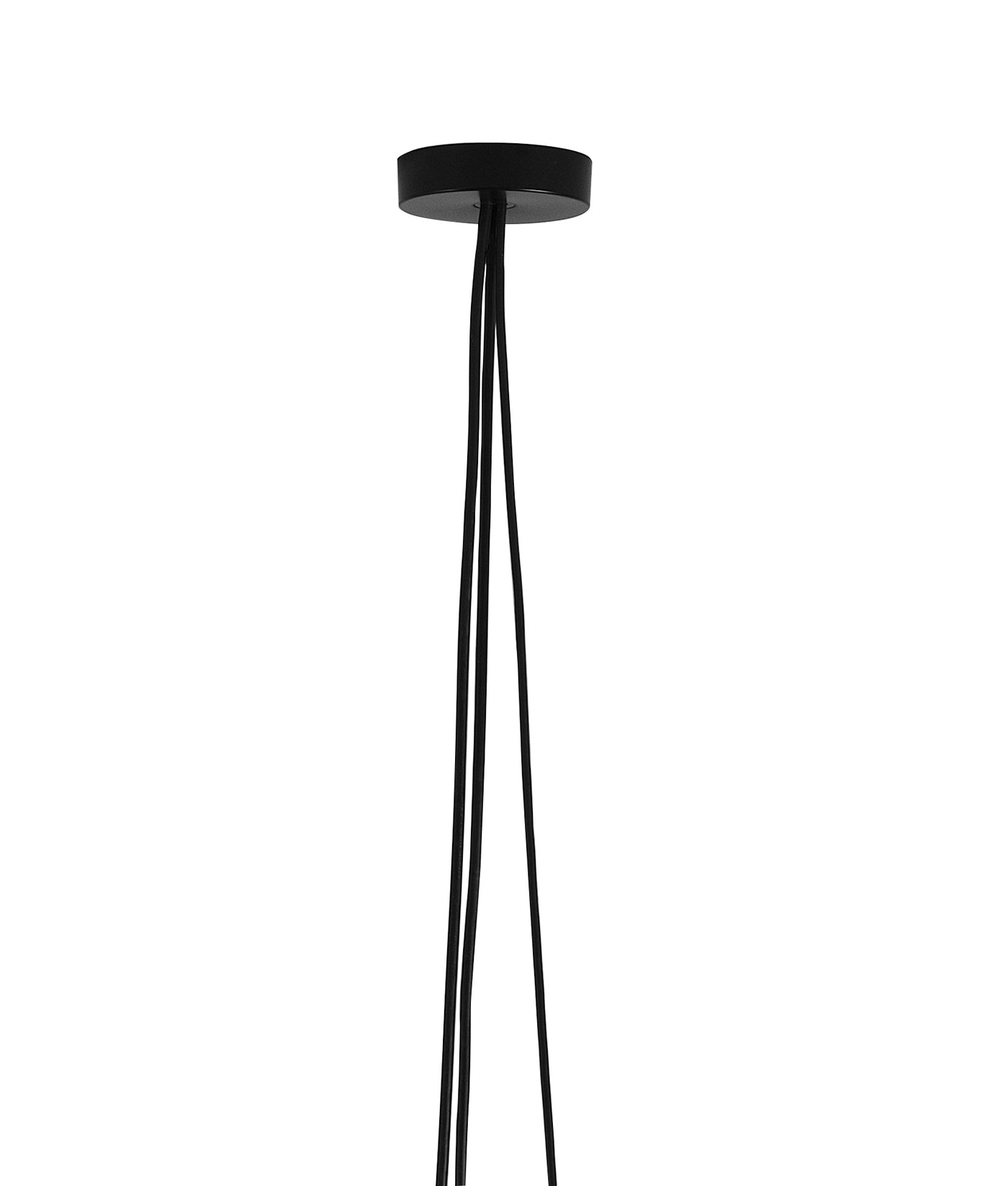

Each individual pendant comes with its own ceiling rose, which allow the pendants to be used individually. If you are looking to create a cluster pendant you can use the multiple ceiling rose, which can hold up to 5 pendants.

The LED chip is a 20 watt array giving a warm white light (2700°k).

It gives good colour rendering (with a CRI >90).

Aim gives 1250 lumens as much light as a 100w incandescent lamp

The Aim pendants listed below are dimmable with a triac (leading edge) dimmer suitable for the total load - just do not buy one from Poundland!

Number Of Lamps1
Lamp TypeIntegral LED
Lamp Lumens1250
Lumens Per Watt63
Part L Compliant LuminaireYes
Lamps IncludedYes
Dimmable?Yes - on a Triac (leading edge) dimmer
Max Wattage20w
Height211mm
Diameter243mm
Suspension9000mm
Adjustable HeightYes – at time of installation
ConstructionAluminium - Anodised
Wiring DetailsClass 2 - Double Insulated - Requires no Earth Connection
IP RatingIP20
DriverIncludes integral driver/transformer suitable for 230 - 240v supply
PDF Document(s)View PDF

Be the first to ask a question about this product!

Availability: IN STOCK 6-9 working day dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
FMF0090026
Anodized Brown Aim Pendant By Flos
You save £105.13
£383.87
£319.89 exc VAT
FMF0090030
Black Flos Aim LED Pendant Light
You save £101.26
£369.74
£308.11 exc VAT
FMF0093026
Anodized Brown Multiple Rose for Flos Aim
You save £14.40
£52.60
£43.83 exc VAT
FMF0090009
White Aim Pendant By Flos
You save £101.26
£369.74
£308.11 exc VAT
FMF0093009
White Multiple Rose for Flos Aim
You save £14.40
£52.60
£43.83 exc VAT
FMF0093030
Black Multiple Rose for Flos Aim
You save £14.40
£52.60
£43.83 exc VAT
