3 Circuit Track Lighting – Surface or Suspended

What it is and how it works
3-circuit track lighting offers greater control and flexibility than standard single-circuit systems. Designed for surface mounting to ceilings or walls, this system can also be suspended using wire kits, making it suitable for higher ceilings and larger spaces.

The track contains three live conductors and a shared neutral, allowing you to create up to three separately controlled lighting circuits on a single length of track. Each light fitting is easily assigned to one of the three circuits using a small dial. This allows you to illuminate only the fittings required at any given time, making the system particularly useful in dynamic environments where lighting needs regularly change.

Usage
Ideal for retail displays, galleries, and commercial interiors, as well as large residential kitchens or open-plan living areas. The ability to position fittings anywhere along the track, and assign them to different circuits, allows for precise control of both lighting effect and energy usage. Whether highlighting products, artwork or architectural features, the system adapts as your space evolves.

Key Features
Available in various lengths and three finishes, the track can be cut to size using a mitre saw — either by hand or machine — to suit your layout. A wide range of components enables straight runs, corners, suspended sections, or multi-directional layouts. Accessories include connectors, end caps, and a 5kg pendant adapter, allowing you to integrate both spotlights and pendants on the same track.

This modular system is engineered to meet the demands of modern interiors where flexibility, control, and professional finish are essential.

For information about track compatibility with other brands, see the guidance at the bottom of this page.

Filter results by colour, IP rating etc...
Items 25 to 45 of 45.
Modern White COB LED Cylinder Track Spotlight - 30W Neutral White, 38° Beam AngleModern White COB LED Cylinder Track Spotlight - 30W Neutral White, 38° Beam Angle

Modern White COB LED Cylinder Track Spotlight - 30W Neutral White, 38° Beam Angle


£52.10
Perfect for Retail and Gallery Lighting – Adjustable, Built-in LED, 2700 Lumens

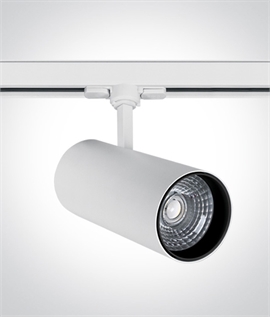

Modern White COB LED Cylinder Track Spotlight - 30W Warm White, 38° Beam AngleModern White COB LED Cylinder Track Spotlight - 30W Warm White, 38° Beam Angle

Modern White COB LED Cylinder Track Spotlight - 30W Warm White, 38° Beam Angle


£52.10
Use in Commercial Settings, Large Retail Spaces, Galleries and Showrooms
8w Low Glare COB Track Spot Light - Dimmable LED Spot for 3-Circuit Tracks8w Low Glare COB Track Spot Light - Dimmable LED Spot for 3-Circuit Tracks

8w Low Glare COB Track Spot Light - Dimmable LED Spot for 3-Circuit Tracks

2 Options
£55.00
Black or White Ideal for High-End Interiors, Galleries, and Restaurants

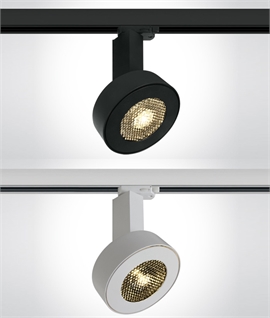

Adjustable Round 30w COB LED Track Spot with Honeycomb Filter Adjustable Round 30w COB LED Track Spot with Honeycomb Filter

Adjustable Round 30w COB LED Track Spot with Honeycomb Filter

2 Options
£60.00
Black or White - Complete with 700mA Driver

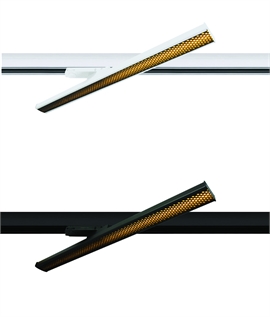

CCT Variable LED Linear Track Light - High Lumen Output 3600CCT Variable LED Linear Track Light - High Lumen Output 3600

CCT Variable LED Linear Track Light - High Lumen Output 3600

2 Options
£62.00
White or Black - Perfect for Shops or Commercial Areas

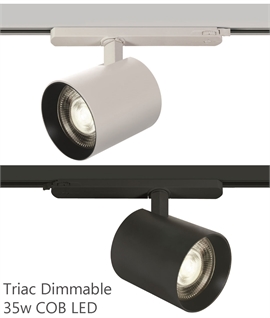

30w COB LED Track Spot - 2700 Lumens, 38° Beam, Global 3-Circuit Track Compatible30w COB LED Track Spot - 2700 Lumens, 38° Beam, Global 3-Circuit Track Compatible

30w COB LED Track Spot - 2700 Lumens, 38° Beam, Global 3-Circuit Track Compatible

4 Options
£69.95
High-Output Track Light with Multiple Options for Colour Temperature and Finish
Linear LED Track Light Fixture for 3 Circuit Track - Opal DiffuserLinear LED Track Light Fixture for 3 Circuit Track - Opal Diffuser

Linear LED Track Light Fixture for 3 Circuit Track - Opal Diffuser

6 Options
£72.00
Available in Black or White & 3 Lengths
LED Track Adjustable Spotlight - White or Black LED Track Adjustable Spotlight - White or Black

LED Track Adjustable Spotlight - White or Black

4 Options
£72.50
Choose 24 or 36 watt Option

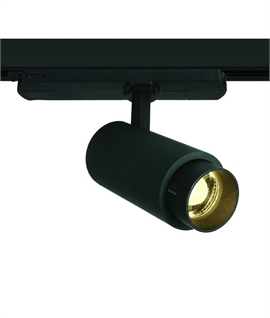

Black 15W High-Performance Adjustable Beam LED Spotlight - 3000°k 15W COB LED, 1350 LumensBlack 15W High-Performance Adjustable Beam LED Spotlight - 3000°k 15W COB LED, 1350 Lumens

Black 15W High-Performance Adjustable Beam LED Spotlight - 3000°k 15W COB LED, 1350 Lumens


£74.40
Versatile Zoom Feature from 20° to 60° - Perfect for Highlighting Architectural Details and Artwork

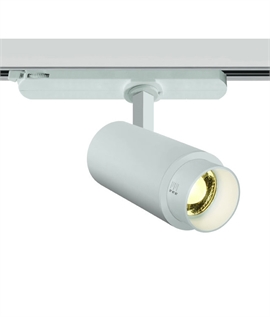

White 15W High-Performance Adjustable Beam LED Spotlight - 3000°k 15W COB LED, 1350 LumensWhite 15W High-Performance Adjustable Beam LED Spotlight - 3000°k 15W COB LED, 1350 Lumens

White 15W High-Performance Adjustable Beam LED Spotlight - 3000°k 15W COB LED, 1350 Lumens


£74.40
Versatile Zoom Feature from 20° to 60° - Ideal for Architectural and Artwork Lighting
3-Circuit Track Diffused Wall Washer - 40w COB LED with 45 Degree Tilt3-Circuit Track Diffused Wall Washer - 40w COB LED with 45 Degree Tilt

3-Circuit Track Diffused Wall Washer - 40w COB LED with 45 Degree Tilt

2 Options
£78.60
Wallwashing Track Floodlight for retail, displays, gallery and commercial environments

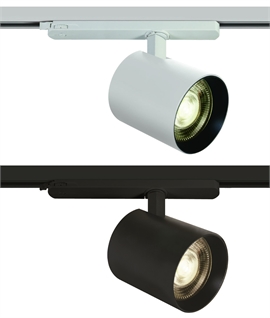

Adjustable Power COB LED Track Light Spot for 3-Circuit Track Adjustable Power COB LED Track Light Spot for 3-Circuit Track

Adjustable Power COB LED Track Light Spot for 3-Circuit Track

4 Options
£80.00
Choose 20w, 25w, 30w and 35w - Black or White Finish - 3000k or 4000k
42w COB LED Adjustable Track Spot 38 degree beam angle42w COB LED Adjustable Track Spot 38 degree beam angle

42w COB LED Adjustable Track Spot 38 degree beam angle

4 Options
£82.50
Black or White Finish - Cool or Warm White
LED CCT Variable Linear Track Light - High Lumen Output LED CCT Variable Linear Track Light - High Lumen Output

LED CCT Variable Linear Track Light - High Lumen Output

2 Options
£82.70
Choose Black or White with Acrylic Diffuser
CCT Variable LED Linear Track Light - High Lumen Output 4800CCT Variable LED Linear Track Light - High Lumen Output 4800

CCT Variable LED Linear Track Light - High Lumen Output 4800

2 Options
£82.70
White or Black - Perfect for Shops or Commercial Areas
Adjustable beam 30w Warm White Commercial LED Track Spot Light - 3000K BlackAdjustable beam 30w Warm White Commercial LED Track Spot Light - 3000K Black

Adjustable beam 30w Warm White Commercial LED Track Spot Light - 3000K Black


£91.00
Adjustable Beam COB LED Track Spot for Retail and Commercial Lighting in Black Finis
Multi-Head Linear Spotlight for 3-Circuit Track – 10 x 5w COB Spots in Black or WhiteMulti-Head Linear Spotlight for 3-Circuit Track – 10 x 5w COB Spots in Black or White

Multi-Head Linear Spotlight for 3-Circuit Track – 10 x 5w COB Spots in Black or White

2 Options
£107.50
Stylish Lighting Solution, Ideal forshops and showrooms +/-45° adjustable

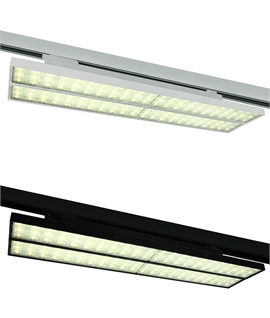

LED Linear Adjustable Track Light with High 6250 Lumen Output LED Linear Adjustable Track Light with High 6250 Lumen Output

LED Linear Adjustable Track Light with High 6250 Lumen Output

2 Options
£148.90
White or Black - Adjustable in One Direction
3-Circuit Track Spotlight with Adjustable Zoom Focus & Framing Shutters3-Circuit Track Spotlight with Adjustable Zoom Focus & Framing Shutters

3-Circuit Track Spotlight with Adjustable Zoom Focus & Framing Shutters


£192.00
12W COB CRI90 - compatible with Global, EUTRAC, STAFF & similar three-circuit track systems
3-Circuit Track Pendant Adapter for Flexible Lighting Design3-Circuit Track Pendant Adapter for Flexible Lighting Design

3-Circuit Track Pendant Adapter for Flexible Lighting Design

5 Options
£8.40
Hang a Mains Pendant from Your Track
Items 25 to 45 of 45.

Track Compatibility Guidance

Many UK and European lighting manufacturers, including Erco and Zumtobel, design their fittings to be compatible with the EUTRAC profile, the industry standard for 3-circuit track systems. This makes the track suitable for use with a wide range of systems from brands such as Global, Nordic, LTS, Unipro, SLV, Thorn, Ivela, Staff, iGuzzini, Nokia, and Hoffmeister.

Please note the following compatibility limitations:

  • DALI fixtures are often not compatible with standard 3-circuit track.

  • Older fittings (typically more than 30 years old) may not match the current EUTRAC profile.

  • Single or two-circuit fittings are not suitable for use with 3-circuit systems.

If you're unsure whether your existing fixtures are compatible, we recommend checking the manufacturer's specifications or contacting us for advice.
