3-Circuit Track Lighting – Recessed
What it is and how it works
Recessed 3-circuit track lighting offers all the flexibility of a surface-mounted system while delivering a clean, built-in appearance. Designed to sit flush within the ceiling, the system requires a 40mm-wide slot. Once installed, the track’s visible width is 58mm, with a slim flange that conceals the cut edge and provides a tidy, professional finish.
Using three live conductors and a shared neutral, the system supports up to three independently controlled lighting circuits on a single length of track. This enables flexible control and precise zoning of light, particularly useful in multi-functional or display-led spaces. Circuit selection is managed at the fitting itself via a small dial.
Usage
Ideal for commercial interiors, galleries, retail environments and high-end residential projects where a clean, uncluttered ceiling is a design priority. The system can accommodate a wide range of fittings, including spotlights, floodlights and pendants, all of which can be repositioned and reassigned to different circuits as needed. By recessing the track into the ceiling, the focus remains on the light output and not the hardware. This is particularly useful in spaces where lighting layouts change frequently, but the architectural finish must remain seamless.
Key Features
The track is held in place using discreet saddle clamps (shown above), allowing for a secure, accurate installation. The same fixed joints used in surface and suspended systems are used here, but with matching cover plates to maintain the streamlined look. Tracks are available in a range of lengths and finishes and can be trimmed to length using a mitre saw. Straight runs, corners and connections are all achievable with compatible accessories. Both spotlights and pendant fittings can be used, with a 5kg pendant adapter available.
This 3-circuit recessed system is a smart solution when flexibility is required, but the ceiling needs to remain quiet and architectural.
15w Zoom Adjustable Track Spotlight - Widely Compatitible COB LED & Removable Honeycomb
2 Options£48.00
Reduced-Glare 12W Track Spotlight for Global and Eutrac 3-Circuit Track
2 Options£49.60
30W COB Cylinder LED Track Light for Global & Eutrac 3-Circuit Systems
4 Options£52.10
Adjustable Linear 12W COB LED Track Spotlight - Black or White
2 Options£52.80
8w Low Glare COB Track Spot Light - Dimmable LED Spot for 3-Circuit Tracks
2 Options£55.00
Linear Adjustable Track Light 15 x 1w COB LEDs for 3-Circuit Track
2 Options£57.00
Adjustable Round 30w COB LED Track Spot with Honeycomb Filter
2 Options£60.00

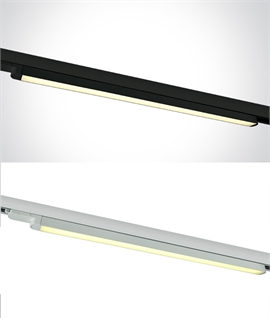

CCT Variable LED Linear Track Light - High Lumen Output 3600
2 Options£62.00
Linear 5-Light COB Track light - Compatibile with Global & Eutrac
2 Options£66.20
30w COB LED Track Spot - 2700 Lumens, 38° Beam, Global 3-Circuit Track Compatible
3 Options£69.95
Linear LED Track Light Fixture for 3 Circuit Track - Opal Diffuser
6 Options£72.00
Linear LED Track Light – 650mm, Eutrac Compatible, 16w, CCT Ambient Light Track Fixture
2 Options£72.00
Black 15W High-Performance Adjustable Beam LED Spotlight - 3000°k 15W COB LED, 1350 Lumens
£74.40
White 15W High-Performance Adjustable Beam LED Spotlight - 3000°k 15W COB LED, 1350 Lumens
£74.40
25w Zoom Adjustable Track Spotlight - Widely Compatitible COB LED & Removable Honeycomb
2 Options£78.00
3-Circuit Track Diffused Wall Washer - 40w COB LED with 45 Degree Tilt
6 Options£78.60
Adjustable Power COB LED Track Light for 3-Circuit Track - Switchable Output
7 Options£80.00
42w COB LED Adjustable Track Spot 38 degree beam angle
4 Options£82.50
LED CCT Variable Linear Track Light - High Lumen Output
2 Options£82.70
CCT Variable LED Linear Track Light - High Lumen Output 4800
2 Options£82.70
35W COB LED Track Light for 3-Circuit Track - Triac Dimmable
6 Options£82.70
50w Linear COB Spotlight for Global & Eutrac 3-Circuit Track - 30 Degree Beam & 5800 lumens
3 Options£107.50

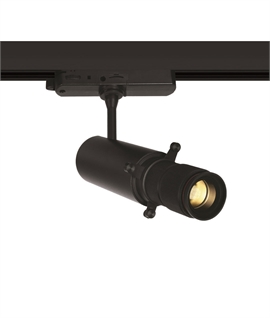

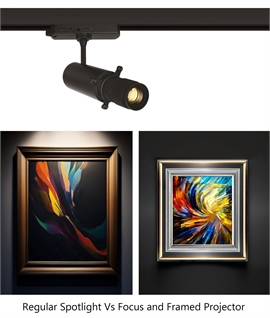

3-Circuit Track Spotlight with Adjustable Zoom Focus & Framing Shutters
£192.00
Compatibility with Other Fixtures
This recessed 3-circuit track system is based on the EUTRAC profile, widely adopted across the UK and Europe. It is compatible with many professional fittings, including those from Erco, Zumtobel, and other leading brands. The profile matches systems from manufacturers such as Global, Nordic, LTS, Unipro, SLV, Thorn, Ivela, Staff, iGuzzini, Nokia, and Hoffmeister.
Please check the following before specifying fittings:
-
DALI-compatible fittings often require a dedicated DALI track and are not always suitable for standard 3-circuit systems.
-
Older fittings (typically pre-1990s) may not align with the modern EUTRAC profile.
-
Single or two-circuit fittings are not compatible with this 3-circuit track.
If you're unsure whether your chosen fittings will work with this recessed system, please consult the manufacturer's technical details or contact us for guidance.
