Weatherproof Well Light in 5 Finishes

A PIR Galvanized Option Also Available

Protected from water spray from all directionsClass 2 – This fitting is double insulated and does not require an earth.Yes, this product is dimmable - See the specifications tab for more detailsBulbs Not Included

Product Ref: 2697

From £61.28 inc VAT

Traditional nautical styled outdoor wall light in a variety of finishes to suit your home.

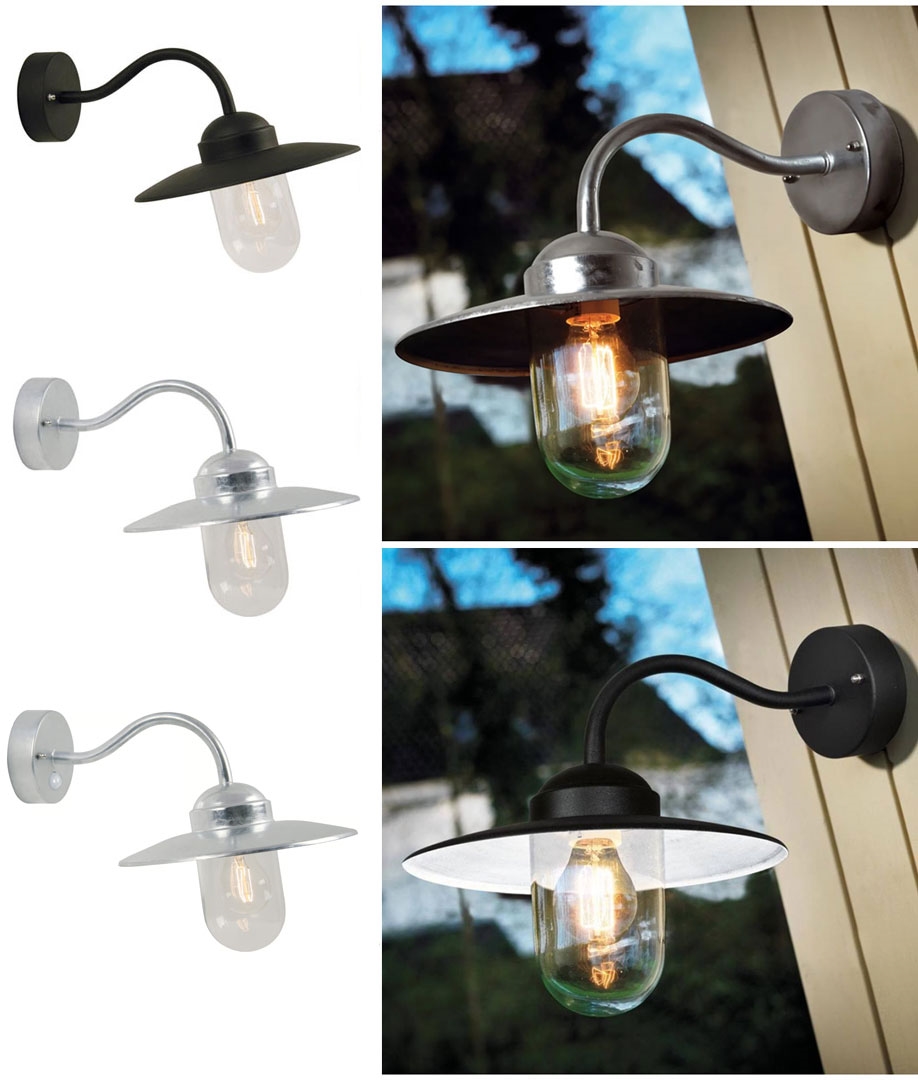

Available in stainless steel, galvanised steel, copper, and two painted finishes: rusty brown and black.

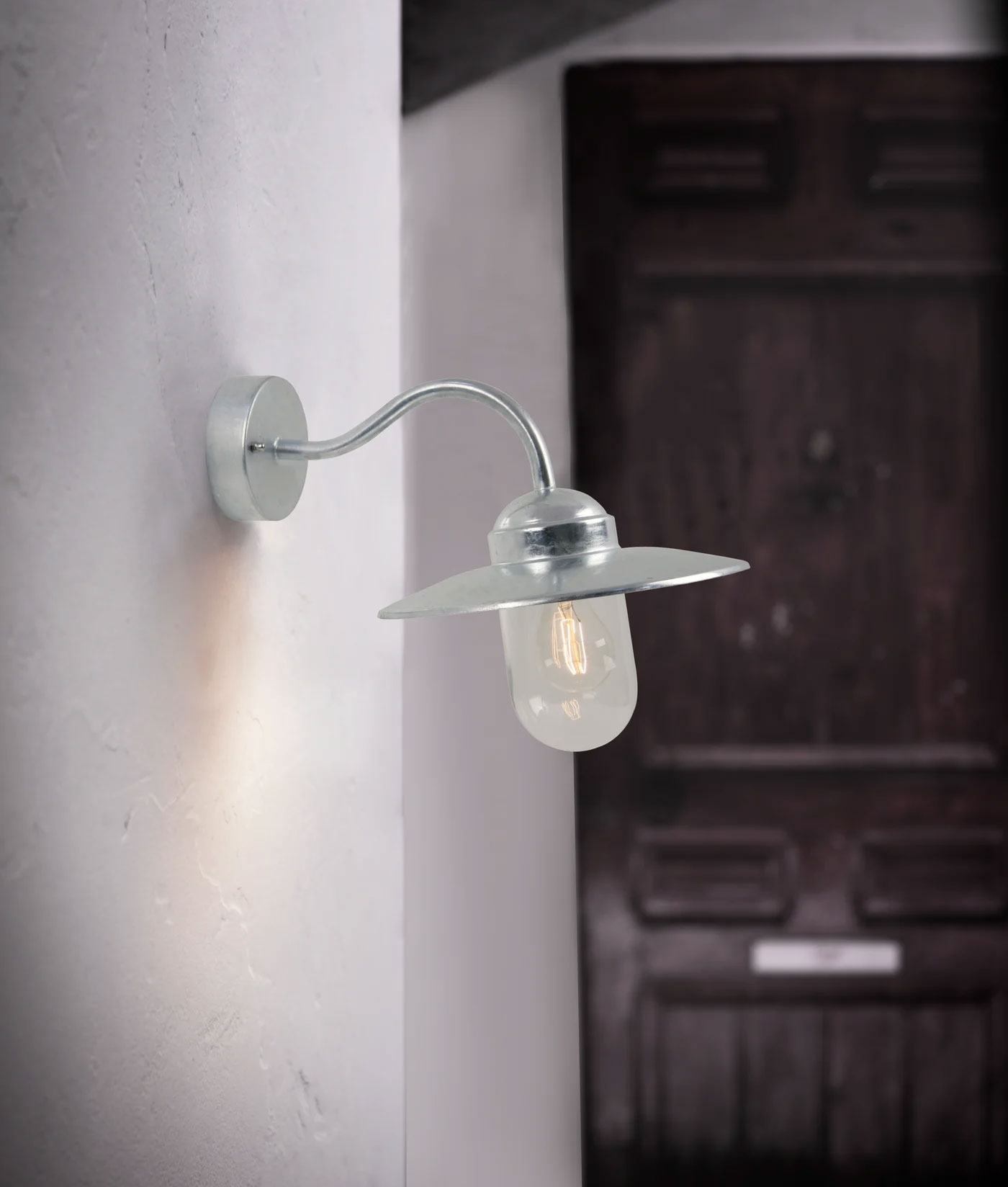

The galvanised steel version is hot-dip galvanised and the texture can be quite rough with a bright zinc finish. The harshness of this finish quickly fades as the surface begins to oxidise and take a grey hue like a prized galvanised steel watering can (but without the holes). There is a 15 year guarantee on both the galvanised and copper versions.

280mm diameter shade with overall projection of 460mm.

Large 115mm diameter wall plate with twin cable entry points.

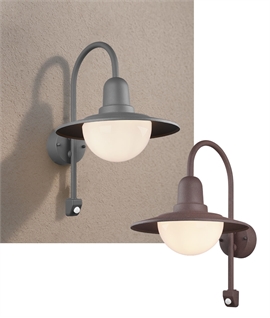

PIR Option we can also offer the galvanised version with a PIR sensor for automated operation.  This version is Class 1 and requires an earth connection.  Has an 8.0 metre range and a 100 degree detection range, it also offers an override facility. 115mm diameter wall plate with twin cable outlets.

Number Of Lamps1
Lamp TypeE27 (ES) Mains Tungsten
Part L Compliant LuminaireNo
Lamps IncludedNo
Dimmable?Yes - on standard dimmer
Max Wattage60w
Width280mm
Height260mm
Depth/Projection460mm
Wiring DetailsClass 2 - Double Insulated - Requires no Earth Connection
IP RatingIP54
E27 Radium 46w Ecoplus GLS lamp (60w equivalent)
RAD22318032
E27 Radium 57w Ecoplus GLS lamp (75w equivalent)
RAD22318038
E27 Long Life Decorative Lamp - 60w Tube
HRD690060
E27 Long Life Decorative Lamp - 40w Tube
HRD690040
E27 LED GLS 6w Lamp
MLGLS6ESC
Click here to choose your bulbs

Please could you advise me of the diameter of the opening of the glass shade that screws in please?
The diameter of the glass opening is 80mm.

What is the detection angle on the PIR for this light?
The detection angle of the PIR on this fitting is 100 degrees.

Regarding the copper version of the Well Light, is it possible to purchase the item without the protective coating as we would prefer a weathered look?
Unfortunately it only comes as standard with the protective coating.

Love these fixtures. Will they work in the US without issue (electrically and using US bulbs)?
The versions without PIR sensor will work okay on US voltage. The lamp holder is E27 but will accept E26 lamps.

Do you supply replacement glass for these lights. If so what price? Or do you know where I can get glass. Thank you
We can get hold of replacement glass for these well lights. Please call our sales team for details and to place an order.

Please can you tell me what colour the galvanised version with PIR sensor is?
The fitting is a raw galvanised finish i.e. zinc. This is a bright metal when new but it oxides to a darker grey colour when exposed to the elements.

Please could you confirm whether the stainless steel version of the Waterproof Well Light is the one shown in the larger main picture (the night-time one) of the selection pictured?
Yes, the main picture of this fitting is the stainless steel option.

I would like to purchase six of these lamps (galvanised version) but three are to be mounted on the corners of my house. Do you supply a suitable corner bracket, or is there a version with a corner bracket?
We do have a corner bracket available in a number of finishes that if drilled is a perfect match for the back plate. Please call the office for more details.

I live in a very exposed area and winds of 60mph plus are not uncommon. The shape, unfortunately, looks like it could catch the wind and the mounting base looks small. Would your view be to look for something different?
The mounting plate is not that small and the tube is welded to the face plate. We`d suggest the use of the galvanised version and the zinc plating process makes the base material stronger.

How long does the light illuminate for when the PIR senses movement? Is the 8 metre range from the side and the front?
The 8 metre detection range applies when a person is walking across the detection area, not walking towards the sensor. If a person is walking towards the sensor and 1.5m to left or right of it the detection range is typically between 4-6 metres. Time on- Approx 1 minute from initial triggering

Can you tell me if the override facility on the PIR model is activated by switching off and on again?
Yes indeed the override is enabled by switching off and on in quick succession.

From the pictures it looks like the light is angled, is it possible for them to hang them straight down?
This fitting does angle out. However we have access to number of different styles, from a variety of manufacturers. Please contact us and advise what finish is required and we`ll find you something that matches.

Looking to purchase 4 weather proof well lights. Please can you advise if ordinary low energy light bulbs can be used.
There is enough room in the head to use most E27 compact fluorescent lamp types.

Do these lights come with a bracket for corner use?
The fitting does not come pre-supplied with a corner bracket, however we do have a corner bracket available in a number of finished that if drilled is a perfect match for the back plate. Please call the office for more details.

What is the maximum wattage this lamp can take?
This fitting is suitable for a 60W maximum lamp.

Is the glass clear? Can I use an energy efficient bulb with Dusk to Dawn?
The glass is clear. I think I know the lamp to which you refer but cannot comment on the suitability of a lamp outside of our range, however most energy efficient E27 lamps will fit.

Availability: IN STOCK 2-3 working day dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
NX22671031
Galvanised Steel Weatherproof Well Light
You save £26.26
£61.28
£51.07 exc VAT
NX22661031
Galvanised Weatherproof Well Light with PIR (Class 1)
You save £41.40
£96.60
£80.50 exc VAT
NX22671034
Stainless Steel Weatherproof Well Light
You save £39.83
£92.95
£77.46 exc VAT
NX22671030
Copper Weatherproof Well Light
You save £50.38
£117.56
£97.97 exc VAT
NX22671003
Black Painted Weatherproof Well Light
You save £26.26
£61.28
£51.07 exc VAT
NX22671009
Rusty Brown Painted Weatherproof Well Light
You save £34.20
£79.80
£66.50 exc VAT
