T5 Linkable Fluorescent Batten

Available in Six Lengths

Offers no protection from splashed or sprayed waterClass 2 – This fitting is double insulated and does not require an earth.No, this product is NOT dimmableBulbs Included

Product Ref: 4067

From £11.48 inc VAT

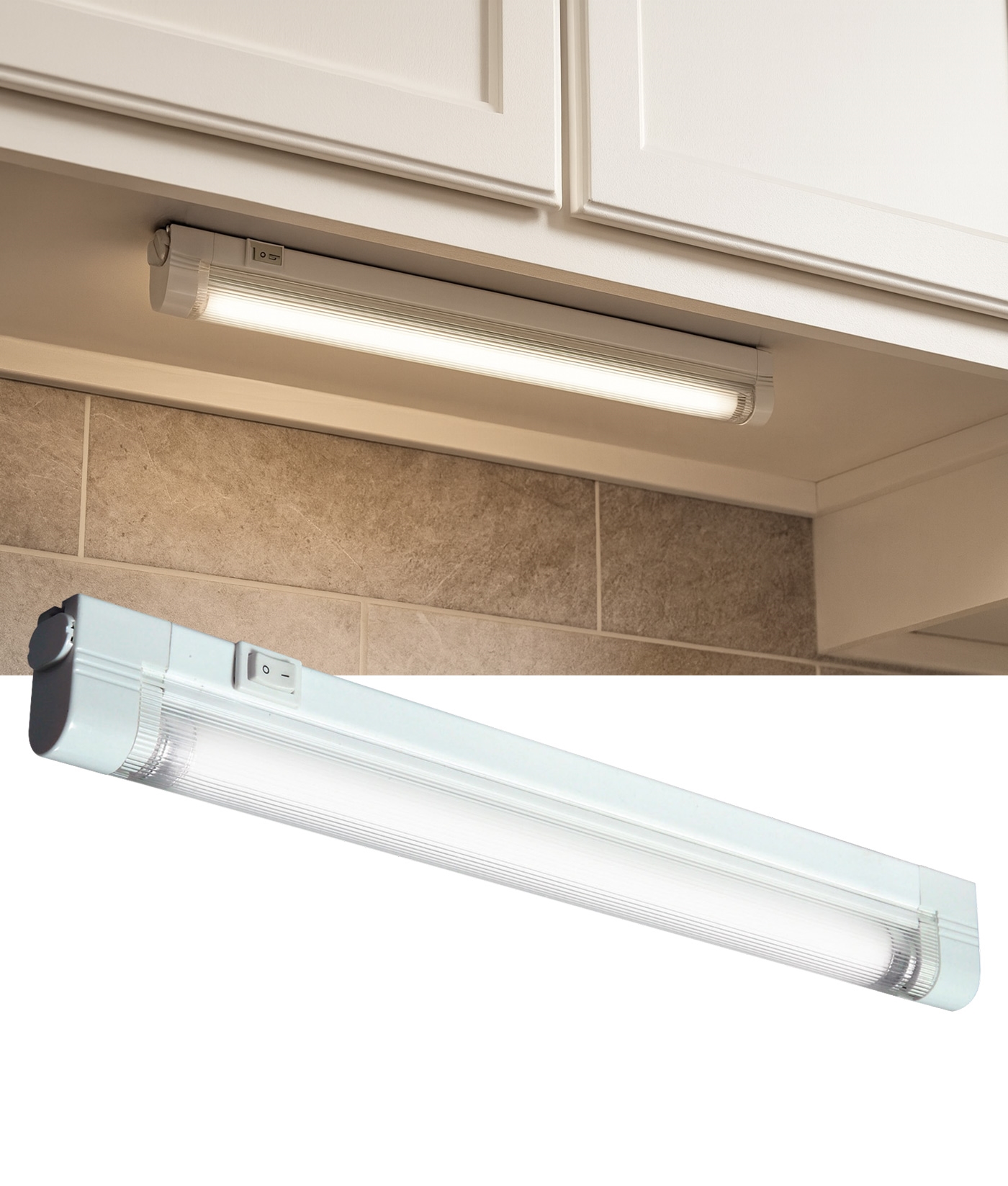

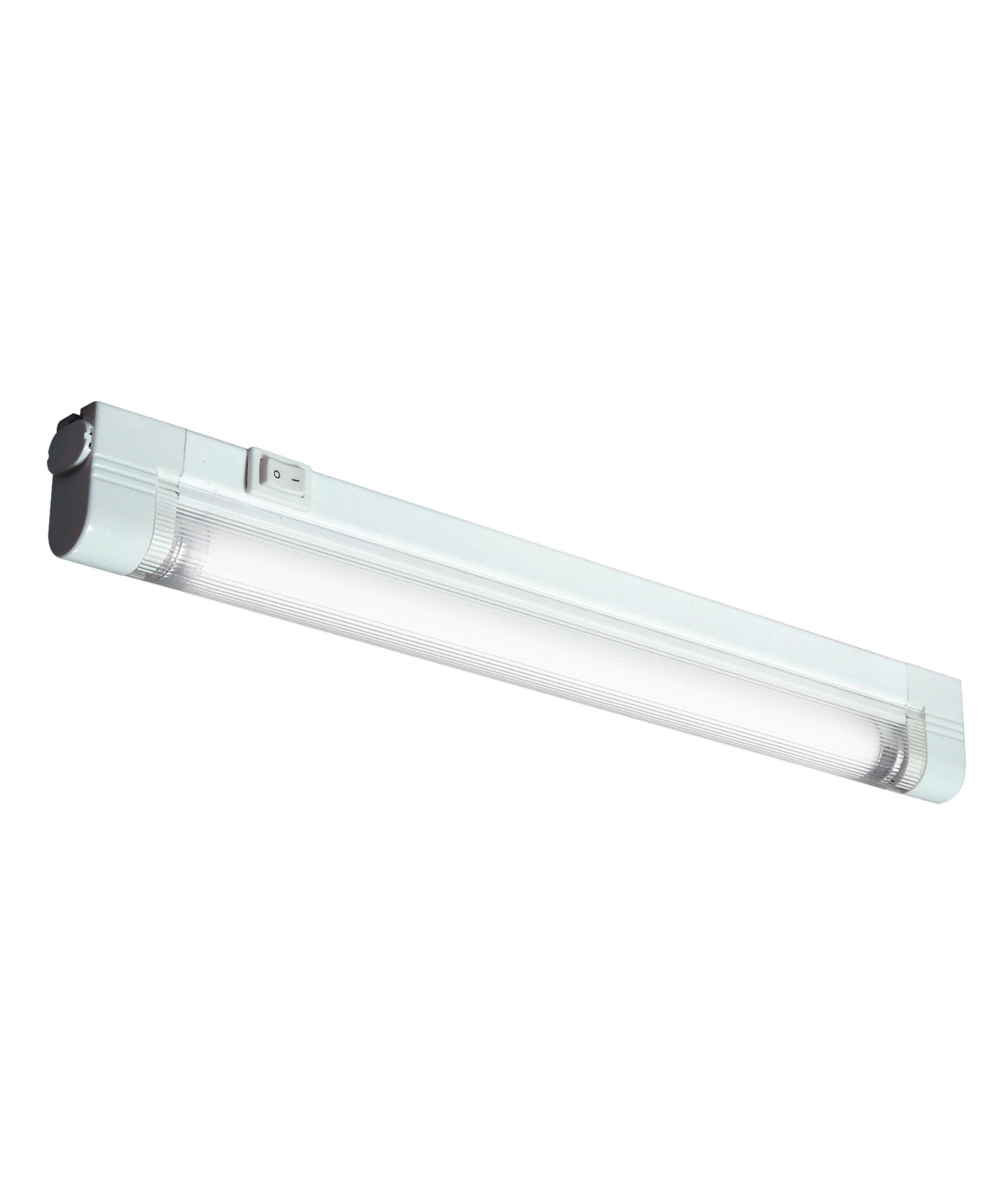

A neat simple little surface mounted under cabinet light, comes supplied with warm white tube, switch, diffuser and 2 metre mains lead.

Linkable via direct connections or if you prefer link leads (see link leads lengths and prices below).

Available in six lengths starting from 267mm up to 1500mm.

267mm batten takes 1 x 6w T5 lamp

343 mm batten takes 1 x 8w T5 lamp

604 mm batten takes 1 x 14w T5 lamp

904 mm batten takes 1 x 21w T5 lamp

1204 mm batten takes 1 x 28w T5 lamp

1500 mm batten takes 1 x 35w T5 lamp

Ideal for kitchen units, pelmets and bedroom furniture. Each fitting is has a small rocker switch allowing the lights to be independently turned on and off.

Comes complete with fluorescent lamp (3500k warm white) and 2000mm power cable.

Number Of Lamps1
Lamp TypeT5 Fluorescent
Part L Compliant LuminaireYes
Lamps IncludedYes
Dimmable?No
Width23mm
Height42mm
ConstructionPlastic - ABS
Wiring DetailsClass 2 - Double Insulated - Requires no Earth Connection
IP RatingIP20
PDF Document(s)View PDF

Hello, can these lights be dimmed?
This fixture is non dimmable.

Can you link the 1204mm T5 28w Slimline Fluorescent Battens with link leads?
Yes the fittings can be connected by link leads which can be purchased on the same listing.

Are these lights suitable for direct connection into a mains lighting circuit fused at 5 Amps.?
Yes this is a typical installation.

How long is the whole light including the connectors? I need to know an overall length including the push-in lead before the cable flex to see if it will fit under my kitchen cabinets.
When the power lead is inserted, the connector adds 40mm to the length, if you use a link cable the connector for this adds 46mm to the length

Can I buy longer power lead ? I though i saw an option when i ordered the lights but cannot find them. I need 1m long power lead
There is no option for a longer power lead. You can of course extend a lead with an extension lead - see the bottom of this listing.

Can these units be chained together by link leads, or do they each need a seperate feed from a junction box or plug.
Yes you can link these fittings together using link leads. Each fitting is supplied with a link lead.

Can these be wired in to electricity?
Er, yes they will require an electrical connection. The push in lead is normally wired into a fused spur however you can put on a three pin plug and operate via a wall socket if that suits your needs better.

Availability: IN STOCK 2-3 working day dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
MLT528
1204mm T5 28W Slimline Fluorescent Batten
£20.99
£17.49 exc VAT
MLT535
1500mm T5 35W Slimline Fluorescent Batten
£24.33
£20.28 exc VAT
MLT56
267 mm T5 6W Linkable Fluorescent Batten
£11.48
£9.57 exc VAT
MLT58
343mm T5 8W Slimline Fluorescent Batten
£12.15
£10.13 exc VAT
MLT514
604mm T5 14W Slimline Fluorescent Batten
£13.99
£11.66 exc VAT
MLT521
904mm T5 21W Slimline Fluorescent Batten
£16.49
£13.74 exc VAT
MLLC4
250mm Link Lead
£1.13
£0.94 exc VAT
MLLC5
500mm Link Lead
£1.48
£1.23 exc VAT
MLLC6
1030mm Link Lead
£1.75
£1.46 exc VAT
