Aluminium Fixed Baffle Downlight - Round or Square

Low Voltage & Low Glare

  • New In
Offers no protection from splashed or sprayed waterClass 3 - This fitting is low voltage and will require a transformer or driver.Yes, this product is dimmable - See the specifications tab for more detailsBulbs Not IncludedNo driver or transformer is supplied with this fixture (sold separately)

Product Ref: 4363

From £15.00 inc VAT

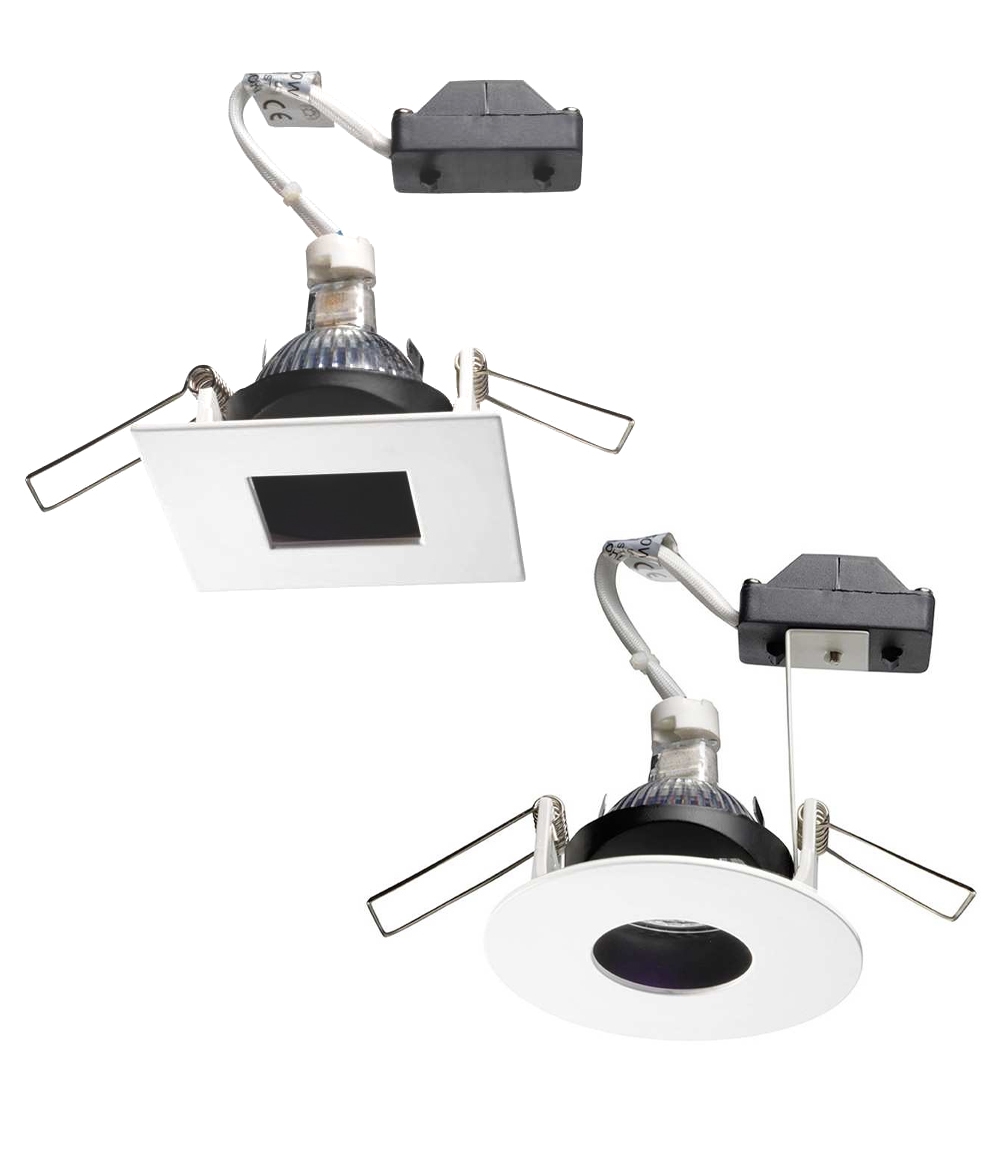

A fixed aluminium low voltage downlight with a white finish. The lamp housing is set back within the fitting and a black baffle is incorporated to reduce direct glare. Great for many applications, living or kitchen spaces for example.

Choose from round or square to suit your design requirements.

Dimensions

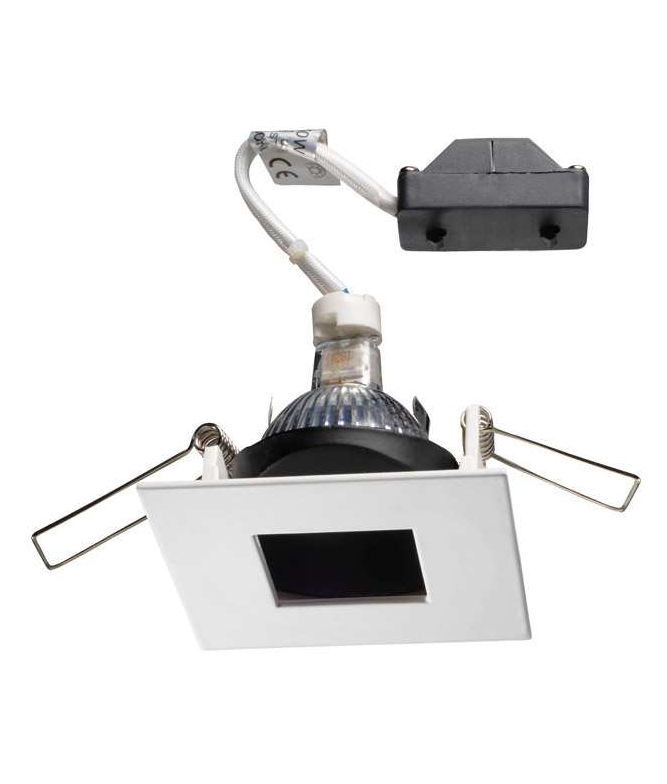

Square
82.5mm x 82.5mm

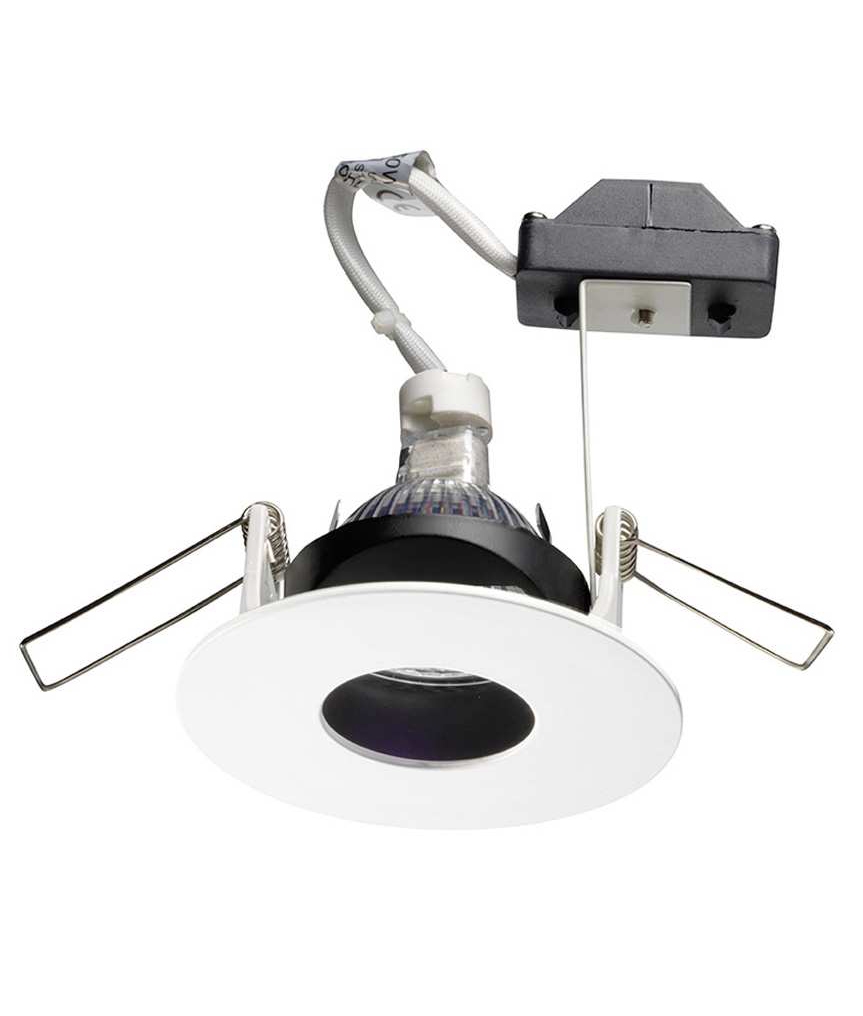

Round
88mm diameter

With the ability to told the lamp holder 40 degrees, you can change where your light is positioned.

Designed for use with a 12V low voltage 50 watt maximum halogen lamp.

A transformer is required and not supplied.

Cut-out Diameter:
74mm
Number Of Lamps1
Lamp TypeMR16 - 12v Halogen Reflector
Lamps IncludedNo
Dimmable?Yes - on trailing edge (reverse phase dimmers)
Max Wattage50w
Suggested Void Depth925mm
Cut-Out Diameter74mm
ConstructionCast Aluminium
Wiring DetailsClass 3 - Requires a low voltage supply
IP RatingIP20
DriverNo driver or transformer is supplied with this fixture (sold separately)
Availability: IN STOCK 5-7 day delivery from European warehouse
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
ESPDN16951400
Round Aluminium Fixed Baffle Downlight
£15.00
£12.50 exc VAT
ESPDN16961400
Square Aluminium Fixed Baffle Downlight
£15.00
£12.50 exc VAT
This product requires a driver or transformer - Suitable items can be found below
SAMET60R
60va 12v Transformer with Tails - Auto Reset
You save £0.71
£3.79
£3.16 exc VAT
