Elite HD 7w LED Fixed Fire Rated IP65 Downlight

Includes Dimmable LED Power Supply

Suitable for Zone 1 - protected from water jetsClass 2 – This fitting is double insulated and does not require an earth.Yes, this product is dimmable - See the specifications tab for more detailsSuitable for Bathroom Zones 1,2 and 3Bulbs IncludedIncludes remote driver/transformer suitable for 230 - 240v supply

Product Ref: 6238

From £44.33 inc VAT

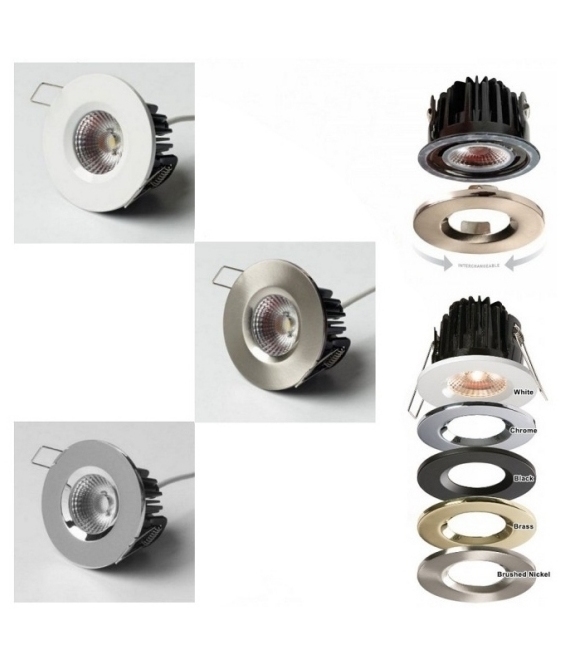

A 7w LED fire rated IP65 downlight available in a variety of colours or can be painted to suit your decor.

Finally the poor quality LED lights are disappearing from the wholesale market as end users and electrical contractors become more aware of the long term benefits of COB (chip on board) LED technology. Easy Low energy lighting - LED, fire rated and dimmable. Shallow installed depth of 70mm - great for tight spaces. Offered in 3000ºk and 4000ºk - warm white or cool white LED and push-fit wiring terminals for quick and easy installation

So put aside you preconceptions of LED downlights and look at this range of fantastic lights.

Brighter than a GU10 halogen
460 lumens (white) 490 lumens (neutral white)

Fire rated
Provides 90 minutes fire protection and was tested to BS 476 Part 23

Dimmable
Comes complete with a dimmable DC power supply. You just wire in the mains supply. We offer a dimmer module that will replace the dimmer inside your switch plate if your existing dimmer is incompatible. This will operate a single downlight or a larger quantity (max 20 units). This can be found at the bottom of this listing.

IP65 rated
Jet proof and can be used in any part of a bathroom ceiling

7 Year Guarantee
Register your installation on the website for a free extended warranty

Available with a 3 hour emergency pack
A plug in emergency pack, inverter with charge indicator. Better still... This fixture can be installed without the bezel making it easier to finish other trades i.e. painting so there no excuse for having emulsion on the light fixtures!

Plus...
38º beam angle, push in loop in/loop out wiring connector, pre-wired dimmable LED driver with push-fit connection, clips accommodate ceiling up to 30mm thick.



Converters?
The converter is a halo ring that sits around the fixture (note: you still need to buy a bezel) and allows this LED fixture to be used to cover larger holes in the ceiling. Its a quick and easy way to make replacing older downlights with holes up to 130mm in diameter.

Cut-out Diameter:
63mm
Overall Diameter:
80mm
Lamp TypeLong Life LED light source
Lumens Per Watt70
Part L Compliant LuminaireYes
Lamps IncludedYes
Dimmable?Yes - on standard dimmer
Max Wattage7w
Diameter80mm
Depth/Projection65mm
Suggested Void Depth75mm
Cut-Out Diameter63mm
ConstructionAluminium - Powder Coated
Wiring DetailsClass 2 - Double Insulated - Requires no Earth Connection
IP RatingIP65
DriverIncludes remote driver/transformer suitable for 230 - 240v supply
PDF Document(s)View PDF

I would like to use 4 of your 7w LED Fire Rated IP65 Downlights (FKMLfix) but require switchable maintained emergency on one unit. Is the Plug-in 3hr Emergency Pack – 7w LED (MLVFR7EM) capable of this?
Yes, the MLVFR7EM will be perfectly capable of this.

Availability: IN STOCK 2-3 working day dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
MLVFRCOBWW
Elite HD Warm White 7w COB LED Downlight & White Bezel
£44.33
£36.94 exc VAT
MLVFRCOBCW
Elite HD Cool White 7w COB LED Downlight & White Bezel
£44.33
£36.94 exc VAT

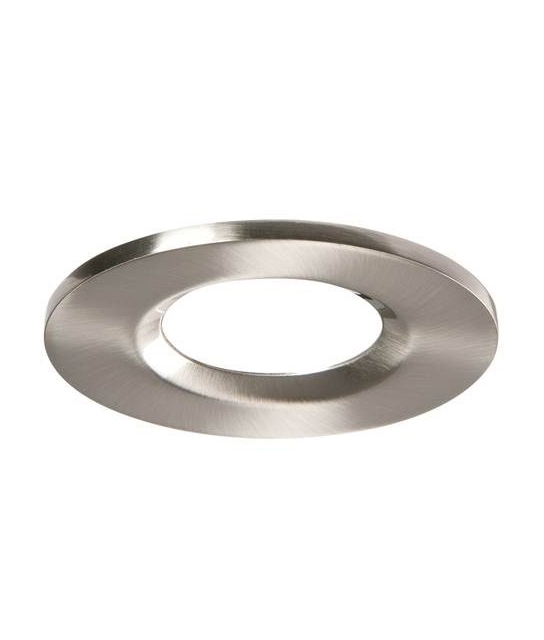

MLVFRBEZCBR
Round Brushed Chrome Bezel
£2.53
£2.11 exc VAT
MLVFRBEZBR
Round Polished Brass Bezel
£2.53
£2.11 exc VAT
MLVFRBEZCH
Round Polished Chrome Bezel
£2.53
£2.11 exc VAT

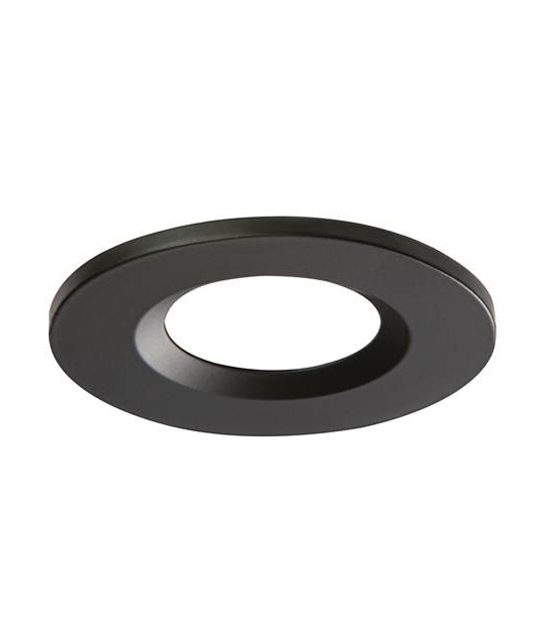

MLVFRBEZBK
Round Satin Black Bezel
£2.53
£2.11 exc VAT

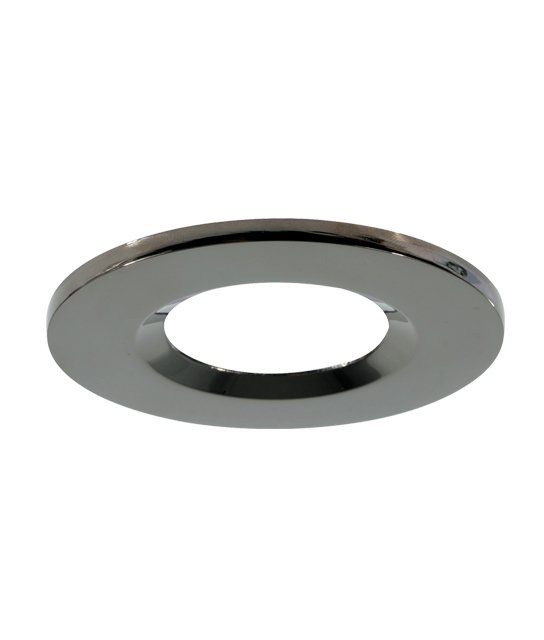

MLVFRBEZGM
Round Gun Metal Bezel
£2.53
£2.11 exc VAT
MLVFRBEZMW
Round Matt White Paintable Bezel
£2.53
£2.11 exc VAT
MLVFRCC
Large Polished Chrome Converter
£8.18
£6.82 exc VAT
MLVFRCBC
Large Brushed Chrome Converter
£8.18
£6.82 exc VAT
MLVFRCW
Large White Converter
£8.18
£6.82 exc VAT
